Replacement ATH-Heinl: Wire rope ATH H1, H2
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-LINA-0007
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

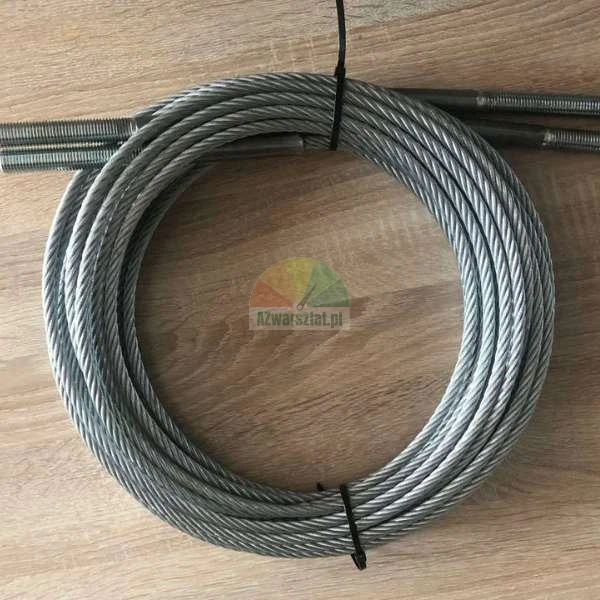

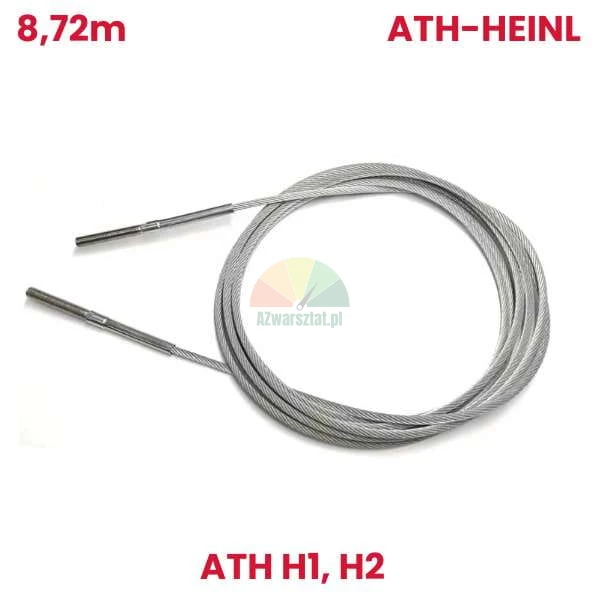

ATH-Heinl replacement: steel cable ATH H1, H2 - 8.72 m
High-quality steel cable replacement for ATH-Heinl two-post lifts, models H1 and H2. The cable is made of galvanised steel and ensures safe, synchronised lifting and long, trouble-free operation under workshop conditions.
The replacement is fully compatible with the original ATH-Heinl solutions - the ideal choice for service shops and workshops looking for proven and economical spare parts.
Application:
- ATH-Heinl H1 two-post lifts
- ATH-Heinl two-post lift ATH-Heinl H2 (cable length 8.72 m or 8.94 m - depending on version).
Before purchasing, measure the length of the existing cable without dismantling it. Use a flexible cord and run it along the installed cable - from start to finish. The result will allow you to select the correct length: 8.52 m, 8.72 m or 8.94 m.
Technical data:
- Length: 8.72 m
- Material: galvanised steel

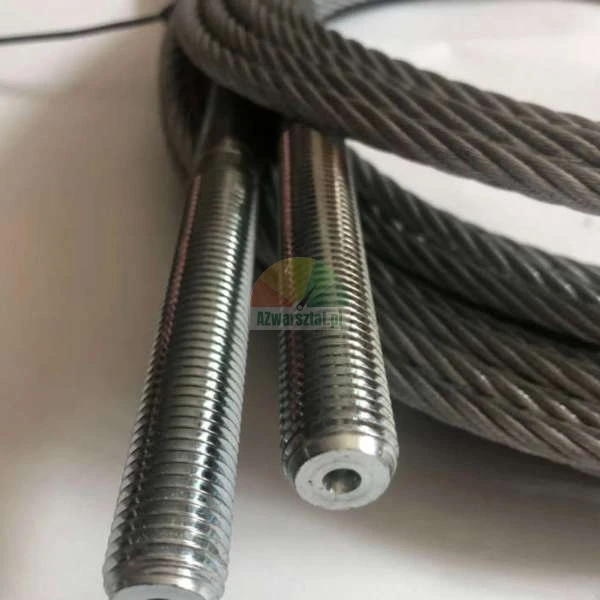

- Terminations: M16 threaded crimps
- Function: to ensure synchronisation
Quality certificates available on request - confirming compliance with safety and durability standards. The above product meets all the requirements of the Machinery Directive 2006/42/EC and the harmonised standards and other technical specifications EN ISO 12100.
Why is it worth it?
- Precision fit for ATH-Heinl H1 and H2 models
- High-quality workmanship - corrosion-resistant galvanised steel
- Safe and durable in everyday workshop use
- Savings compared to original parts
With these replacements you will keep your lifts in full working order, ensuring efficiency, safety and continuity in your workshop. We recommend regular inspection of the lifting equipment by a competent person, in accordance with applicable regulations and EN ISO 9927-1.
Interesting fact: ATH-Heinl lift models in the Comfort series, such as the ATH 2.28 H3, ATH 2.32 H3, ATH 2.35 H3 and ATH 2.40 H3, are very popular with professional workshops - we also offer steel cables compatible with these models.
Do you have any questions? Contact our technical department - we will help you find the right part for your lift model.
Product safety
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
It pairs well
Do you need help?
Go to the blog.
Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.
Frequently Asked Questions
What cables do I need for my two-post lift?
Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.
Additionally, to correctly select the rope, you need to provide the following technical parameters:
- Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
- Thread – diameter (e.g., M16)
- Thread – length – length of the threaded section (e.g., 14 cm)

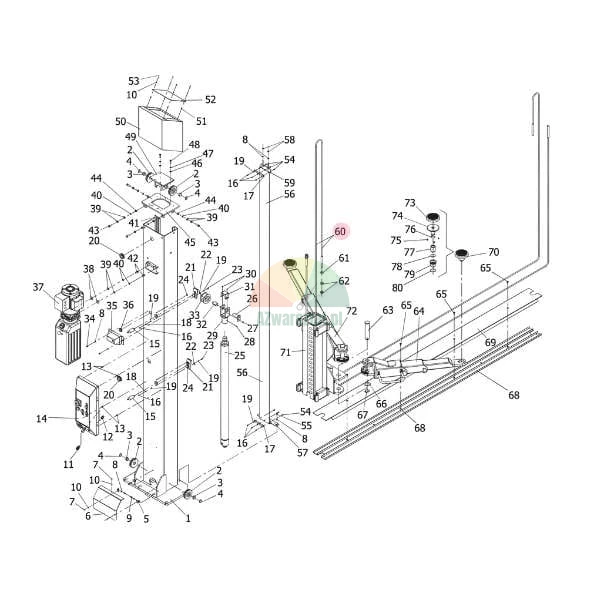

The drawing below shows the parameters that must be provided when ordering the rope:
What is my machine's model?
- Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
- If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.
