Replacement ATH-Heinl: steel cable ATH-Comfort XL (21) (11.5m replacement)

Secure payment

30 days to return

Fast shipping

€93.05

Shipping costs are not included in the price.

Quantity

pc.

Shipping time: 24 hours

Ask about the product

Why us?

Only real product reviews.
Secure online payments.
Hassle-free returns within 14 days.
A reliable company - we have been on the market for many years.

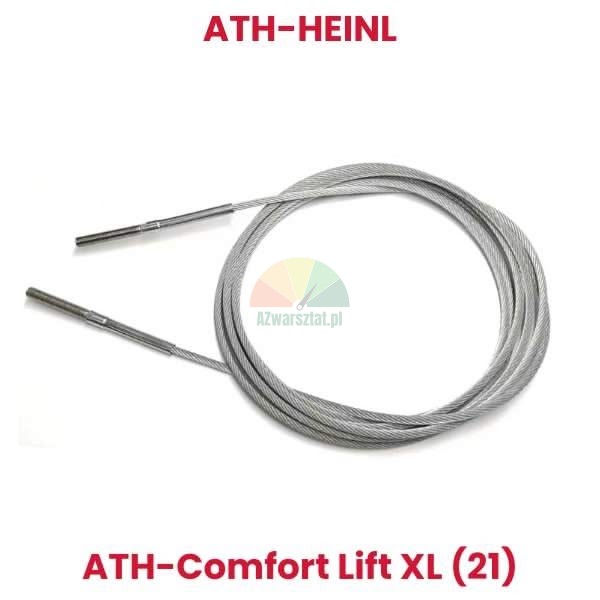

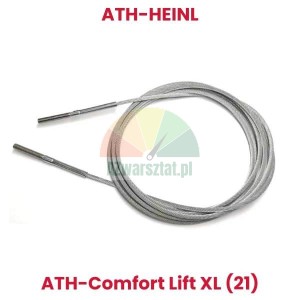

Comfort XL synchronisation cable (21) (replacement)

The Comfort XL (21) synchronisation cable is a high quality replacement part for the ATH-COMFORT and Comfort Lift 2.xx XL series of two-post vehicle lifts manufactured after 2021 – top-connected version. The product has been designed for precise and safe operation of the lifting mechanism, ensuring even lifting of both lift columns.

Important information: The product is certified and meets all the requirements of the Machinery Directive 2006/42/EC and the harmonised standards and other technical specifications EN ISO 12100.

Product specifications:

Lift model: ATH-COMFORT, Comfort Lift 2.xx XL
Part number: 21
Cable length: 11.5 m
Material: high-strength steel

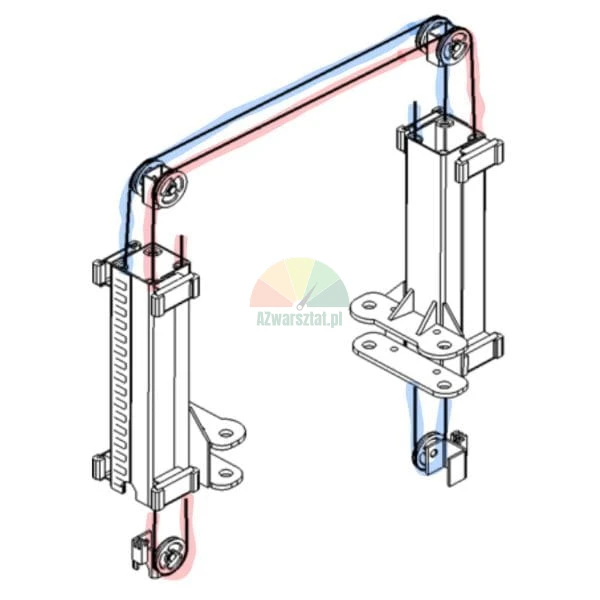

The synchronisation cable is responsible for the precise synchronisation of the movement of the lift columns, ensuring safe and reliable operation. It is compatible with models manufactured from 2021 onwards.

Key features and benefits:

High strength and resistance to tension and wear.
Precise synchronisation of the movement of the lift columns.
Easy installation thanks to its precise design.
Compatible with original ATH-COMFORT and Comfort Lift series lifts.
Ideal as a replacement for original synchronisation cables.

Purchasing this synchronisation cable ensures trouble-free and safe operation of your vehicle lift. The perfect solution for vehicle workshops looking for durable and reliable spare parts.

Application:

The synchronisation cable is a key component of two-post lifts, ensuring even operation of the lifting mechanism. Dedicated to models in the ATH-COMFORT and Comfort Lift 2.xx XL series.

Dimensions and fit:

The product has been designed in accordance with the original technical specifications, guaranteeing a perfect fit for the lift.

For safe operation, the lifting equipment should undergo regular inspection by a competent person, in accordance with applicable regulations and EN ISO 9927-1.

If you have any questions or require further information, please contact our customer service team.

Manufacturer

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

+48534920100 slawek@graf-art.pl

Responsible person in the EU

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

534920100 slawek@graf-art.pl

Number of ratings: 0

Rate and review

Security

You can feel completely safe when shopping in our online store.

Check

Delivery

Fast delivery via DPD. Your package will arrive within 3 days.

Check

Payment

Among the various payment methods, choose the best option for yourself.

Check

Technical consulting

Ask our specialist. We'll help.

shop@azworkshop.eu

Free shipping

Free shipping for purchases of 50€ or more.

Do you need help?

We are here to make your choice easier and speed up the repair.

Module informational graphic — Want to know more? Check out our knowledge base.
**Go to the blog.**

Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.

📞 Call or send a message—we'll recommend the best solution:

+48 534 920 100

Call charges according to your operator's rates.

Frequently Asked Questions

What cables do I need for my two-post lift?

Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.

Additionally, to correctly select the rope, you need to provide the following technical parameters:

Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
Thread – diameter (e.g., M16)
Thread – length – length of the threaded section (e.g., 14 cm)

The drawing below shows the parameters that must be provided when ordering the rope:
Ropes parameter

What is my machine's model?

Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.

Can I return or exchange the part if it doesn't fit?

Yes, of course.

If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.

For the return to be accepted, the part must:

be unused and undamaged,
show no signs of installation,
be sent back in its original or appropriately secured packaging.

We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
