Lowering valve (19cm thread) TYPE B
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-ZAWO-0001
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
Lowering valve P-ZAWO-0001
The lowering valve P-ZAWO-0001 is a precisely manufactured control component, dedicated to vehicle lifts. This high quality component is characterised by its robust construction and accurate workmanship.
Technical specifications
- Overall length: 94 mm
- Stem diameter: 13 mm
- Main nut size: 24 mm
- Connection thread: 19 mm
- Working section length: 33 mm
Product features
Design
The valve is made from high-grade steel, ensuring long-lasting durability and reliable operation. The precision-made thread and chrome-plated surface guarantee smooth operation and corrosion resistance.
Application
Ideal as a spare part for B-type hydraulic jacks, ensuring controlled and safe lowering of the work platform. The element is a key component of the hydraulic system, responsible for precise lowering control.
Compatibility

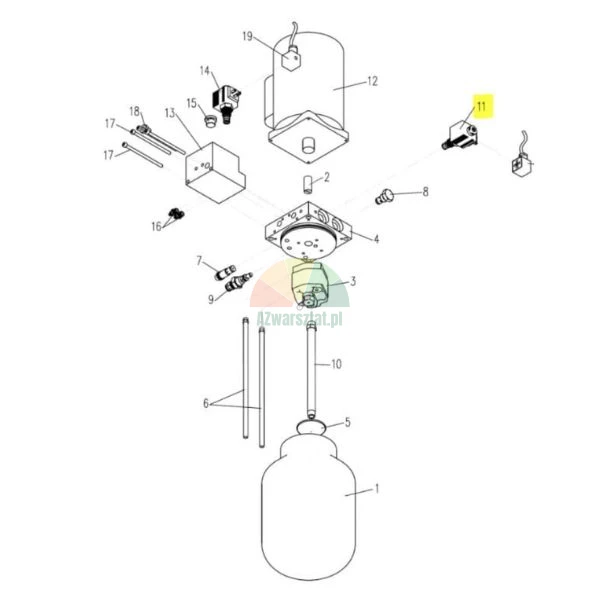

The valve is fully compatible with the majority of professional workshop jacks used in vehicle repair shops, and is the component marked as position 11 in the assembly diagram of the machine.
Assembly
Installation of the valve is simple and intuitive thanks to its standard 19 mm thread. Precisely manufactured components guarantee a tight connection and trouble-free operation.
Product safety
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Importer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
