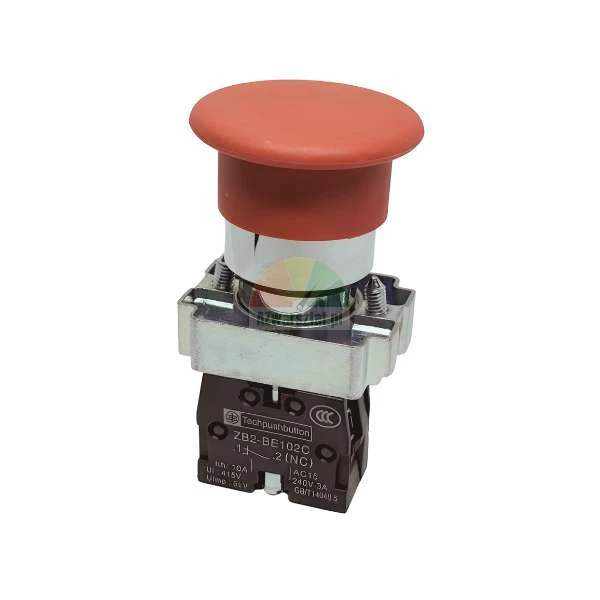

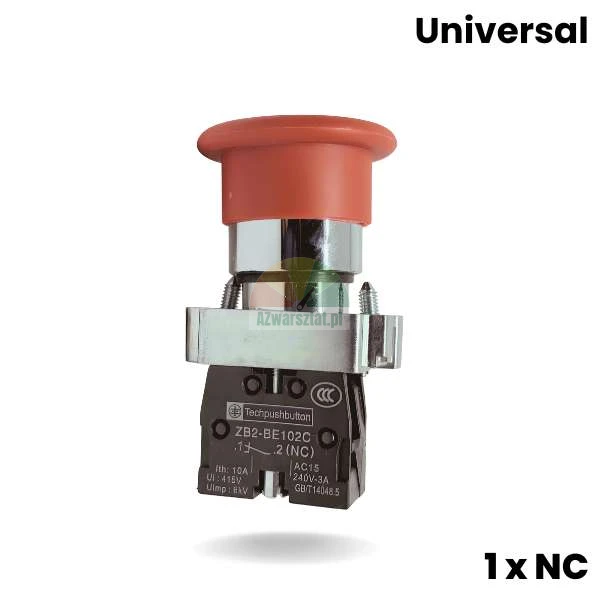

Red metal mushroom-head pushbutton (1NC)
This high-quality mushroom-type control button (1NC) is an essential component of control and safety systems in professional workshop machinery. This product is ideal as a reliable spare part for car lifts, tyre changers and wheel balancers.

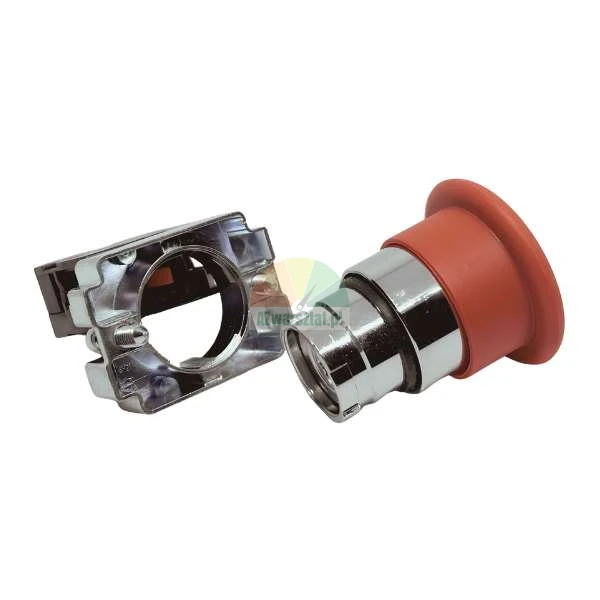

Robust metal construction! This model features a metal mounting body, which guarantees exceptional resistance to mechanical damage and severe vibrations typical of a heavy-duty workshop environment.
Technical specifications of the contact block:
- Model: Techpushbutton ZB2-BE102C

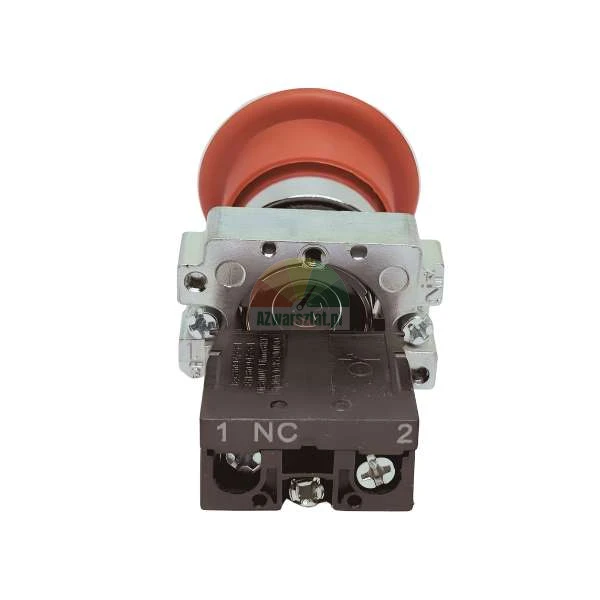

- Contact type: 1 NC (normally closed contact)
- Thermal current (Ith): 10A
- Insulation voltage (Ui): 415V
- Impulse voltage (Uimp): 6 kV
- Duty category: AC15 (240V – 3A)
- Standard: GB/T14048.5
Physical dimensions:
- Head (disc) diameter: 40 mm
- Flange sleeve diameter: 30 mm
- Total button height: 72 mm
- Contact module height: 35 mm
Reliability in workshop equipment
Thanks to its ergonomic 40 mm diameter head in a distinctive matt red colour, the pushbutton is highly visible, enabling an immediate response from the operator. The integrated 1NC contact means this pushbutton is most commonly used to break the circuit in safety applications and as a stop button. By choosing parts from our range, you are investing in the stable and safe operation of equipment in your workshop.
Product safety
Manufacturer
Jin Hoi International Trading Ltd
Office Tower 625 and 639 Nathan Rd
Rm1101-02.11 Hong Kong, China
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Importer
LIVRE RAPIDEMENT SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Osiedle Mieszka I-go 4/46
26-340 Drzewica, Poland
