Air distributor (deflector pedal), type E
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-ROZD-0001
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

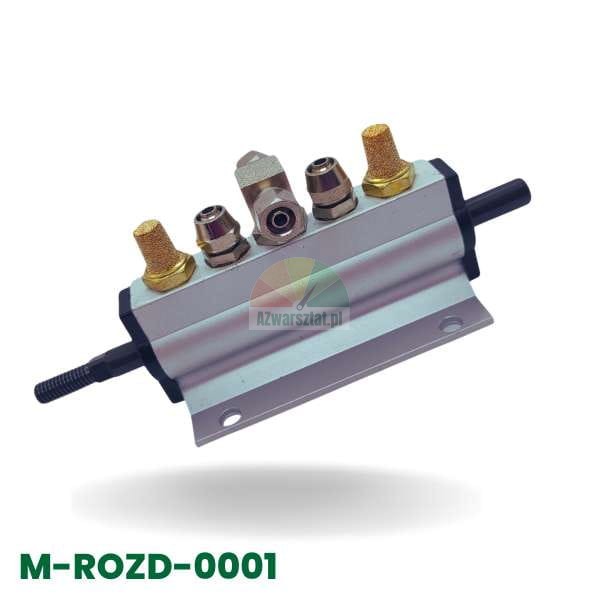

Air Distributor (Bouncer Pedal) – Type E
Restore your tyre changer to full working order with our high-quality air distributor. This tyre bead breaker pedal valve (Type E) is the central pneumatic component of the machine, directly responsible for the stable and rapid control of the bead breaker cylinder.
An essential component of any professional tyre repair workshop. The robust aluminium body guarantees a long service life and 100 per cent system tightness, even during daily, very intensive use of the machine.
Detailed Technical Specifications and Dimensions

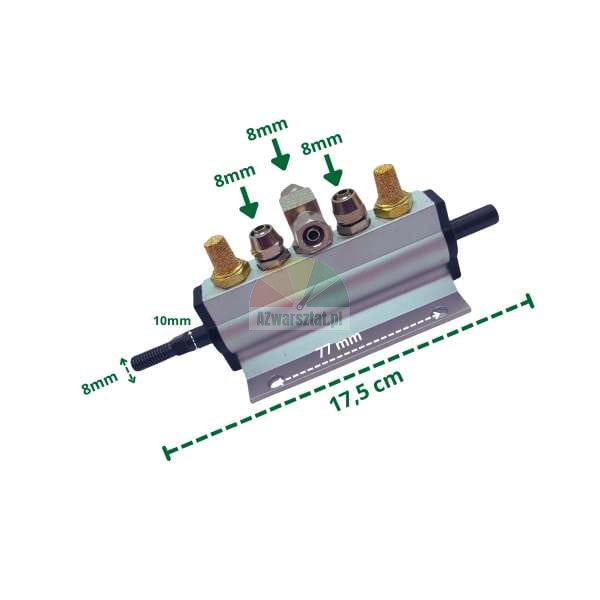

To ensure that the part is fully compatible with your machine, please refer to the technical specifications below. These correspond exactly to the dimensions shown in the photographic diagram:
- Total length of the distributor: 17.5 cm
- Spacing between mounting holes: 77 mm
- Side pneumatic connections (quick-connect fittings): 2 x 10 mm
- Central pneumatic connections: 2 × 8 mm
- Diameter of the smooth section of the spindle: 10 mm
- Thread at the end of the spindle: 8 mm
Our product is supplied ready for installation. It features pre-fitted noise dampers (copper sintered blocks) which effectively reduce the noise of escaping air, significantly improving acoustic comfort in the workshop. Modern and easy-to-use quick-connect couplings allow pneumatic hoses to be connected in an instant without the need for additional tools or sealing tape.
Thanks to its standardised design, the Type E manifold is compatible with the vast majority of popular tyre changers available on the market. Order today from AZ Warsztat and ensure your equipment runs smoothly and reliably!
