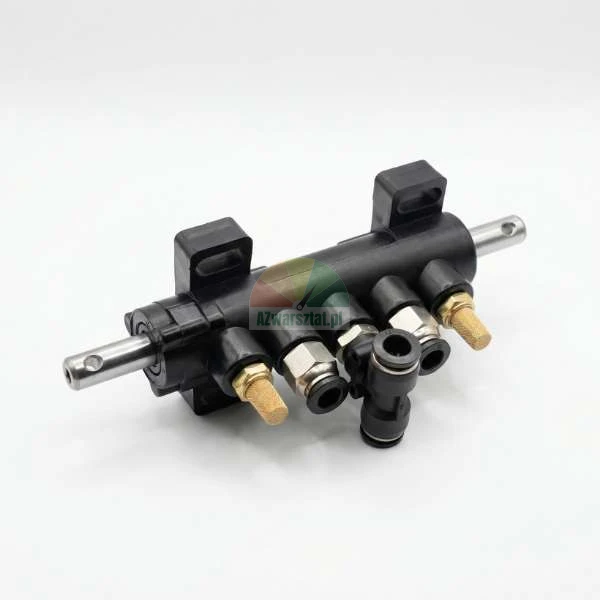

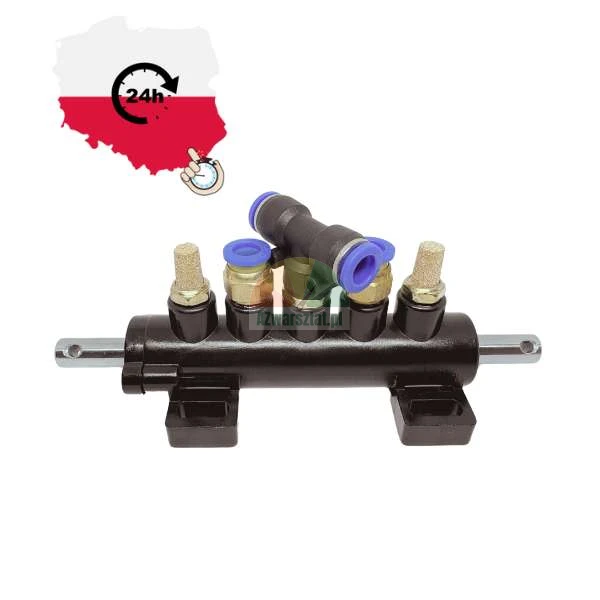

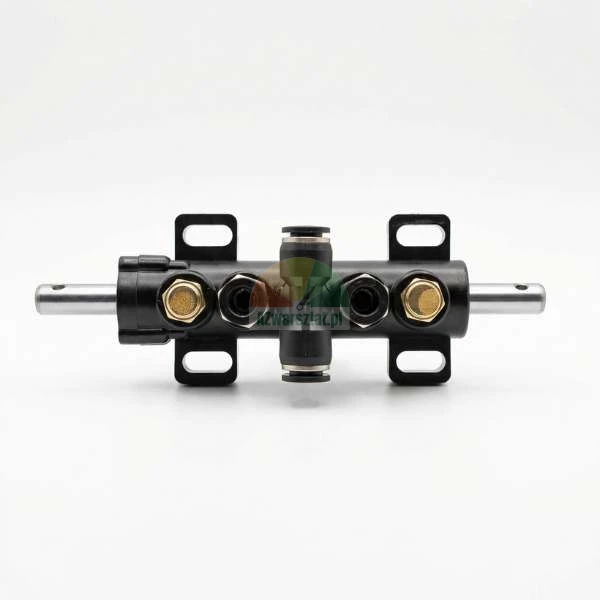

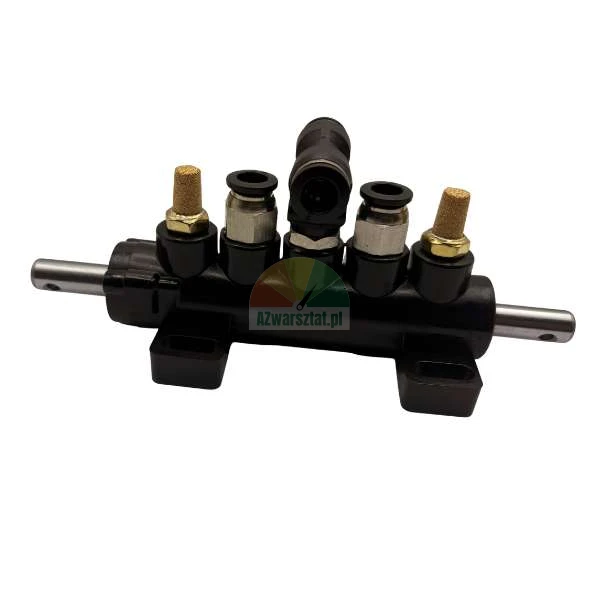

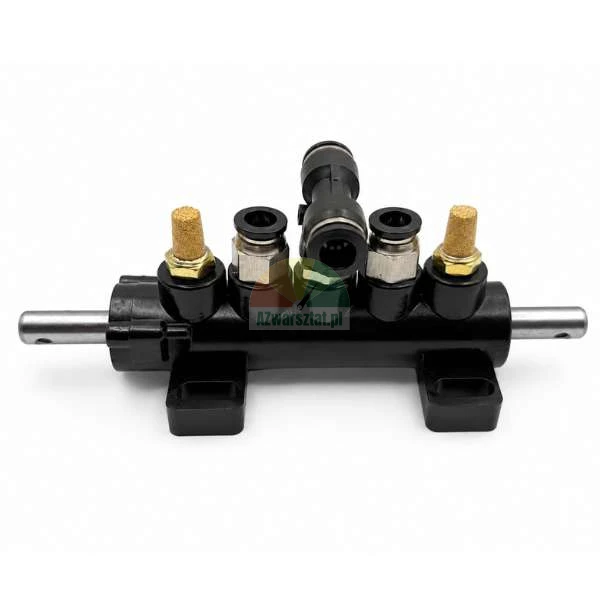

Valve block - pedal air distributor Type D
The Type D valve block is a reliable and robust air manifold mounted at the control pedal on pneumatic equipment. Designed for intensive use on tyre changers, it ensures precise and efficient management of the air flow in the system.
Compact, durable and easy to install - the ideal choice for professional garages and vehicle service workshops.
Key features and benefits:
- High build quality - metal construction resistant to mechanical damage
- 4 air outlets with quick-release couplings for 8 mm diameter pneumatic hoses
- Built-in noise dampers - quiet operation of the unit
- Easy assembly - fastening holes enable fast and stable mounting
- Versatile - compatible with many workshop machine models
- Precise air flow control - increases productivity and efficiency
- Optimisation of running costs - better air management reduces energy consumption
Technical dimensions:
- Overall length: 15.8 cm
- Body length: 11 cm
- Mounting hole spacing: 9.3 cm
- Width of mounting base: 2.2 cm
- Mounting hole diameter (on stem): 10 mm
- Pneumatic connection diameter: 8 mm
Application:
The Type D air manifold is used in pneumatic systems where separation of air into several sections is required - e.g. to control actuators, valves or other components. It is ideal for use in tyre service workshops, car service workshops and industrial plants.
Thanks to its functionality and durability, the Type D valve block is an indispensable component in any professional workshop.
Product code: M-ROZD-0011
