Valve block - pedal air distributor Type E
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-ROZD-0012
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

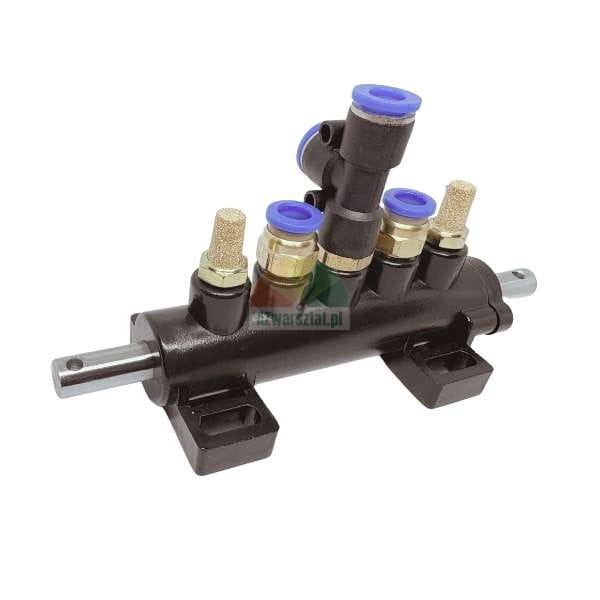

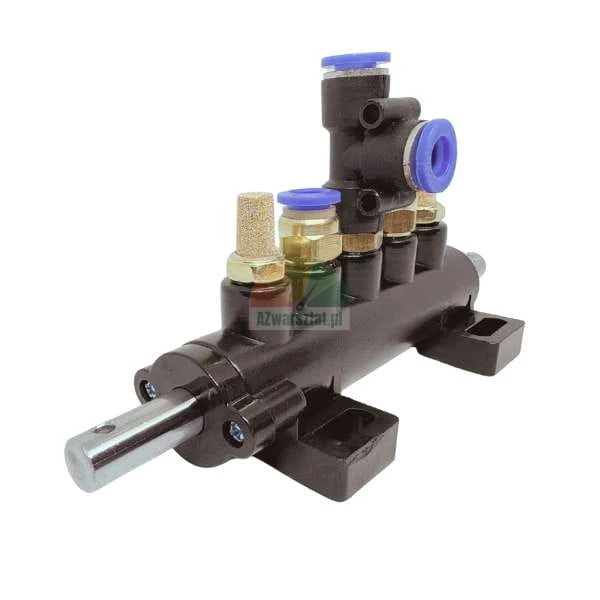

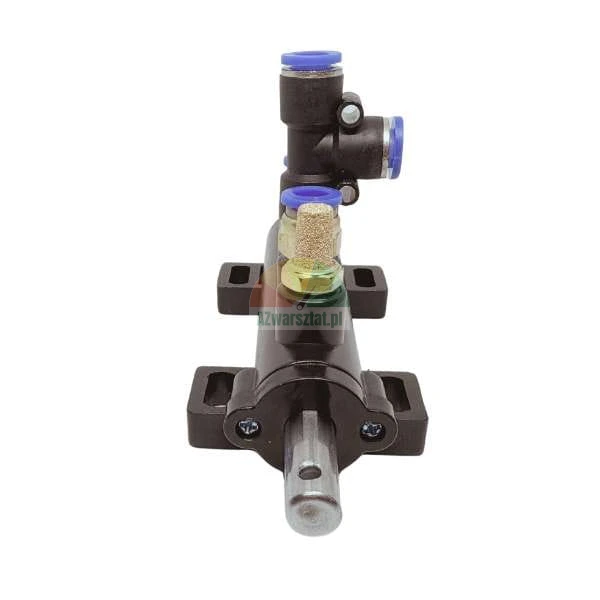

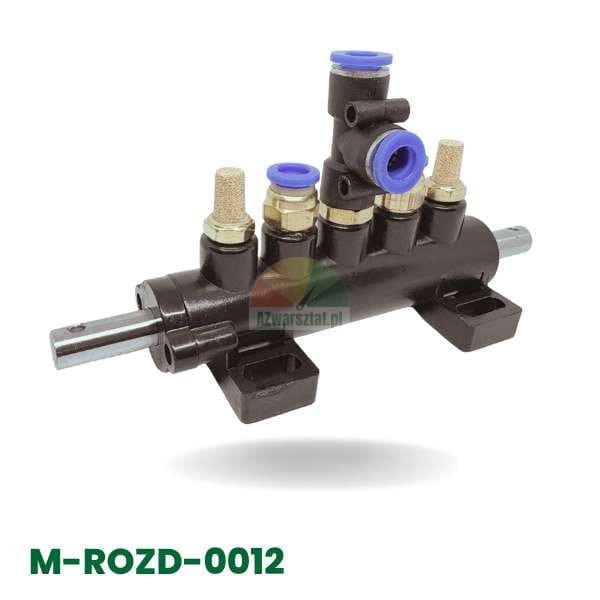

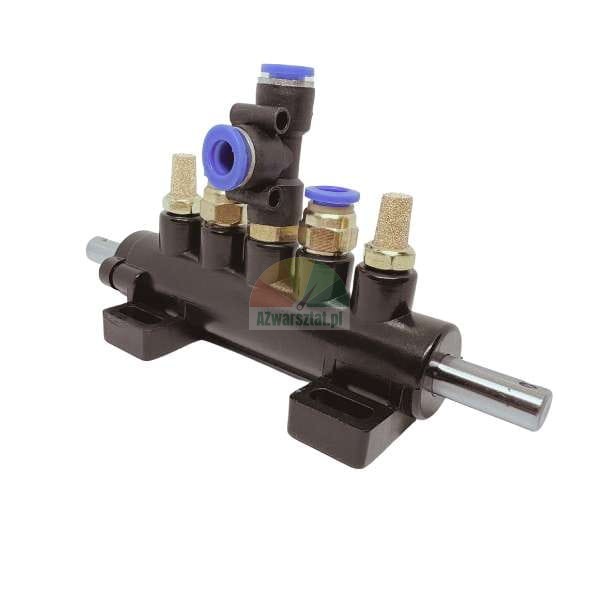

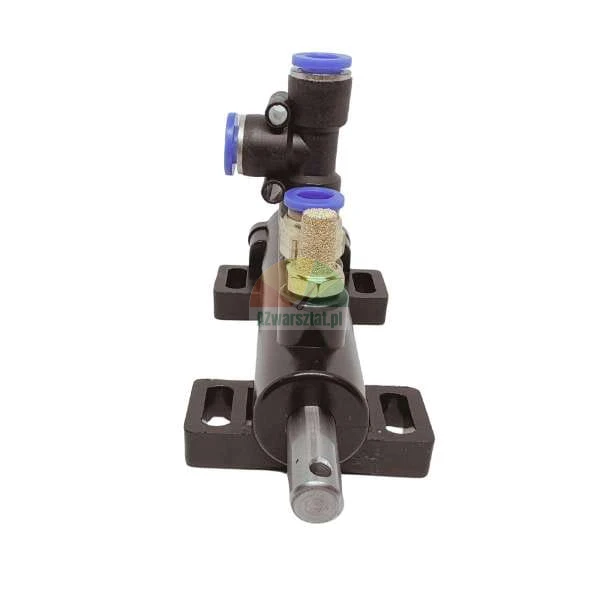

Valve Block - Pedal Air Manifold Type E
Valve block Type E is a reliable pedal-mounted air distributor for tyre changers, wheel balancers and pneumatic jacks. It is responsible for the precise routing of compressed air to the appropriate sections of the machine for proper operation and safety.
Compatible with many models of workshop machines - ideal as a spare part for quick repair and maintenance.
Product highlights:
- Type E - optimised for use with pneumatic systems on workshop equipment
- Pedal-mounted - quick access and easy operation
- Robust metal construction - resistant to mechanical damage and corrosion
- High quality construction - ensures long service life and reliability
- Easy installation - quick assembly without the use of special tools

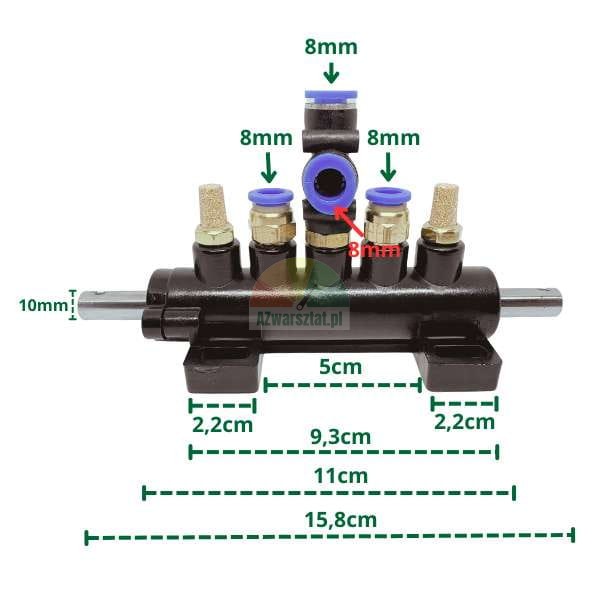

Technical specifications:
- Overall length: 15.8 cm
- Mounting hole spacing: 11 cm
- Base spacing (internal): 9.3 cm
- Base width (single): 2.2 cm

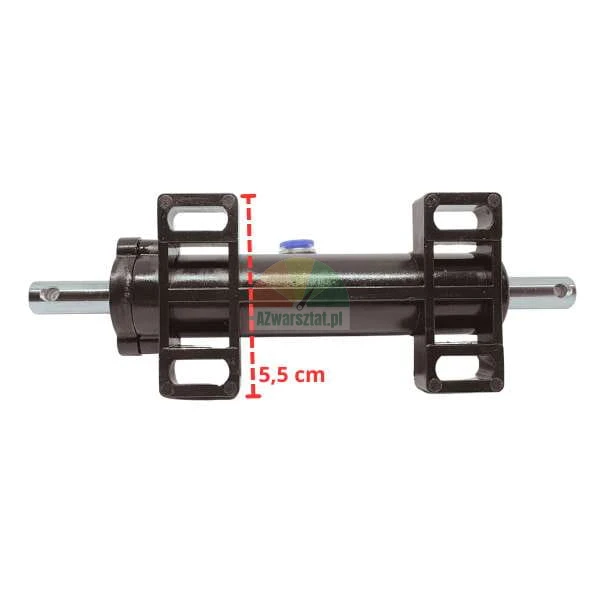

- Distance between mounting brackets: 5 cm
- Diameter of connectors: 8 mm
- Axle diameter: 10 mm
Thanks to the 8 mm diameter quick-release couplings, the manifold allows quick and trouble-free connection of pneumatic hoses.
Product catalogue reference: M-ROZD-0012
Why choose this product?
Replacing a faulty air manifold allows you to restore the full functionality of your machine and ensure its safe operation. This is a proven spare part that will meet the expectations of both professional workshops and smaller service stations.
