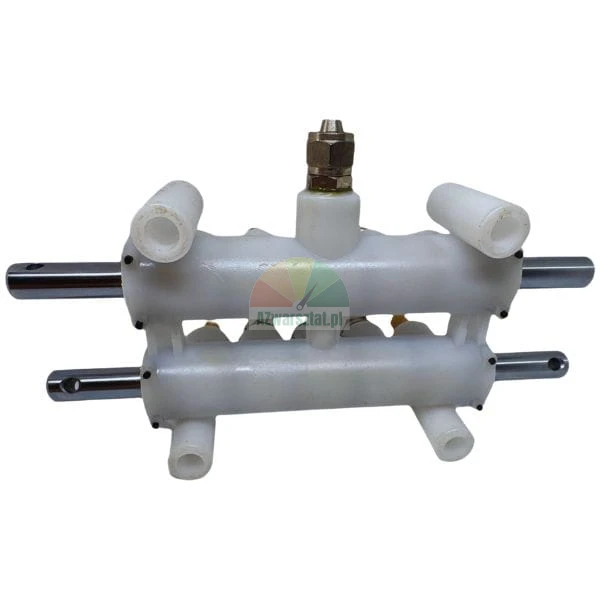

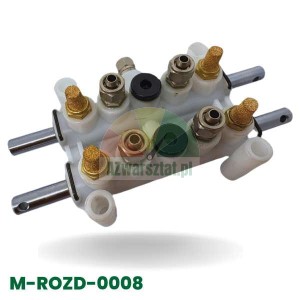

Valve block – air distributor (white) type D

This high-quality pneumatic valve block (type D) is an essential component of the pneumatic system in professional tyre changers. The robust plastic construction and precision-machined steel pins ensure reliable, leak-free and smooth machine control in any tyre workshop.

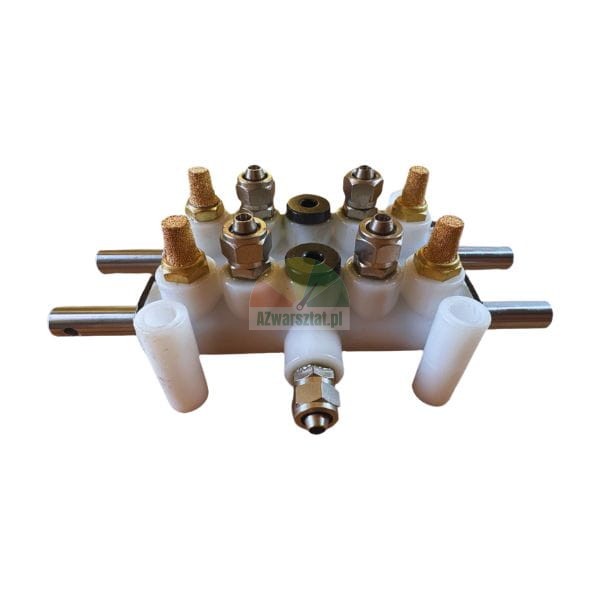

Important information: The air manifold shown is fully assembled and ready for immediate use. It features factory-fitted brass noise dampers (sintered) and push-fit connectors precisely matched to pneumatic hoses with an outer diameter of 8 mm.

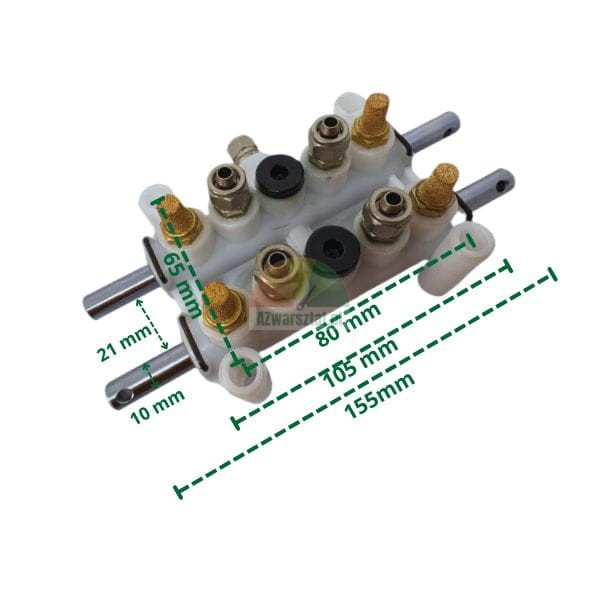

Detailed technical specifications:

Pneumatic hose connectors: 8 mm
Thickness of steel pins (sliders): 10 mm
Total block length: 155 mm
Spacing between mounting holes: 105 mm and 80 mm
Spacing between pin centres: 65 mm
Distance from the centre of the mounting hole to the centre of the pin: 21 mm

Thanks to its standardised dimensions, this air distributor is versatile and fits perfectly with many popular tyre changer models available on the market. It instantly solves air leakage problems and restores the equipment to full working order.
