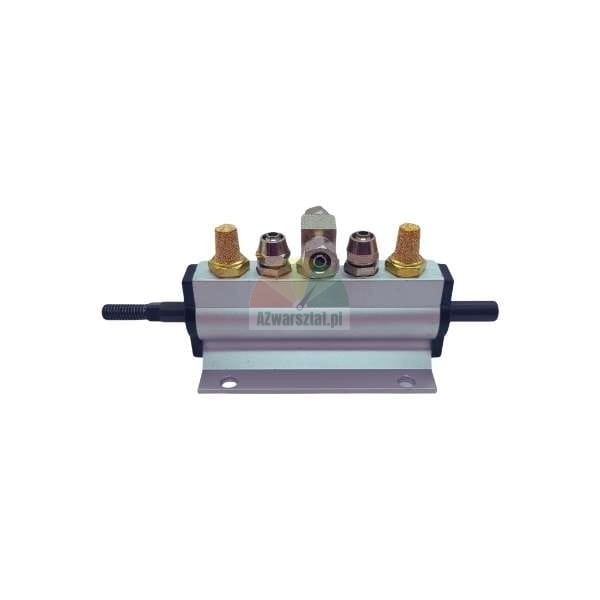

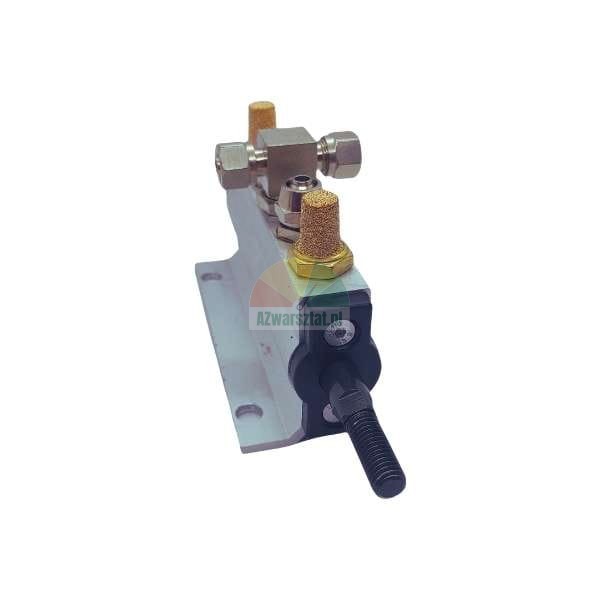

Pedal Air Manifold - Type I
The Pedal Air Manifold - Type I is a reliable component of the pneumatic system used on tyre changers. Its purpose is to precisely control the flow of compressed air between the cylinders and other consumers during machine operation.

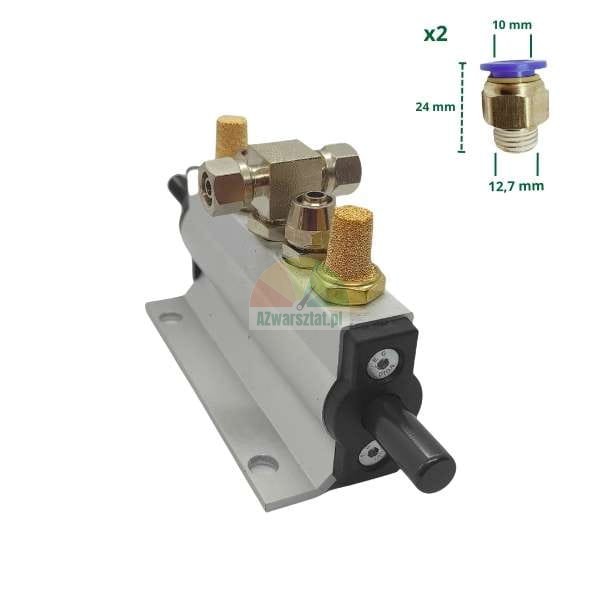

Thanks to its robust construction and simple design, the manifold ensures high tightness and resistance to intensive use. Two interchangeable connectors for 10 mm diameter pneumatic hoses are included, making it easy to install and adapt to different installation configurations.
Key features:
- Simple and durable design - easy to install and service.
- High reliability - ideal for continuous use.
- Universal application - compatible with many types of workshop machinery.
- Interchangeable connectors - allow quick connection of pneumatic hoses.
The manifold is used not only in workshop equipment, but also in industrial machines such as printing machines or automation systems where precision and efficiency are important.
Technical specifications:
- Type: pedal air manifold - Type I
- Overall length: 17.5 cm
- Mounting hole spacing: 77 mm

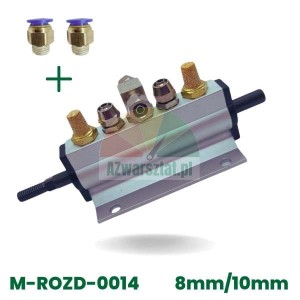

- Product model: M-ROZD-0014
- Compatibility: 8 mm and 10 mm pneumatic hoses
The ideal choice for tyre service centres, garages and industrial plants that require reliability, easy handling and compatibility with common pneumatic systems.
