Valve block by the pedal – complete, aluminium type F
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-ROZD-0002
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

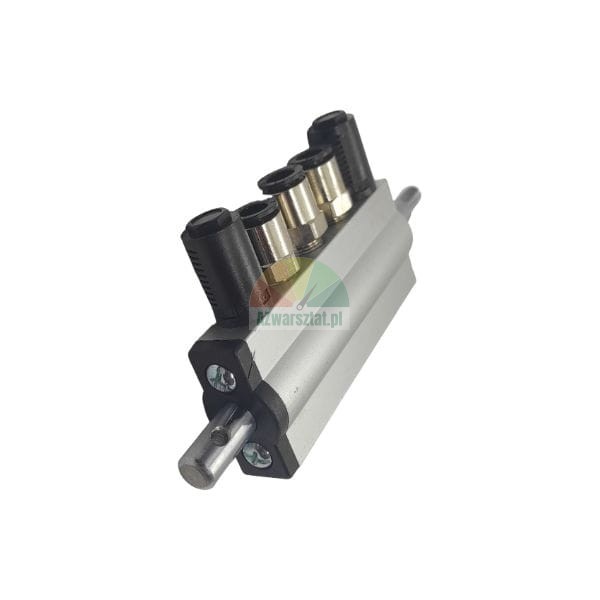

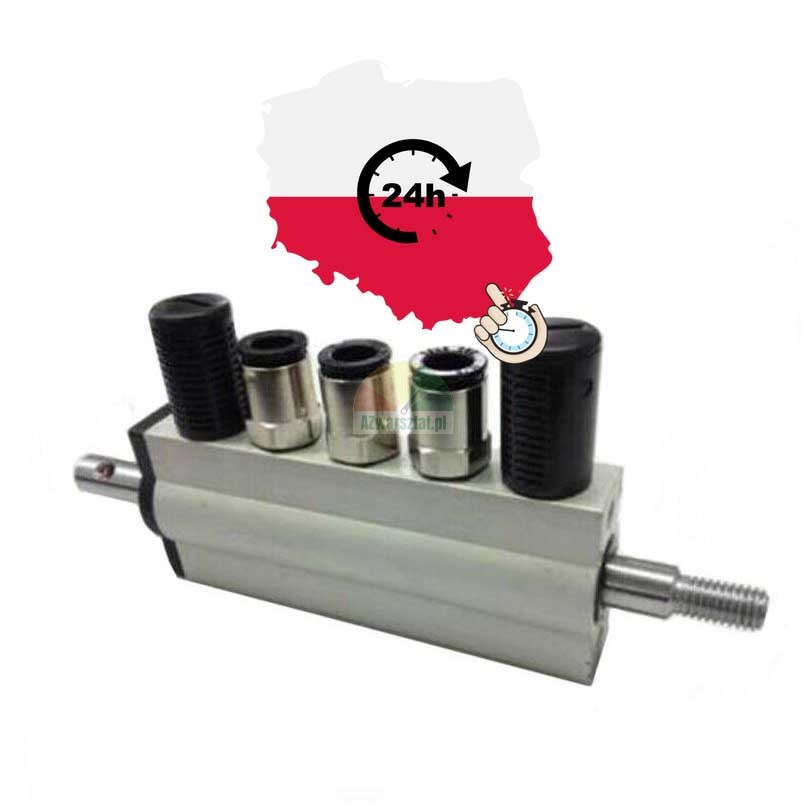

Pedal-mounted valve block – complete, aluminium type F
Ensure your machine operates at peak efficiency with our new, complete valve block. The pedal-mounted valve block (pneumatic manifold) we offer is a key component of the pneumatic system, designed specifically for professional tyre repair workshops. Made from high-quality aluminium, it ensures a long service life, leak-tightness and high resistance to the harsh working conditions found in a workshop.
Why choose this model? The aluminium body offers significantly greater resistance to mechanical damage compared to plastic equivalents. The complete set includes pre-fitted pneumatic fittings and noise dampers – it is ready for installation straight out of the box!

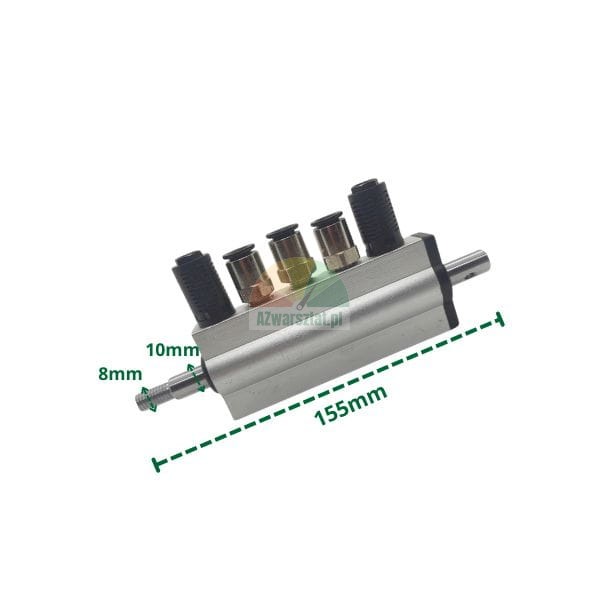

Technical specifications and dimensions (as per the drawing)
- Total body length: 155 mm
- Pneumatic connections: 3x quick-connect fittings suitable for hoses with an outer diameter of 8 mm
- Working shank dimensions: the smooth guide shaft has a diameter of 10 mm; the tip has an 8 mm thread

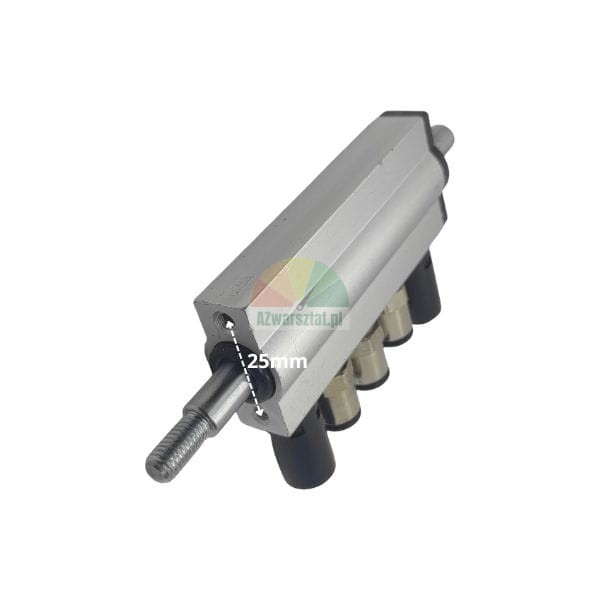

- Spacing between mounting holes: 25 mm (measured from centre to centre of the holes)
- Material: durable aluminium
- Noise dampers: 2 black dampers pre-fitted, included in the set
Application and compatibility
This product is an ideal replacement part for tyre-changing machines, such as tyre changers. The F-type five-way pneumatic manifold controls the flow of compressed air via a foot pedal, ensuring smooth and trouble-free operation of the table and bead breaker actuators. Thanks to its universal connectors (8 mm) and standard spacing, this valve fits most popular machines available on the market.
Order today at azworkshop.eu and restore your equipment to full reliability, minimising downtime in your workshop!
