ATH-Heinl replacement: solenoid with lowering valve 24 DC H1, H3, Comfort Lift, Single Post Lift, Bike Lift

Secure payment

30 days to return

Fast shipping

€107.07

Shipping costs are not included in the price.

Quantity

pc.

Shipping time: 24 hours

Ask about the product

Why us?

Only real product reviews.
Secure online payments.
Hassle-free returns within 14 days.
A reliable company - we have been on the market for many years.

Solenoid with Lowering Valve 24V DC - Replacement for ATH-Heinl

High-quality replacement solenoid with 24V DC lowering valve for ATH-Heinl vehicle lifts. The product provides precise control of the lowering speed of the lift arms, resulting in greater safety and convenience in the workshop.

Compatible with models: H1, H3, Comfort Lift, Single Post Lift, Bike Lift. Fits without the need for modifications - quick and hassle-free installation.

Key features and benefits:

Precise lowering adjustment - increases safety when working with the lift
Robust construction - made of durable materials (plastic + metal)
Highly resistant - IP65 rating (dust and water resistant)
Trouble-free compatibility - ideal for many ATH models
Cost-effective - more affordable alternative to the original part without compromising on quality

Technical specifications:

Voltage rating: 24V DC
Type: Solenoid valve
Function: Lowering valve
Degree of protection: IP65
Material: Plastic + metal
Dimensions: approx. 90 mm overall length, coil diameter approx. 40 mm

Application - compatibility with ATH-Heinl vehicle lifts:

H1 lifts (approx. 2007-2010)

ATH 2.28H, 2.32H, 2.38H, 2.40H
ATH 2.32/380 HL, 2.42/380 HL
ATH 2.32/450 HL, 2.42/450 HL

Photo of control box: View Data plate: View

H3 lifts

ATH 2.28H3 - 2.40H3
ATH 2.28HL3 - 2.40HL3
ATH 2.28HX3 - 2.40HX3

Data plate H3: View

Comfort Lift (until 2021)

ATH Comfort Lift 2.30 - 2.40 (L and X versions)
MPPLA 2.35 (Orange)

Data plate: View

Comfort Lift (from 2021)

ATH Comfort 2.35, 2.40
ATH Comfort 2.35XL, 2.40XL

Data plate: View

Single Post Lift

ATH Single Post Lift 25M, 35M, 12P

Bike Lift

ATH-Bike Lift 7, 7F, 7Q, 7QF

Before purchasing, check the serial number and data plate of your lift to ensure the part will fit.

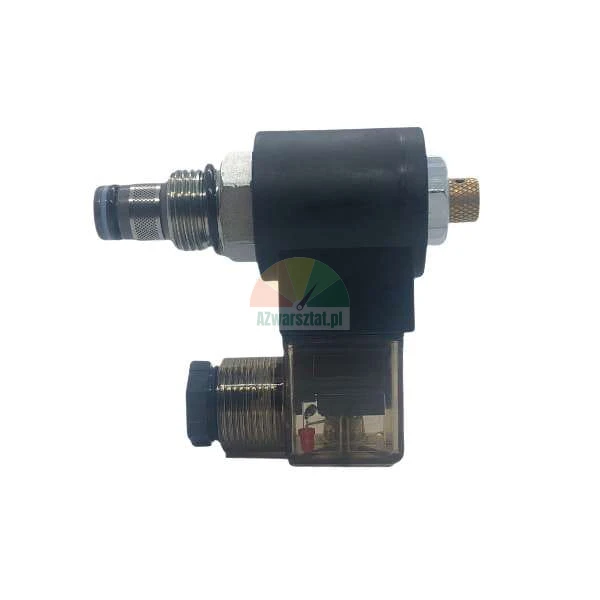

Product photo:

Solenoid with lowering valve 24V DC

Manufacturer

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

+48534920100 slawek@graf-art.pl

Importer

LIVRE RAPIDEMENT SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ

Osiedle Mieszka I-go 4/46

26-340 Drzewica, Poland

+48 781 455 169 info@1688poland.com

Number of ratings: 0

Rate and review

Security

You can feel completely safe when shopping in our online store.

Check

Delivery

Fast delivery via DPD. Your package will arrive within 3 days.

Check

Payment

Among the various payment methods, choose the best option for yourself.

Check

Technical consulting

Ask our specialist. We'll help.

shop@azworkshop.eu

Free shipping

Free shipping for purchases of 50€ or more.

Do you need help?

We are here to make your choice easier and speed up the repair.

Module informational graphic — Want to know more? Check out our knowledge base.
**Go to the blog.**

Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.

📞 Call or send a message—we'll recommend the best solution:

+48 534 920 100

Call charges according to your operator's rates.

Frequently Asked Questions

What cables do I need for my two-post lift?

Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.

Additionally, to correctly select the rope, you need to provide the following technical parameters:

Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
Thread – diameter (e.g., M16)
Thread – length – length of the threaded section (e.g., 14 cm)

The drawing below shows the parameters that must be provided when ordering the rope:
Ropes parameter

What is my machine's model?

Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.

Can I return or exchange the part if it doesn't fit?

Yes, of course.

If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.

For the return to be accepted, the part must:

be unused and undamaged,
show no signs of installation,
be sent back in its original or appropriately secured packaging.

We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
