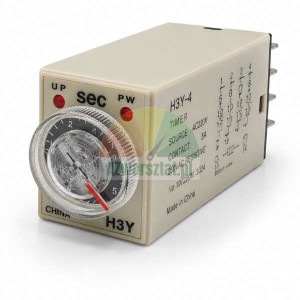

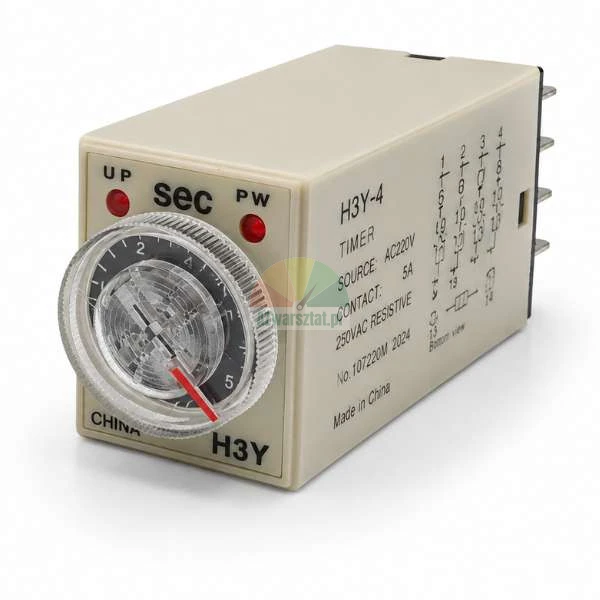

  • H3Y-4 time relay, 220V AC, 5-second range, 14-pin plug-in timer with adjustable dial and LED indicators.
  • Time relay H3Y-4 AC 220V, 5 seconds, 14-pin

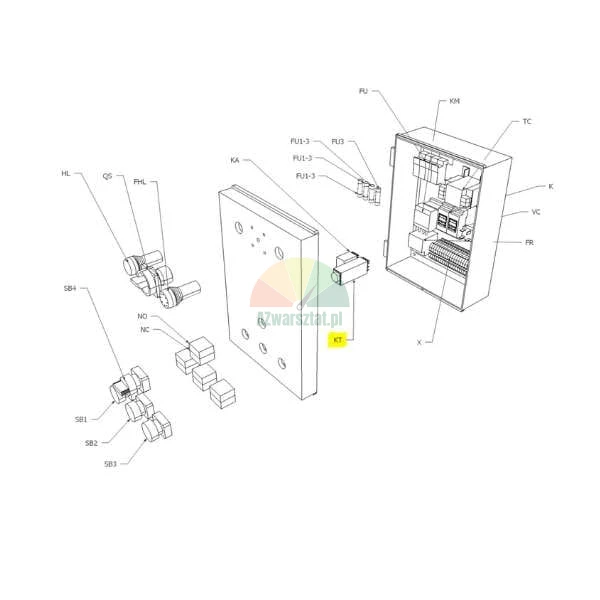

  • Technical exploded view diagram of an electrical control box with labeled components like buttons, relays, and fuses.

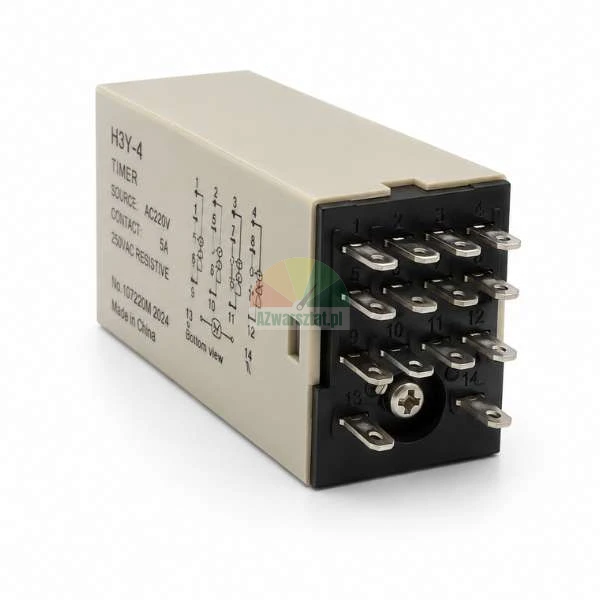

  • H3Y-4 electronic timer relay with 14 metal pins and connection diagram on the side, AC 220V.

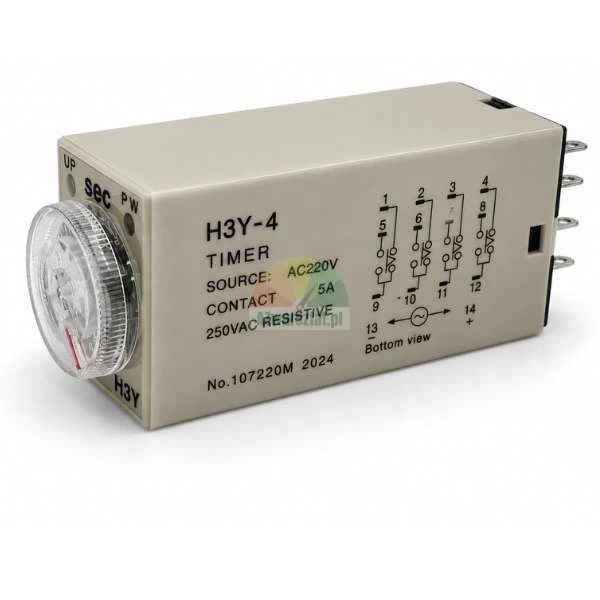

  • H3Y-4 timer relay featuring a transparent adjustment dial, AC 220V power specifications, and a wiring diagram on the side.

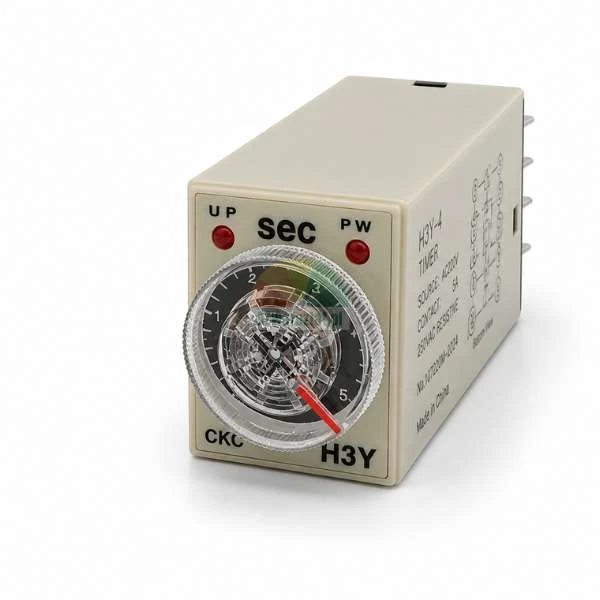

  • Industrial analog timer relay H3Y-4 with a clear adjustable dial scaled in seconds, featuring power and status LEDs on a beige plastic body.

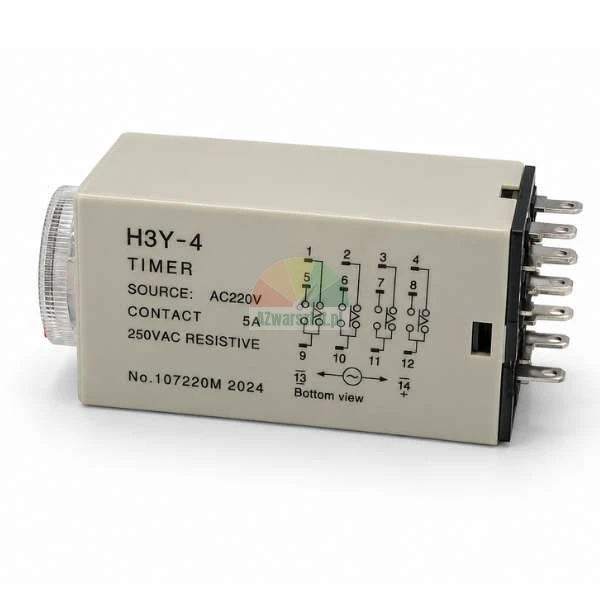

  • H3Y-4 electronic timer relay with AC 220V power source, wiring diagram, adjustment knob and connection pins on white background.
Go to Product feedback
Manufacturer: AZ (go to products)

220AC time relay (5 sec)

Secure payment
30 days to return
Fast shipping
Types of payment
with VAT without VAT
Price €32.42
incl. 23% VAT

Shipping costs are not included in the price.

pc.
Shipping time: 24 hours
Share
Ask about the product
Why us?
  • Only real product reviews.
  • Secure online payments.
  • Hassle-free returns within 14 days.
  • A reliable company - we have been on the market for many years.
Platby

Timer 220V AC (0–5 sec)

The 220V AC time relay is a reliable component used in industrial and workshop automation. It enables precise timing control, which is essential in devices such as vehicle lifts. Thanks to its robust design and high-quality workmanship, it ensures stable and long-lasting operation.

This relay enables delayed switching on or off of equipment, increasing the efficiency and safety of operation.

Technical specifications:

  • Supply voltage: 220V AC 50/60Hz
  • Delay time: 0 – 5 seconds
  • Contact rating: 5A 250V AC
  • Output type: Contact
  • Mechanical life: up to 5000 cycles

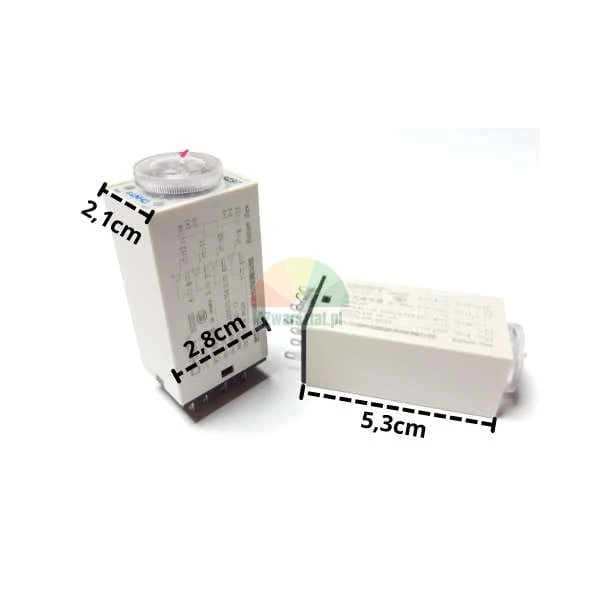

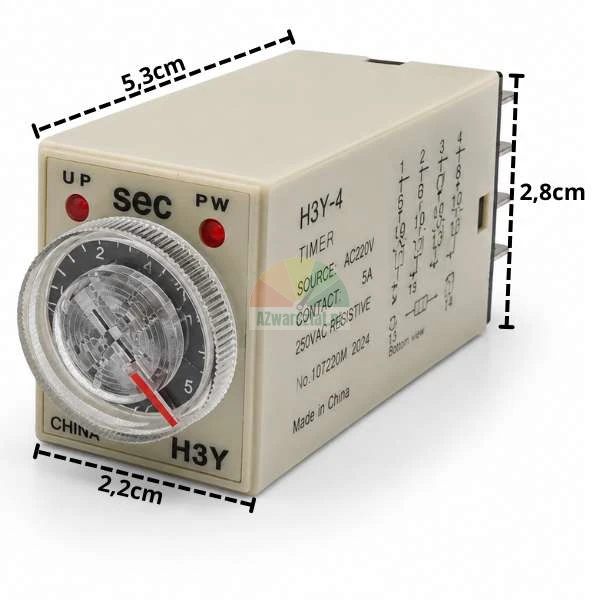

  • Dimensions: 5.3 cm (L) x 2.8 cm (W) x 2.1 cm (H)
  • Easy installation and reliable operation

Thanks to its compact dimensions and high build quality, the relay is ideal for a wide range of industrial applications.

Application:

The time relay is used in many workshop machines and automation systems where precise timing control is required.

By choosing this relay, you ensure stable and efficient operation of your machine.

Installation and use:

Exact dimensions and installation instructions are supplied with the product. It is recommended that all manufacturer's instructions are followed to ensure safe and correct use of the relay.
