Time relay AC 220V / 5 sec / 8 PIN
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-CZAS-0012
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

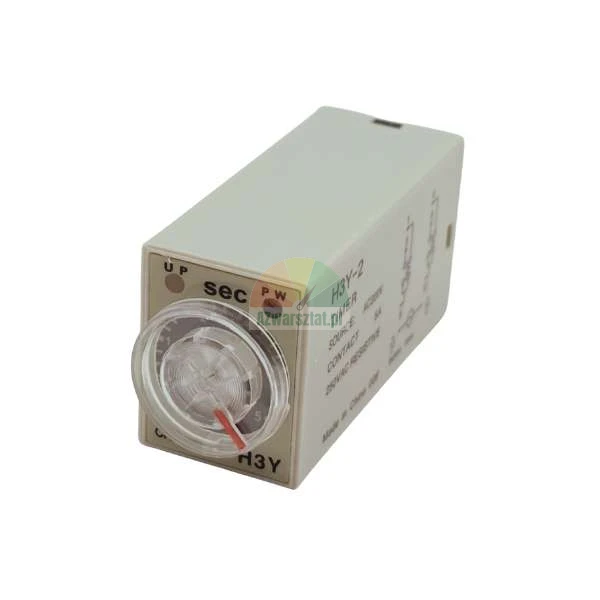

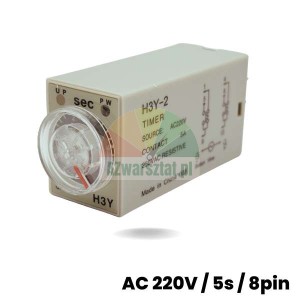

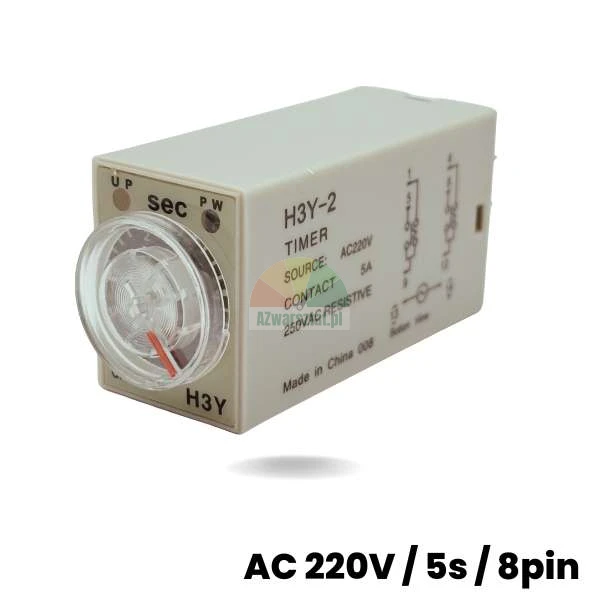

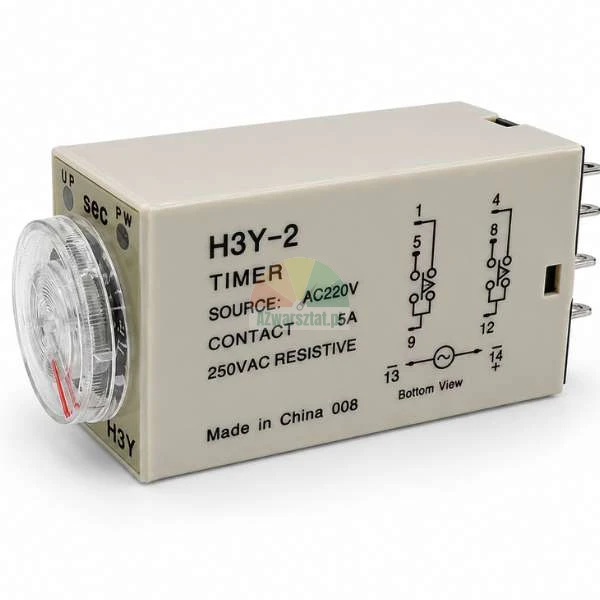

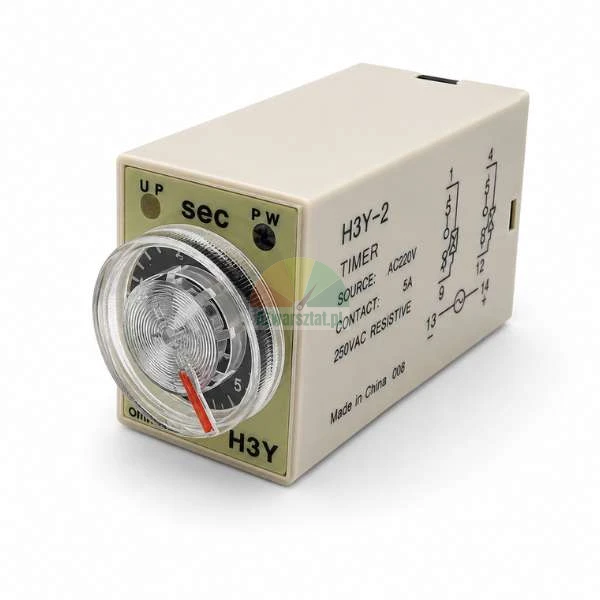

Timing relay AC 220V / 5 sec / 8 PIN
Reliable time control for vehicle lifts
Product description
The timing relay is an electronic control device designed for precise control of timing processes in automation systems. Mounted on an 8-pin socket, it provides a reliable control element for workshop machines, including vehicle lifts, where precise on/off delay of electrical circuits is required.
Ideal for workshops - The timing relay provides reliable time control on vehicle lifts and other workshop equipment, guaranteeing safe and precise operation.
Technical specifications
Electrical specifications

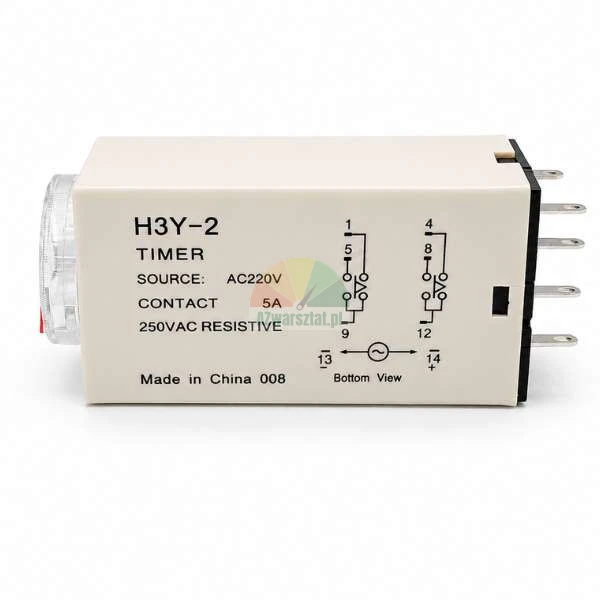

- Supply voltage: 220V AC
- Contact rating: 5A at 250V AC
- Number of contacts: 2 groups (2NO, 2NC)

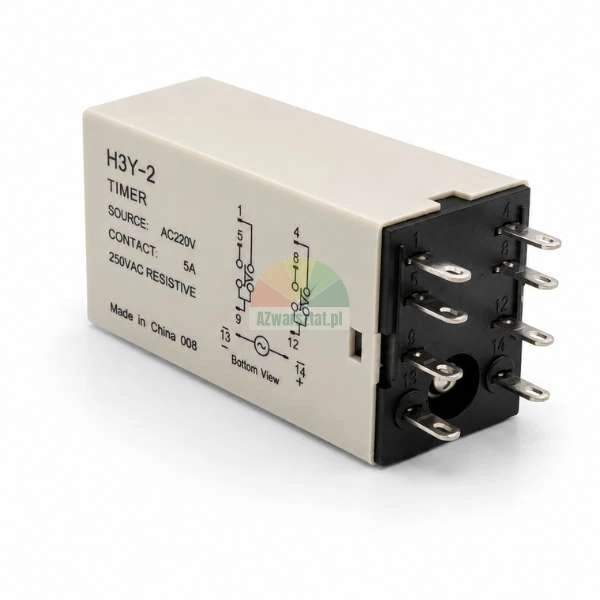

- Mounting type: 8-pin socket
Timing parameters

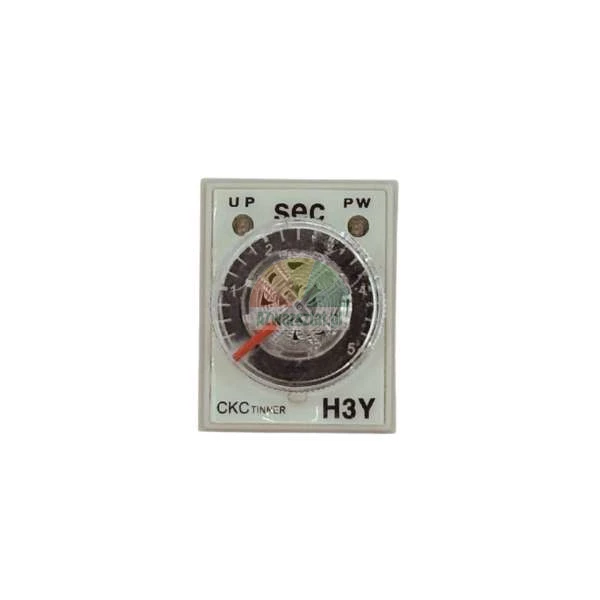

- Delay range: 0-5 seconds
- Precise timing control for processes requiring accuracy
Mechanical

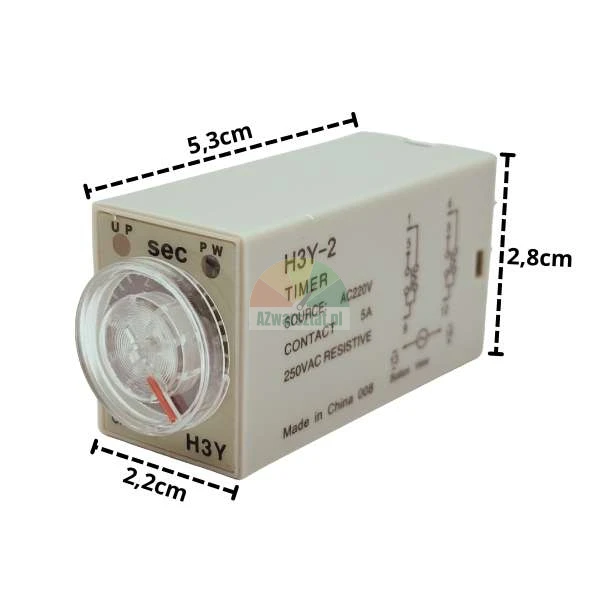

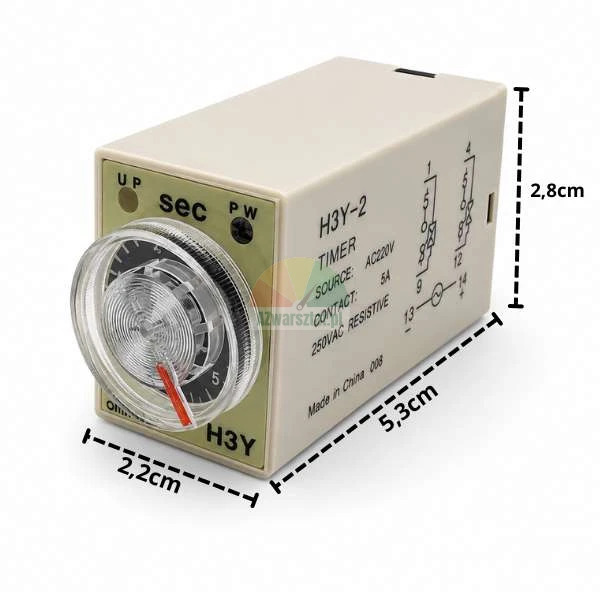

- Dimensions: 5.3 cm (length) × 2.2 cm (width) × 2.8 cm (height)
- Output type: Contact (relay)
Functionality and applications
The timing relay makes it possible to delay the switching on or off of electrical circuits by a preset time. The device works on the basis of precise time measurement, which guarantees reliability in industrial automation systems.
Main functions: delayed activation of a circuit, delayed deactivation of a circuit, control of processes requiring accurate timing.
Product benefits
- Precision - accurate time control of processes
- Easy installation - mounting on a standard 8-pin socket
- Compatibility - 220V AC power supply, compatible with standard European mains supply
- Compact dimensions - easy integration into equipment
Genuine spare part - We guarantee the highest quality and compliance with technical parameters. Ideal replacement for worn out or damaged timing relays in your workshop equipment.
