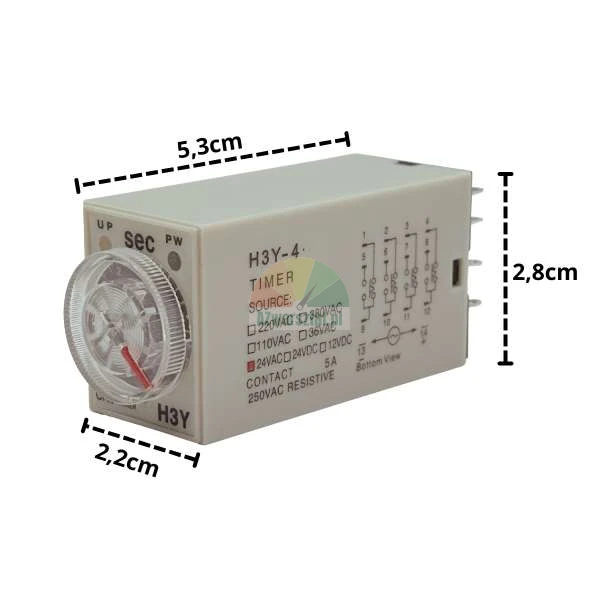

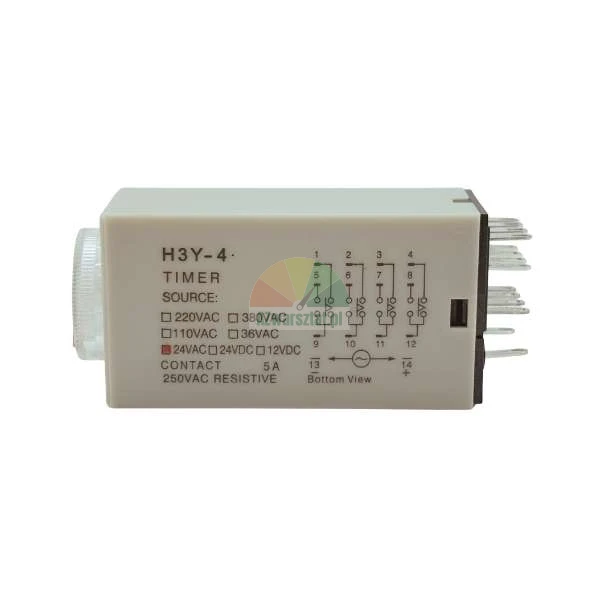

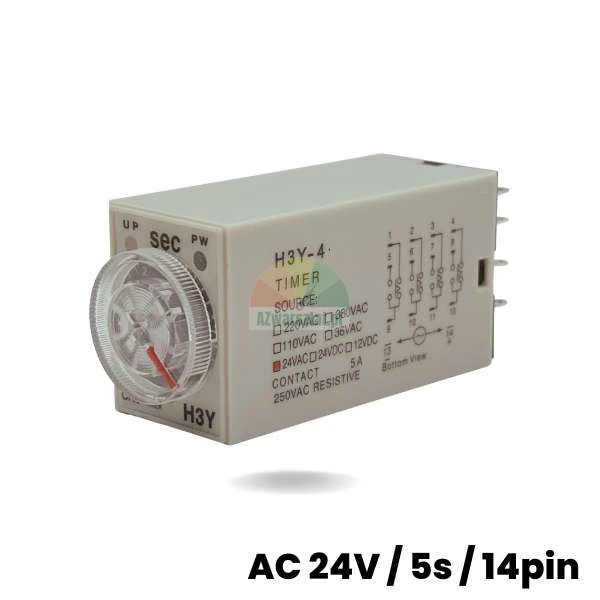

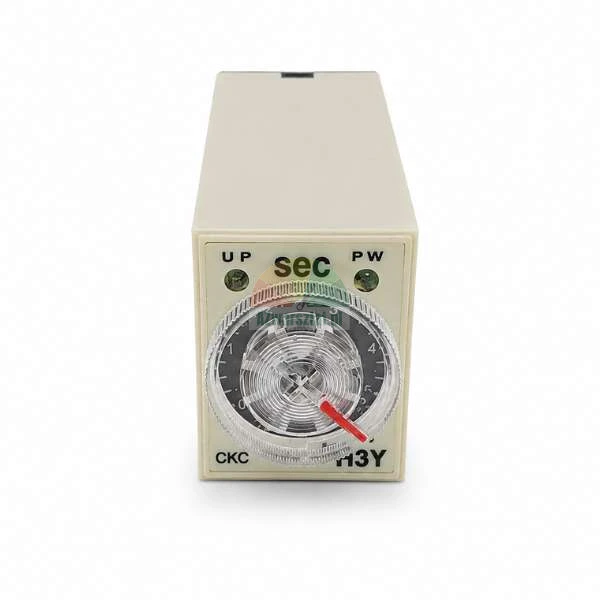

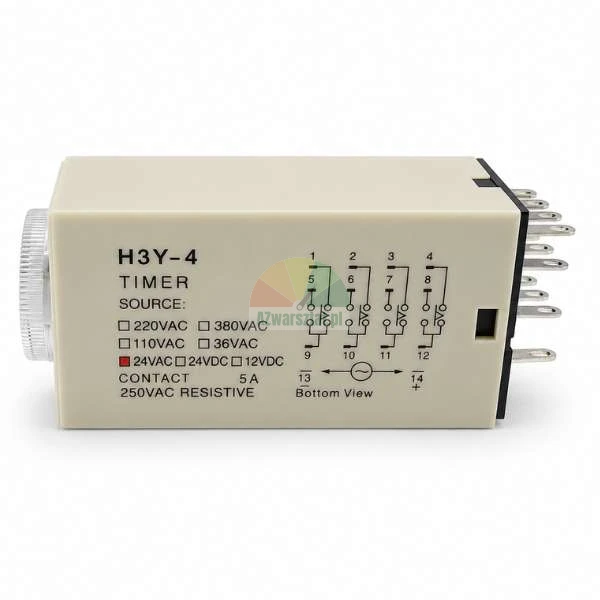

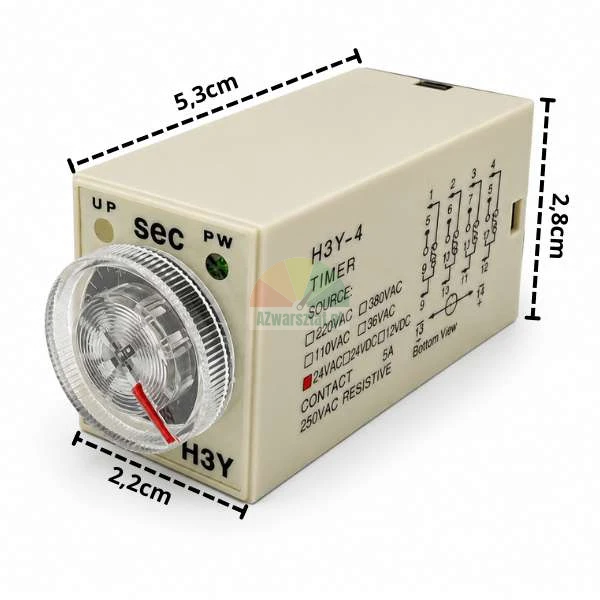

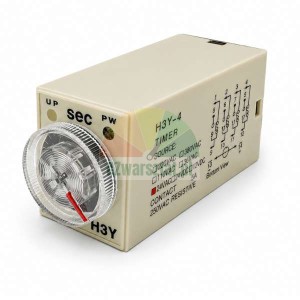

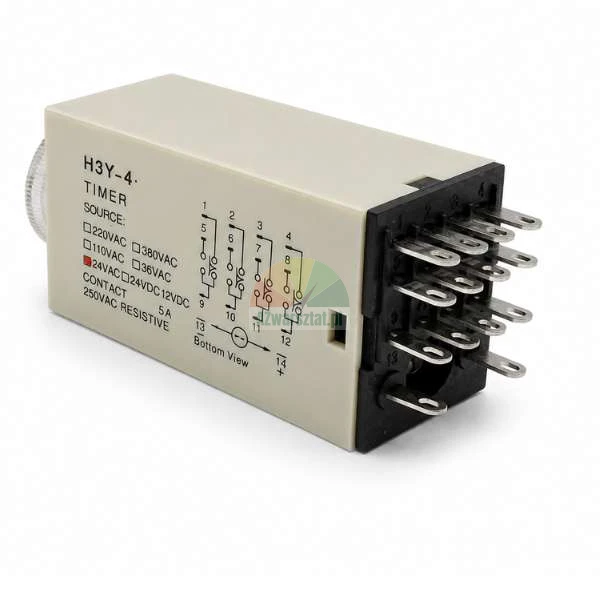

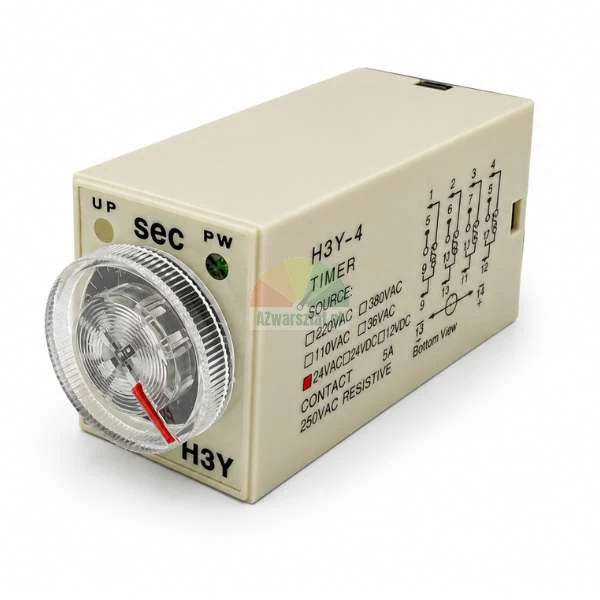

Timing Relay AC 24V / 5 sec / 14 PIN

Reliable timing relay designed for timing control in industrial and workshop automation systems. Ideal for applications in vehicle lifts and other equipment requiring precise timing control.

Technical specifications

Supply voltage: 24V AC/DC
Delay time: 5 seconds
Connector type: 14 PIN
Function: Delayed on/off switching

Application

The 24V AC timer relay is used in:

Vehicle lifts - timing control of engine and safety systems
Ventilation and heating systems in workshops
Emergency lighting and signalling
Industrial automation requiring precise timing control
Diagnostic and service equipment

Main features

✓ Precise time control - accurate time delay of 5 seconds
✓ Reliable design - proven in harsh workshop environment
✓ Easy to mount - 14 PIN connector for quick installation
✓ 2 4 V power supply - safe voltage for automation systems
✓ Resistant to working conditions - tested in a workshop environment

Why choose this product?

The AC 24V / 5 sec time relay is a professional solution for garages and service workshops. It guarantees reliable operation in lift systems and other devices requiring automatic time control. Thanks to the standard 14 PIN connector, assembly is quick and easy and installation requires no specialist knowledge.

Ideal for garages - reliable, durable and easy to install. The 24V AC time relay will ensure precise time control of your devices for many years.

Compatibility

Compatible with 24V AC/DC automation systems. Check your device's documentation to ensure that the 14 PIN connector corresponds to your installation.
