DC 24V / 5 sec / 14 pin time relay

Secure payment

30 days to return

Fast shipping

€30.32

Shipping costs are not included in the price.

Quantity

pc.

Shipping time: 24 hours

Ask about the product

Why us?

Only real product reviews.
Secure online payments.
Hassle-free returns within 14 days.
A reliable company - we have been on the market for many years.

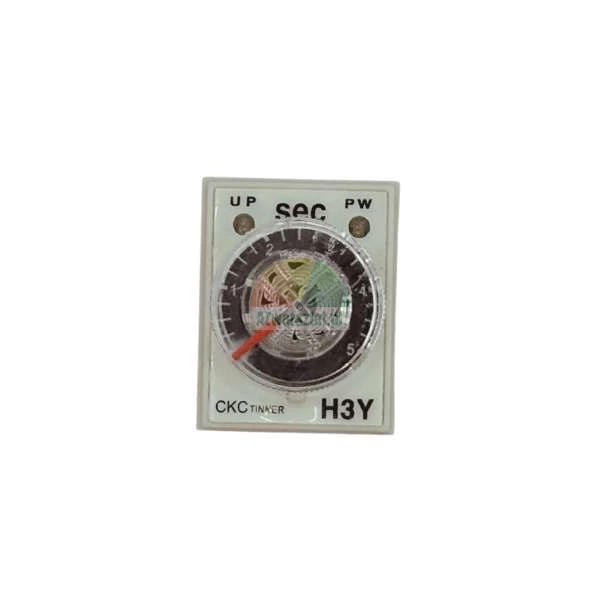

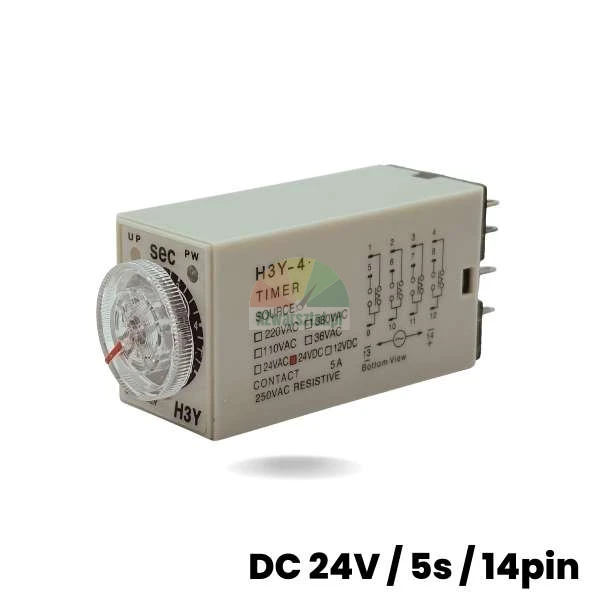

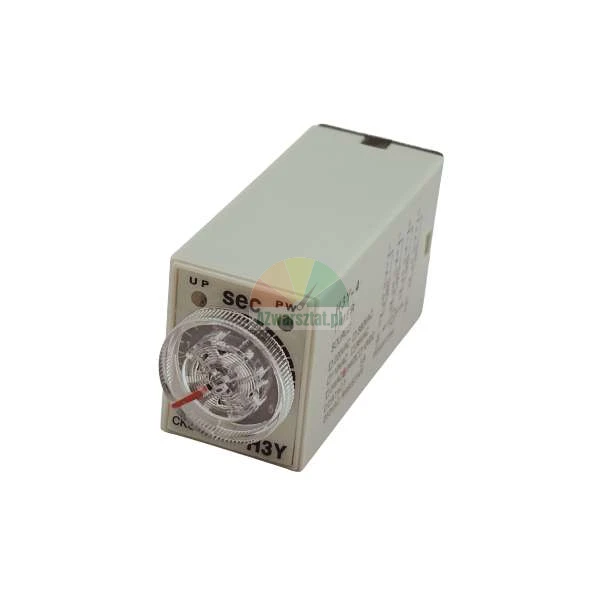

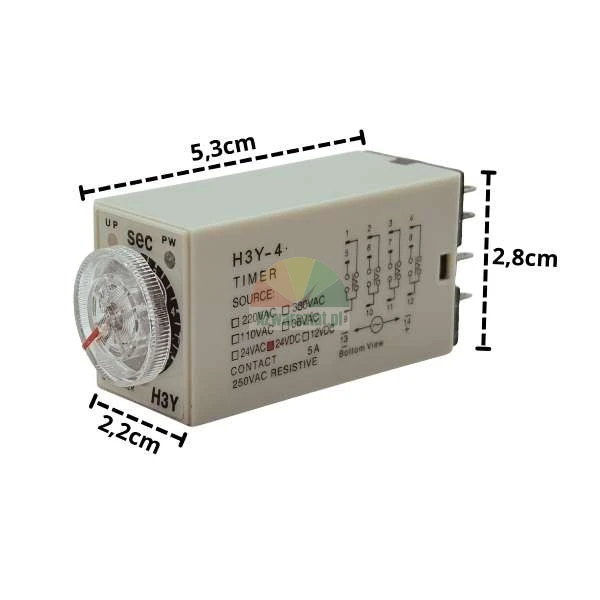

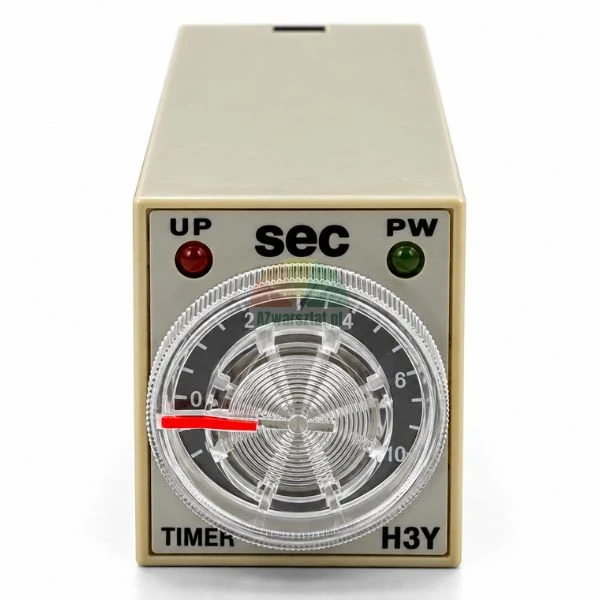

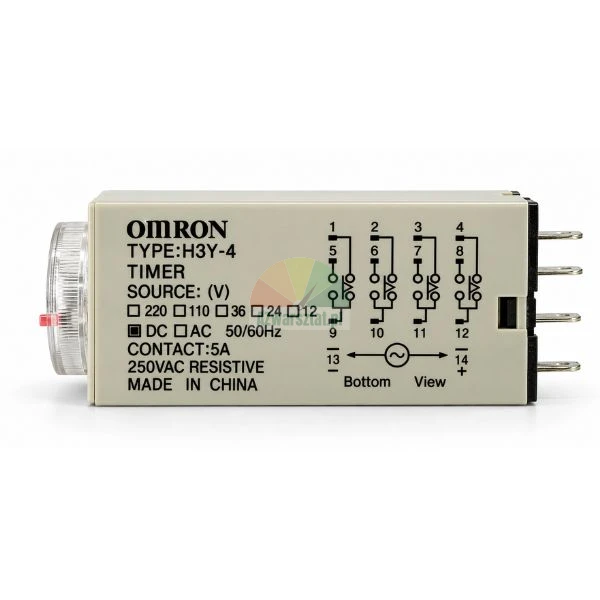

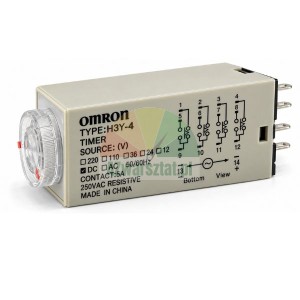

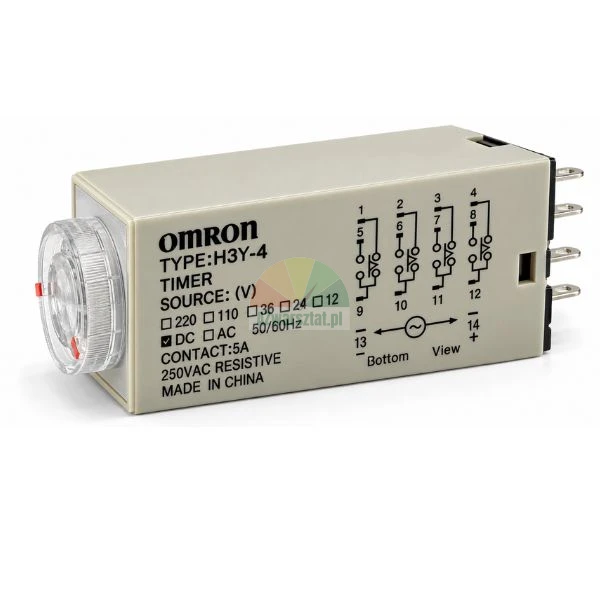

Time relay DC 24V / 5 sec / 14 pin

Professional electronic time relay designed for precise control of devices in industrial automation systems. Ideal for applications requiring reliable time delay, including vehicle lifts and other workshop equipment.

Key Features

Reliable time delay: Relay provides a precise time delay of 5 seconds on, ideal for vehicle lifts and systems requiring controlled device start-up.

Power supply: 24V DC - compatible with low-voltage garage systems
Mounting: 14-pin socket - easy installation and replacement
Operating mode: Delayed on make - the device switches on after a set time has elapsed
Output: Relay - allows control of devices with different electrical parameters
Electronic design: Reliable and durable, able to withstand the workshop environment

Application in car lifts

The DC 24V / 5 sec timer relay is specifically used in car lifts to control the delay time when switching on the device. It ensures the safe start of the lift, allowing the hydraulic and electronic system to stabilise before the lifting force is fully engaged.

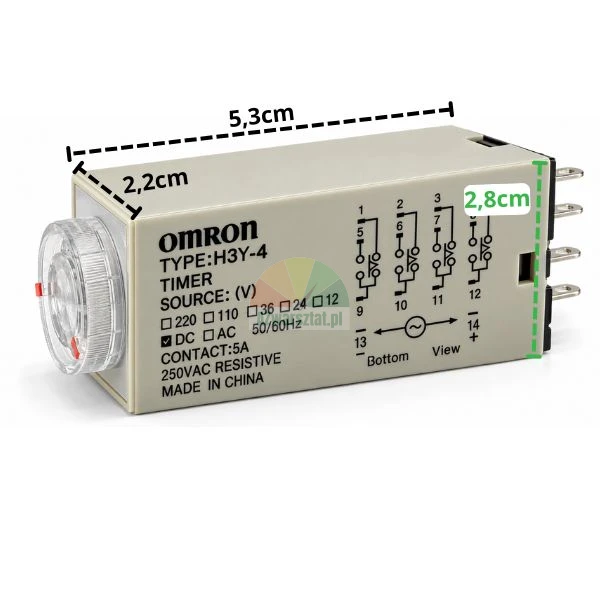

Technical specifications

Parameter	Value
Supply voltage	24V DC
Delay time	5 seconds
Number of pins	14
Mounting type	Socket mount
Output type	Relay
Operating mode	Delay on make

How does it work?

A time relay reacts to an input signal and switches its output contacts after a set time (5 seconds). In the case of vehicle lifts, this means that the unit switches on with a delay, which ensures:

Safe start-up of the hydraulic system
Stabilisation of the circuit pressure
Protection of electrical components against sudden current surges
Extension of the service life of the unit

Compatibility and Installation

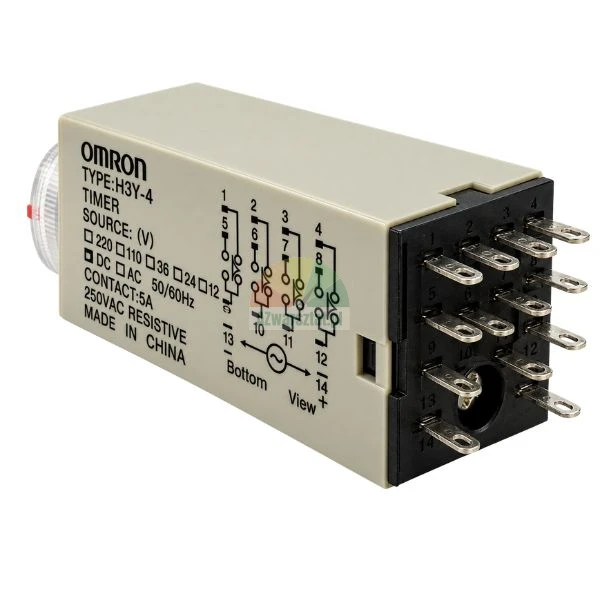

The relay is mounted on 14-pin sockets for easy installation and replacement. Compatible with control panels and devices fitted with standard sockets of this type. The 24V DC power supply makes it ideal for low-voltage systems used in garages.

Easy replacement: thanks to its socket mounting, replacing the relay is quick and requires no welding or soldering work.

Why choose this relay?

Reliability: The electronic design guarantees precise operation
Durability: Resistant to the workshop environment
Safety: Time delay protects equipment from damage
Easy to install: 14-pin socket mounting - no complicated procedures
Cost-effective: Low price with high quality and reliability

The DC 24V / 5 sec / 14 pin timer relay is a must-have for every automotive workshop, especially for lifts and equipment requiring precise timing control. Order now and ensure reliable operation of your equipment!
