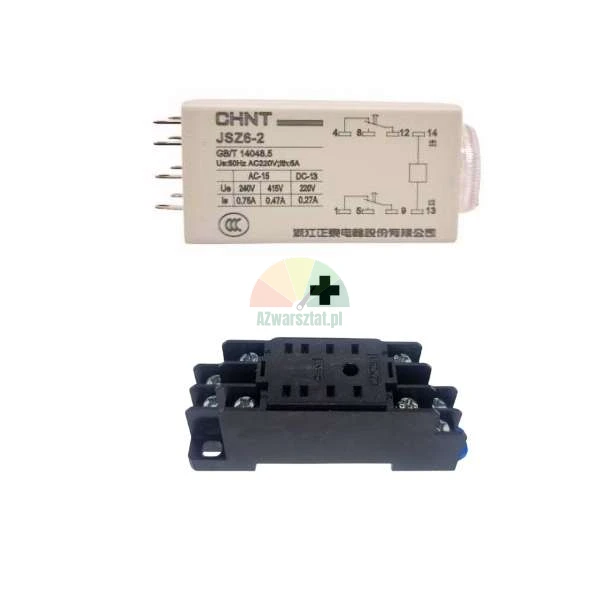

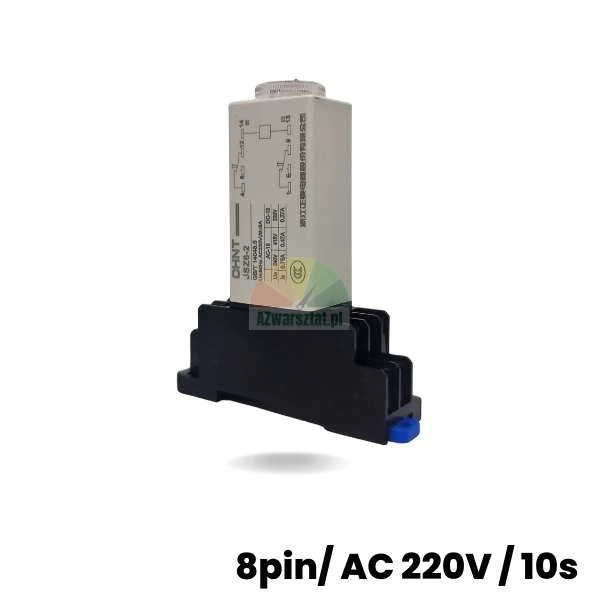

Time relay with DIN rail connection (8pin/220AC/10s)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: P-CZAS-0007
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
Timing relay AH3-2 220VAC 5A 8 PIN 10s - reliable automation for your workshop
The AH3-2 time relay is a universal solution for automatic time control in workshop machines and installations. With an adjustable time range of 0-10 seconds and a robust design, it is ideal for control cabinets, HVAC systems, lighting, ventilation, pumps or alarm systems.
Looking for a reliable timer control? The AH3-2 is a proven choice for industrial and workshop automation - simple DIN rail mounting and fast runtime configuration!
Product highlights:
- Model: AH3-2
- Supply voltage: 220 V AC
- Contact rating: 5A / 250 V AC
- Number of pins: 8 (8-pin socket required)
- Operating time range: 0-10 seconds (continuously adjustable)
- Mounting: for DIN rail
- Contact type: 2NO, 2NC (2 sets of switches)
- LED indication: indicates operating status
Application:
- Industrial and workshop automation
- Lighting and ventilation control
- Delayed start-up of motors and pumps
- Alarm systems and time protection

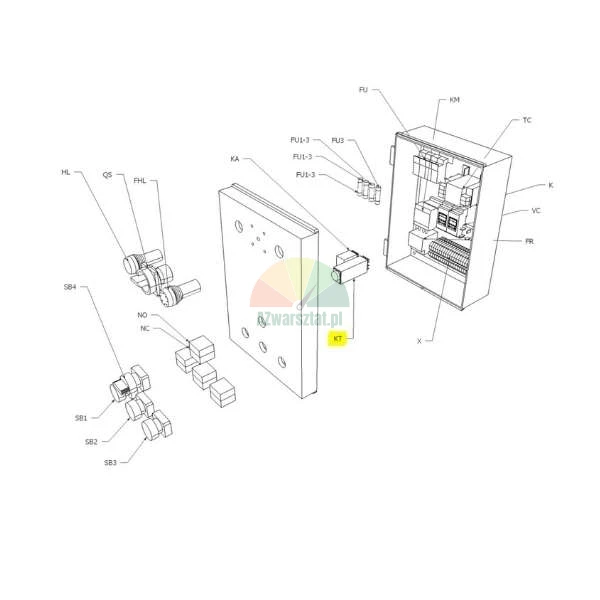

- Control cabinets and switchgear
The AH3-2 timer relay allows you to precisely set the switch-on or switch-off delay - simply use the knob on the front of the housing to adjust the timing to suit your application.
Why choose this model?
- Versatile: fits most workshop machines and automation systems
- Easy to install: quick DIN rail mounting, convenient 8-pin connection
- Durability: high build quality, long mechanical and electrical life
- Safety: robust insulation and reliable operation
Technical specifications:
| Model | AH3-2 |
| Supply voltage | 220 V AC |
| Contact rating | 5A / 250 V AC |
| Number of pins | 8 |
| Time range | 0-10 s (adjustable) |
| Mounting | DIN rail (8-pin) |
This relay is the ideal choice for upgrading and repairing workshop machinery - it offers reliability, simplicity of operation and a wide range of application possibilities!
