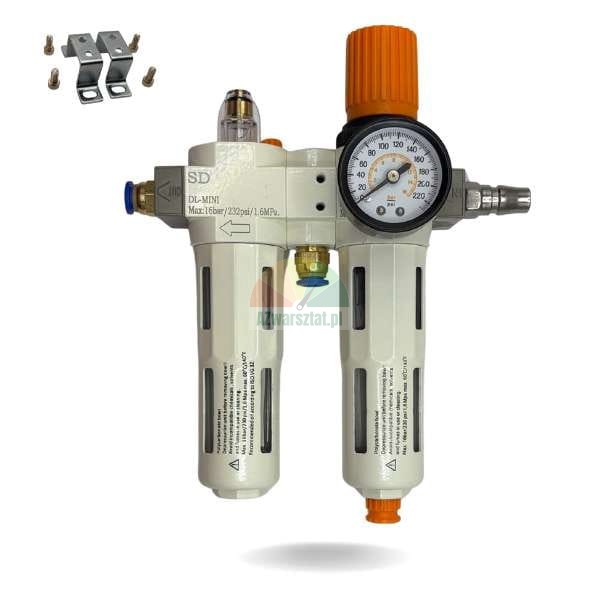

  • Complete compressed air service unit DFC2000-F-X (filter and regulator) with pressure gauge and mounting brackets.

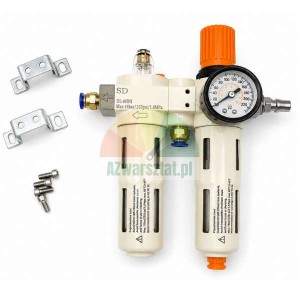

  • Complete compressed air service unit DFC2000-F-X, filter-regulator with gauge, dimensions 12.3x20.5 cm.

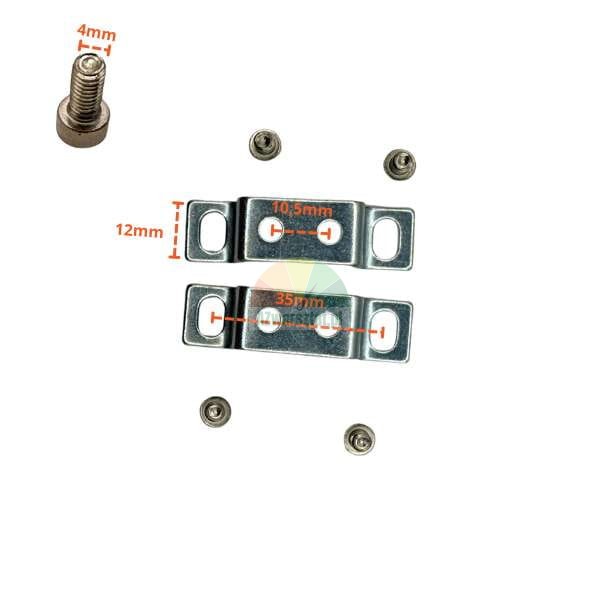

  • Metal mounting brackets with visible dimensions (12mm, 10.5mm, 35mm), including a 4mm screw and fasteners.

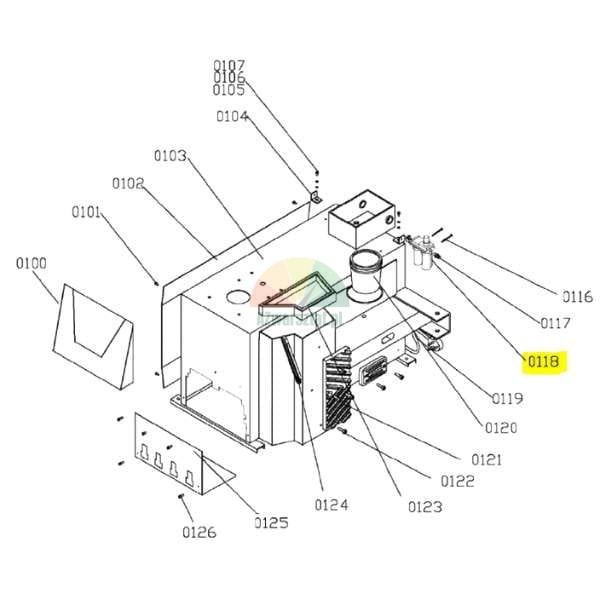

  • Exploded view drawing of boiler or burner components with parts numbered 0100 to 0126, highlighting item 0118.
  • Pneumatic air treatment unit: filter and pressure regulator (FR combo), featuring two bowls and an orange adjustment knob, isolated on white background.

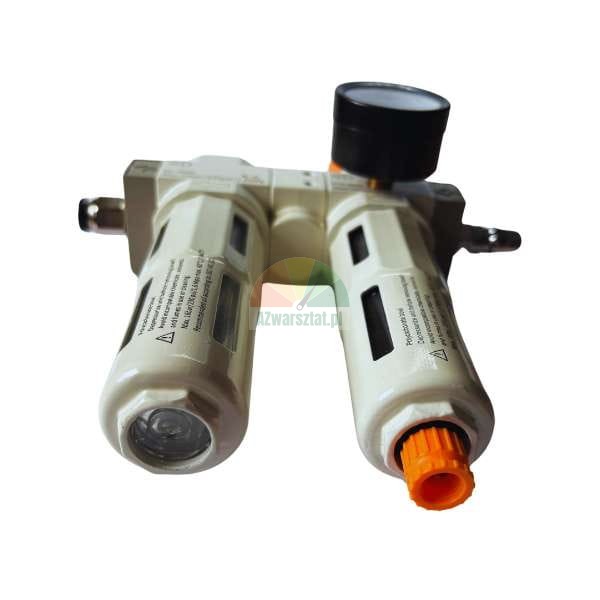

  • Pneumatic filter-regulator unit (FRL) for compressed air, beige body, dual bowls, and black pressure gauge.

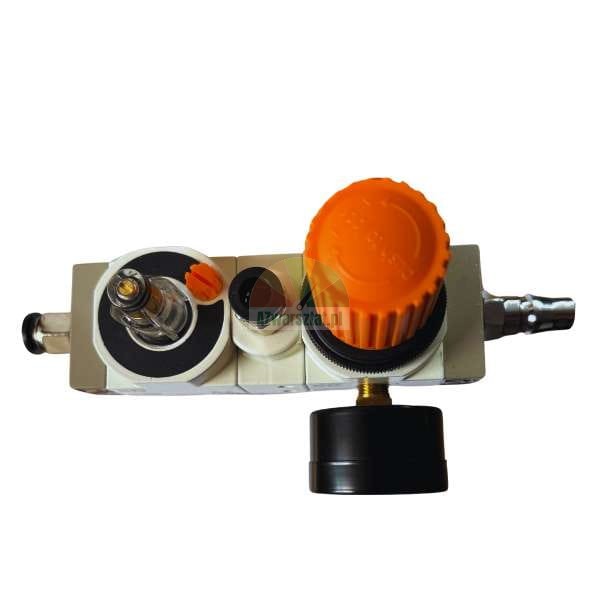

  • Pneumatic module with pressure regulator and orange adjustment knob, photographed on a white background
  • Close-up of a pneumatic air filter regulator unit (FRL) with a pressure gauge and orange adjustment knob, showing 'SD DL-MINI' text and max pressure rating of 16 bar.

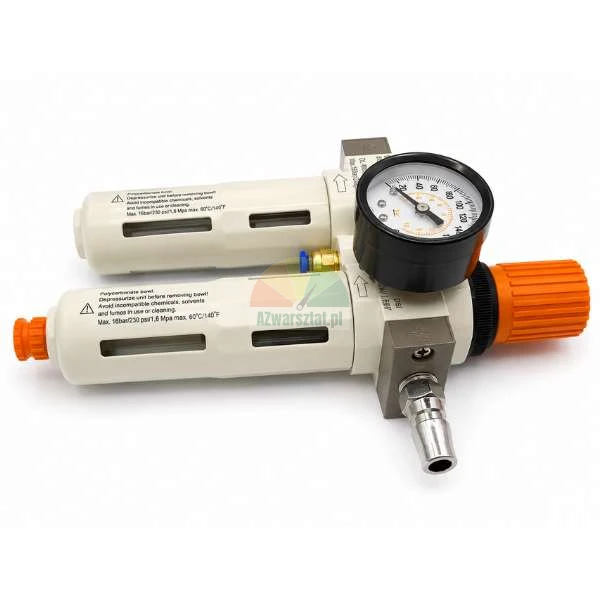

  • Pneumatic air filter and pressure regulator unit (F.R. unit) with a pressure gauge and an orange adjustment knob, shown against a white background.
Go to Product feedback
Manufacturer: AZ (go to products)

Complete compressed air service unit DFC2000-F-X

Secure payment
30 days to return
Fast shipping
Types of payment
with VAT without VAT
Price €51.47
incl. 23% VAT

Shipping costs are not included in the price.

pc.
Shipping time: 24 hours
Share
Ask about the product
Why us?
  • Only real product reviews.
  • Secure online payments.
  • Hassle-free returns within 14 days.
  • A reliable company - we have been on the market for many years.
Platby

Complete compressed air service unit DFC2000-F-X

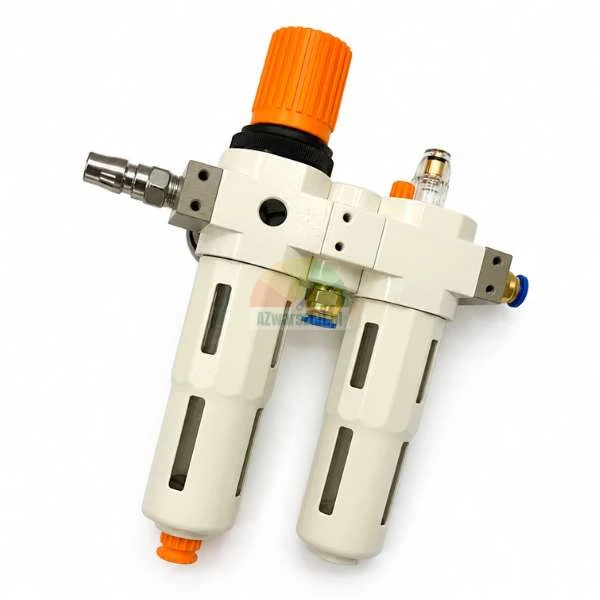

A professional air preparation unit (FRL), essential in every workshop and tyre service centre. This device combines three key functions: filtration, pressure reduction and lubrication. It is a complete all-in-one solution that protects your pneumatic tools from contamination, water and lack of lubrication.

Why is this important? Unfiltered air from a compressor often contains moisture and rust particles, which are detrimental to tyre changers and impact wrenches. This unit eliminates these hazards, significantly extending the service life of workshop machinery.

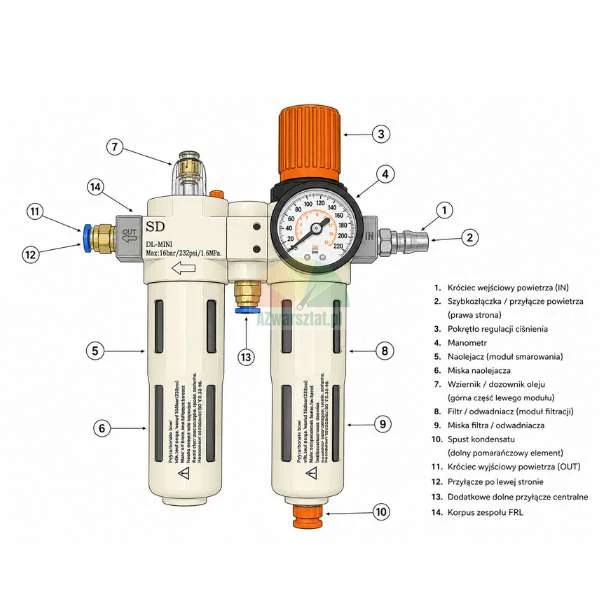

Key features and design

  • Filter-drain: Effectively removes water condensate and solid contaminants from compressed air. The transparent tank allows for easy monitoring of the collected water level.

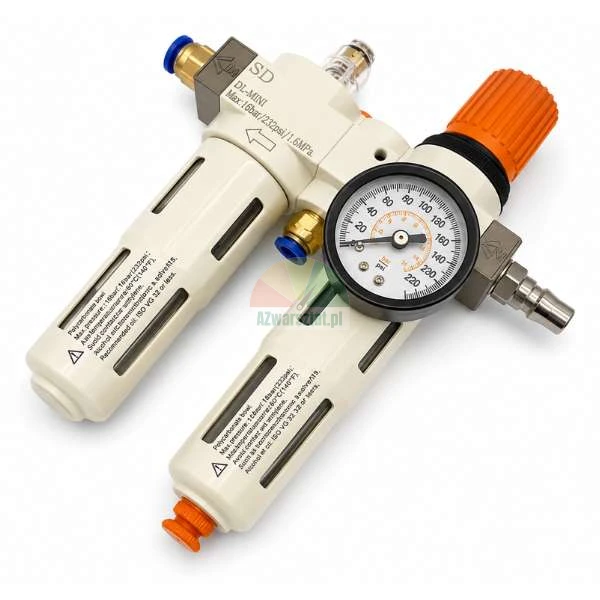

  • Pressure reducer: A precise knob with a lock (visible at the top in orange) and a clear pressure gauge (scaled in bar and psi) allow you to set the ideal working pressure for the connected devices.
  • Oiler (lubricator): Automatically dispenses oil mist into the flowing air, ensuring lubrication of the moving parts of pneumatic tools. It has oil dosage adjustment (dome at the top).

Technical data and dimensions

The unit has a compact design (DL-MINI series), which allows it to be installed even in confined spaces, e.g. on a lift column or on the side of an assembler.

Operating parameters:

  • Maximum inlet pressure: 16 bar (232 psi / 1.6 MPa)
  • Recommended operating temperature: up to 60°C
  • Recommended oil: ISO VG 32

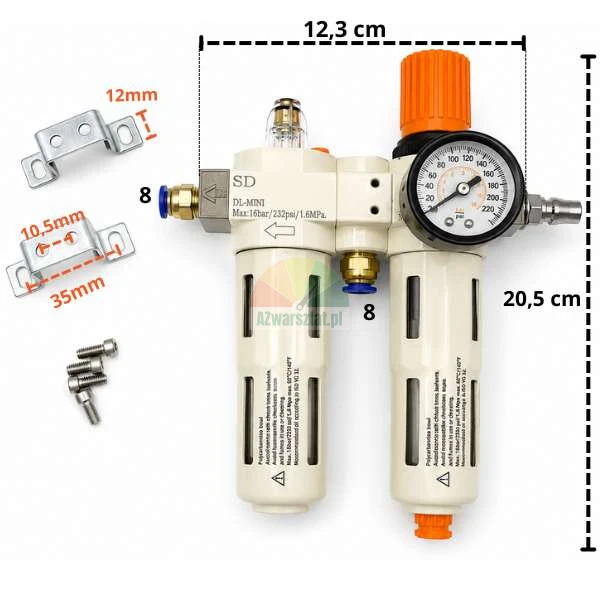

Physical dimensions:

  • Total height: 20.5 cm
  • Overall width: 12.3 cm
  • Connection diameter (quick couplings): Ø8 (8 mm)

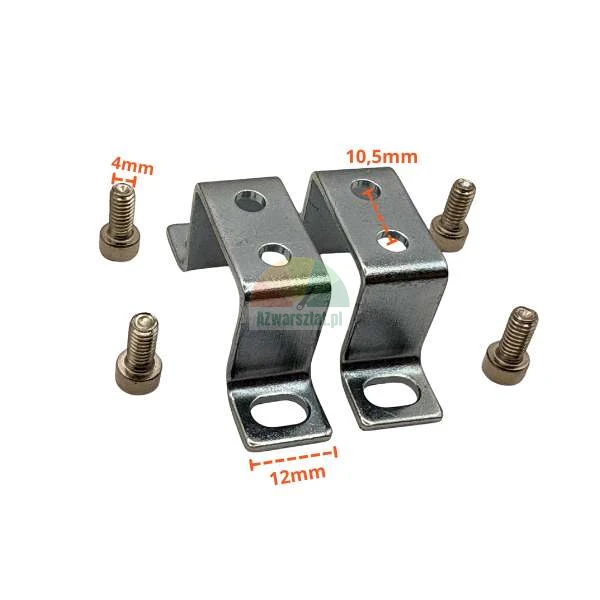

Complete mounting kit

The product is delivered ready for installation. The kit includes dedicated mounting brackets that ensure stable attachment of the unit to the wall or machine housing.

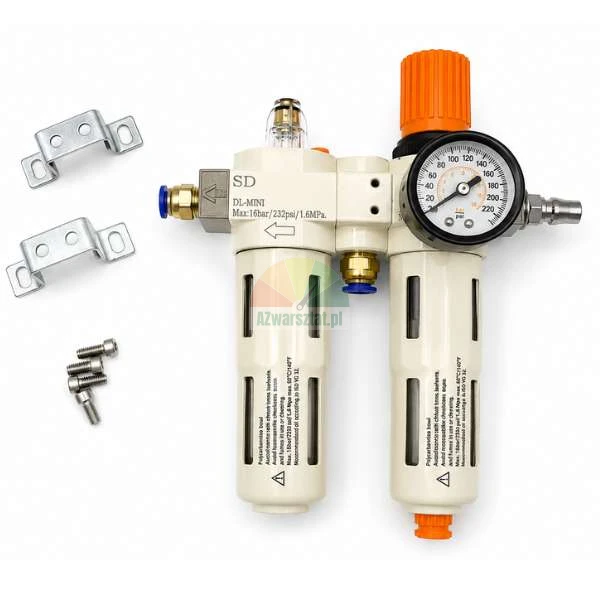

The kit includes:
1x Air preparation unit (filter + reducer + oiler)
2x Metal mounting plates (35 mm hole spacing)
Set of mounting screws (4 mm)
