Complete compressed air service unit Type F
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-SERW-0005
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
Complete Compressed Air Service Unit Type F
The Type F complete service unit is the professional and reliable solution for compressed air preparation in workshops, tyre fitting shops, wheel balancers and pneumatic jacks. The unit combines three key functions: filtration, pressure control and lubrication to ensure optimum working conditions for pneumatic tools.
3-in-1: air filter, pressure regulator and lubricator – effectively removes moisture and dirt and ensures proper lubrication of tools.
Key features and technical specifications:
- Model: M-SERW-0005
- Type: F – filter + regulator + lubricator
- Connection diameter: Ø8 mm – compatible with most pneumatic systems
- Height: 15.5 cm
- Overall width: 14.5 cm
- Pressure gauge: built-in, with an easy-to-read scale up to 150 PSI / 10 bar
- Reservoir material: transparent plastic with graduation – easy monitoring of liquid level
- Pressure control: precise, by means of a convenient rotary knob
- Design: compact and stable – easy to install and use
Thanks to its high-quality workmanship and well-thought-out design, the Type F service unit increases work efficiency, reduces the risk of tool failure and lowers operating costs in the long term.
Application:
Ideal for applications in:
- tyre changers
- wheel balancers
- pneumatic jacks
- other equipment requiring clean and lubricated air
Opt for reliability and professionalism – choose the Type F service unit and ensure a long service life for your workshop equipment!
Product photo:

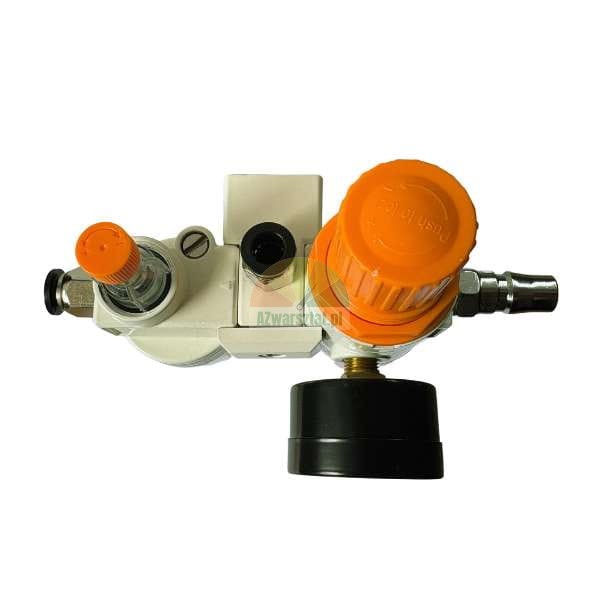

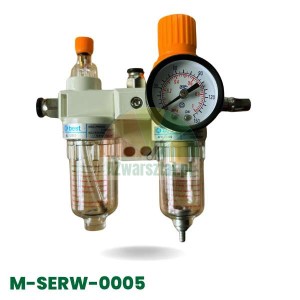

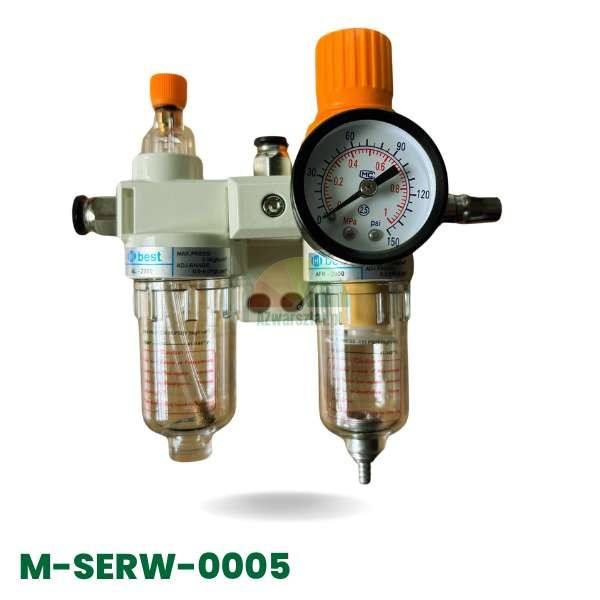

Below is the actual appearance of the Type F service unit. The picture shows a compact design with the following dimensions: height 15.5 cm, width 14.5 cm, with transparent reservoirs and an integrated pressure gauge.
Product safety
Manufacturer
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
