Complete Type A compressed air service unit

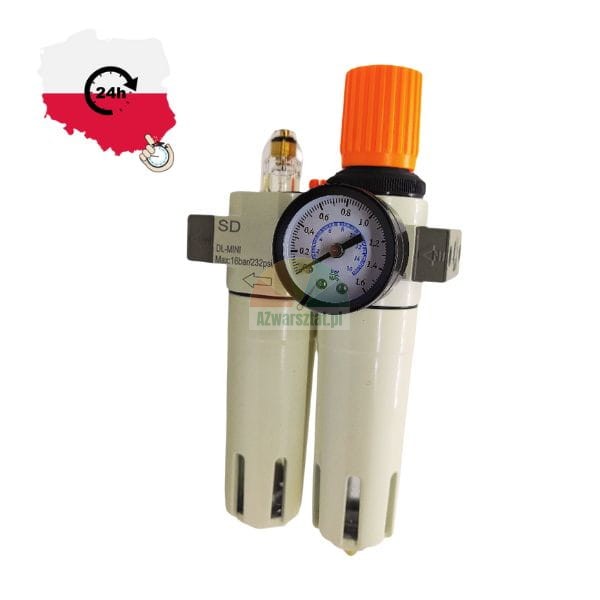

Ensure your workshop equipment enjoys the highest level of protection and optimal operating conditions. The Complete Type A Compressed Air Service Unit is a reliable air treatment system that combines the functions of a filter/water separator, pressure regulator and oil mist lubricator.

Extend the service life of your machinery! Regular use of the service unit effectively removes water and contaminants from the system and ensures adequate lubrication via an oil mist. This is a crucial measure that protects delicate actuators, seals and pneumatic valves against premature wear and corrosion.

Technical data and specifications:

Maximum pressure: 16 bar / 232 psi / 1.6 MPa

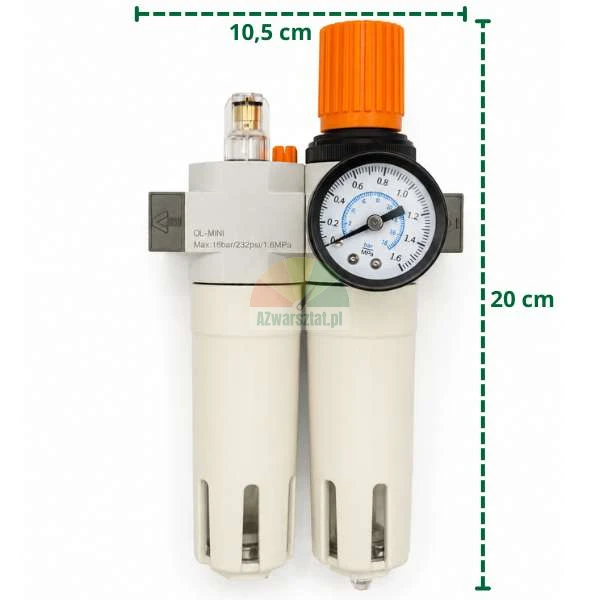

Overall dimensions: width 10.5 cm x height 20 cm
Model: QL-MINI

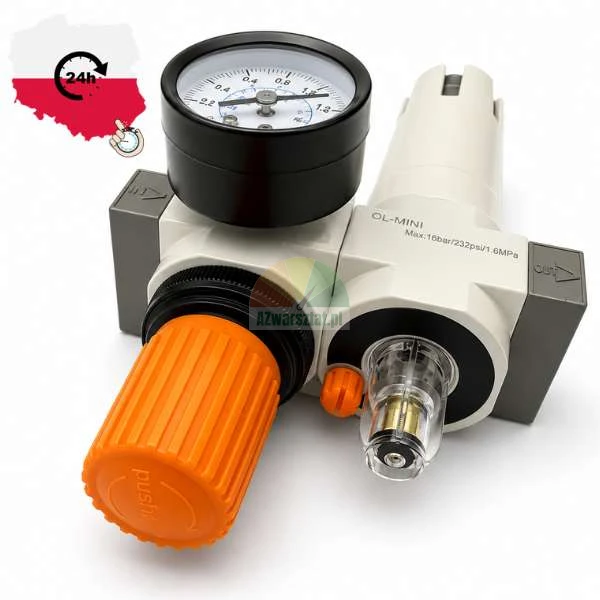

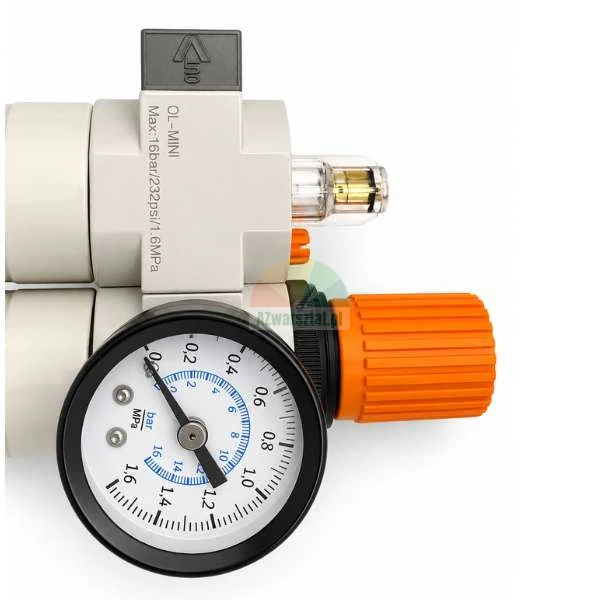

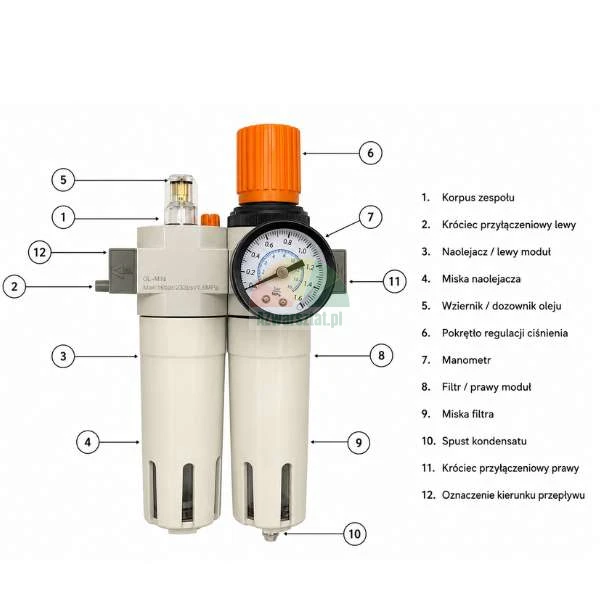

Features: Integrated, easy-to-read dial pressure gauge, pressure adjustment knob, oil reservoir and condensate bowl.

Application

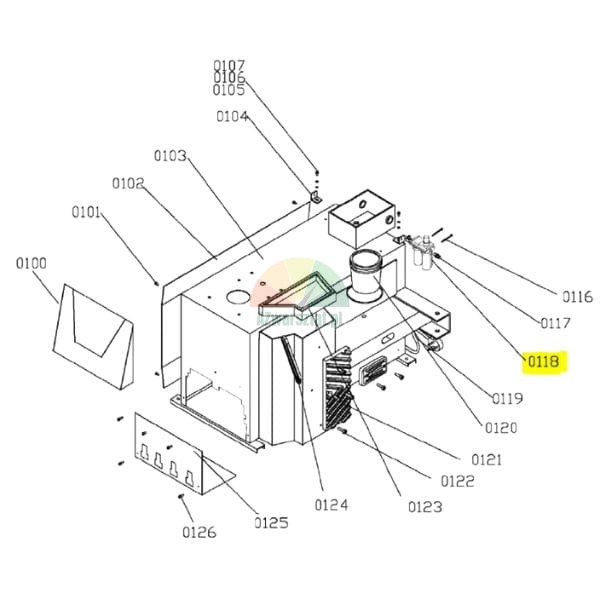

This filter-regulator with lubricator is an excellent replacement part designed for professional workshop machinery, in particular tyre changers. As shown in the accompanying technical diagram, this unit corresponds to part number 0118, which is normally fitted on the outside of the tyre changer’s housing.

When you shop at azworkshop.eu, you’re choosing tried-and-tested, durable spare parts for car lifts, tyre changers and wheel balancers. Invest in professional components and avoid costly downtime in your workshop!
