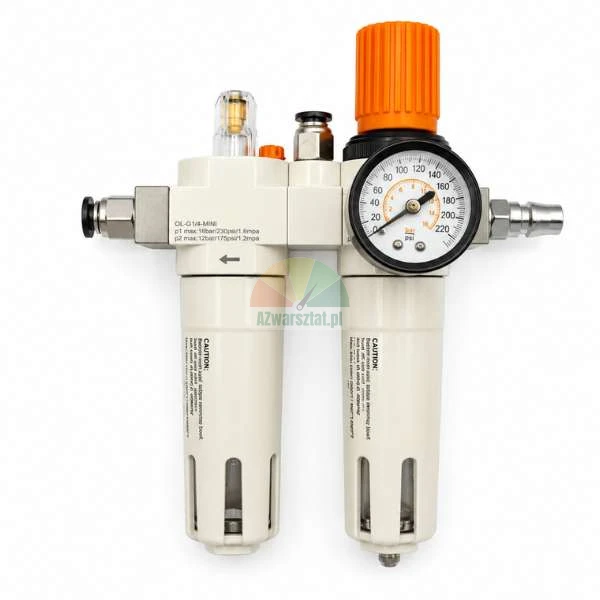

Complete compressed air service unit Type D

The Type D compressed air service unit is a professional and compact unit combining the functions of air filter, water separator, pressure regulator and oiler. It provides clean, dry and properly lubricated air, which translates into longer life of pneumatic tools and trouble-free operation of workshop machinery.

Key features and specifications:

Model: M-SERW-0003
Type: Complete unit (filter + separator + reducer + oiler)
Maximum pressure: 10 bar (1 MPa / 145 psi)
Built-in pressuregauge: allows precise reading of operating pressure
Connection diameter: Ø8 mm
Dimensions: 17 cm (width) x 20 cm (height)

Application:

The Type D unit is used on most workshop equipment supplied with compressed air. Particularly recommended for:

tyre changers
wheel balancers
pneumatic jacks
other pneumatic machines and tools.

Thanks to the use of high-quality filters and separators, the unit meets the requirements of the ISO 8573-1 standard for compressed air purity. Compact dimensions and standardised connections make installation quick and trouble-free.

Why choose a Type D unit?

Improves air quality - removes contaminants, water and particles
Protects tools - provides adequate lubrication and prevents corrosion
Stabilises pressure - allows precise adjustment for different equipment
Easy to install and use - compact design and universal connections
Universal application - ideal for workshops, service and assembly shops

Product photo:

Jednostka serwisowa Typ D

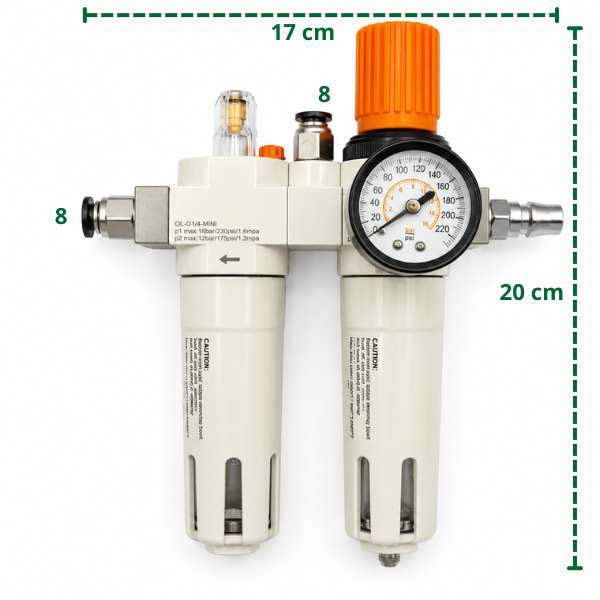

Pictured: complete Type D service unit measuring 17 cm (width) x 20 cm (height), with Ø8 mm connections

Take care of your tools and choose the proven, professional Type D service unit - reliability and clean air in your workshop!

Manufacturer

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

+48534920100 slawek@graf-art.pl
