197mm / 16mm tyre changer impactor cylinder piston (unthreaded)
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-TLOK-0009
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

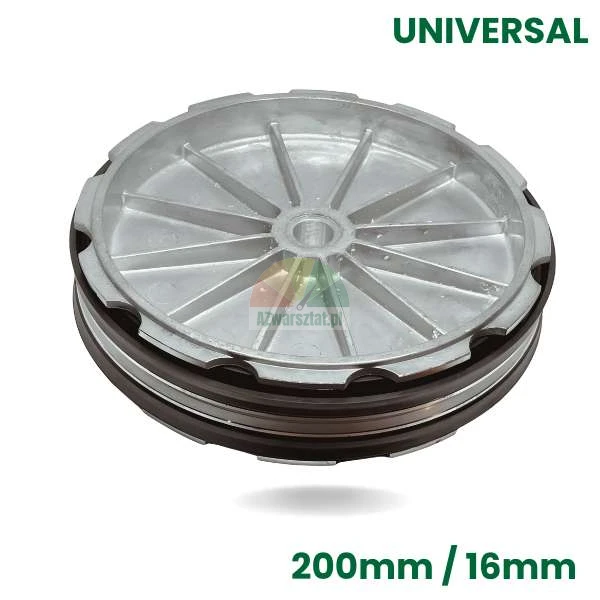

Tyre changer bead breaker cylinder piston, 200mm / 16mm (unthreaded)
A high-quality piston for the tyre changer’s bead breaker cylinder is one of the key components of the pneumatic system in professional tyre changers. This part ensures a perfect seal in the cylinder and generates the optimum force required to safely and effectively separate the tyre bead from the rim. If you notice pressure drops or a loss of power in your tyre changer, replacing this component with a new one will restore the machine to full working order.
Precise Technical Specifications

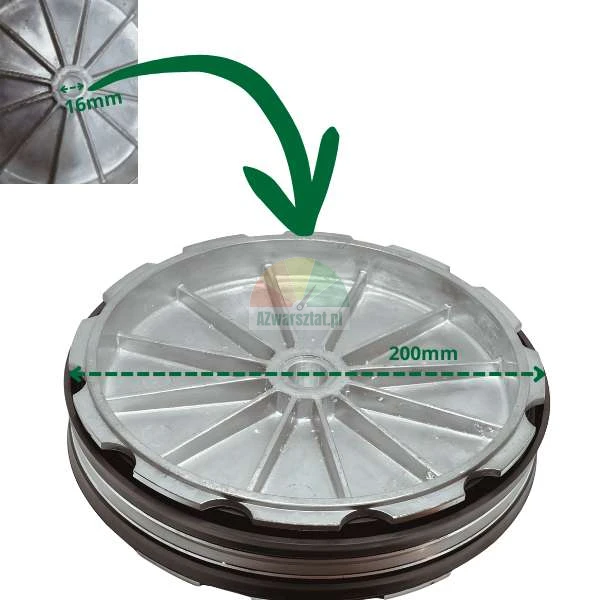

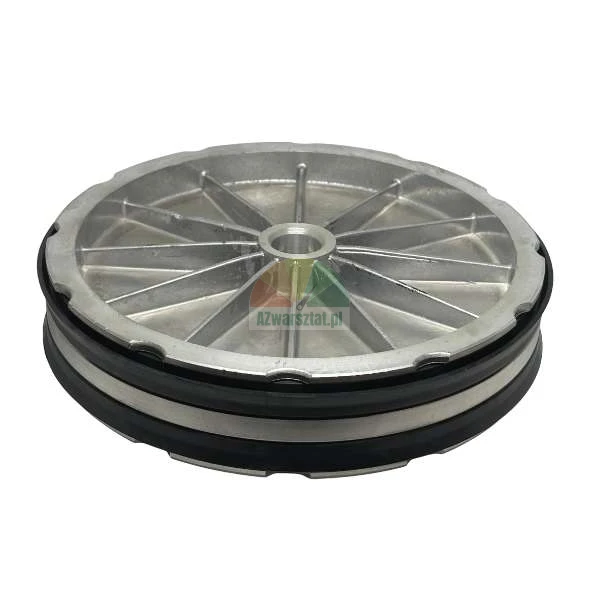

The piston is made from a highly durable aluminium alloy. It features special radial ribbing, which significantly strengthens its structure without unnecessarily increasing its weight. According to the attached specification, the product’s dimensions are as follows:
- Actual external diameter: 200 mm (perfectly suited to cylinders with a nominal diameter of 200 mm)
- Mounting hole diameter: 16 mm
- Mounting method: smooth, unthreaded bore (slide-on mounting onto the piston rod)

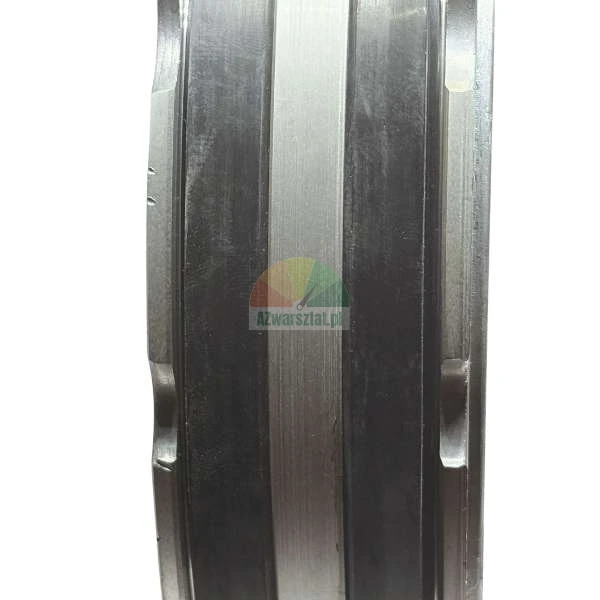

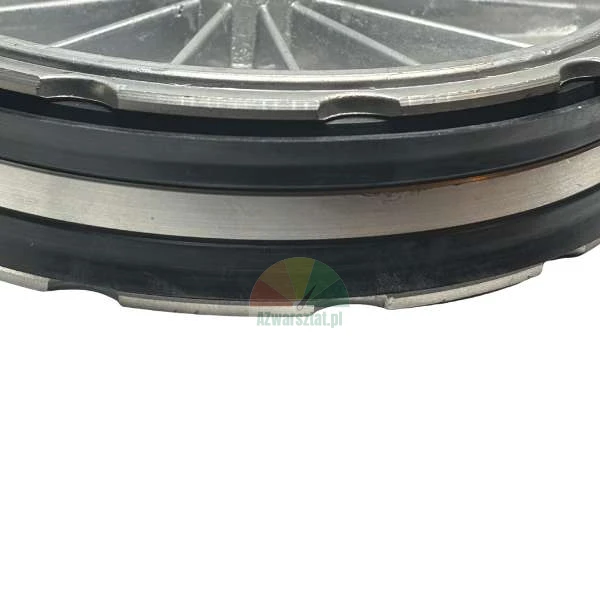

- Sealing: comes complete with an integrated, heavy-duty sealing ring

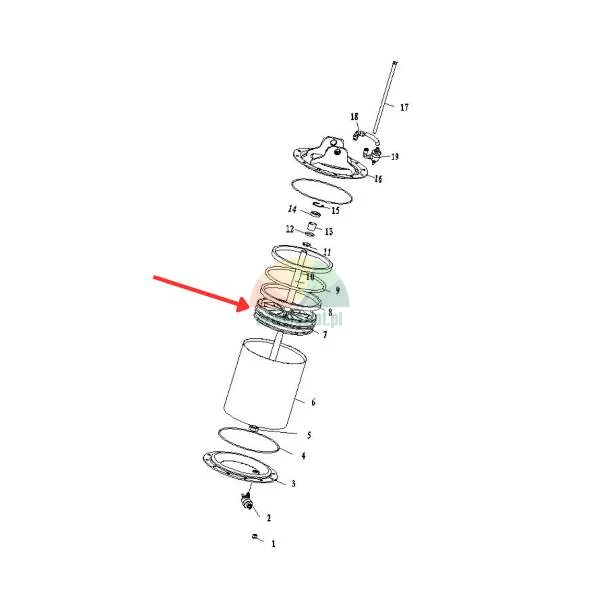

Important service note: As shown in the attached technical diagram (component indicated by the red arrow), the piston acts as the central working element moving inside the steel cylinder. Its trouble-free operation is essential for the complete sealing of the entire pneumatic mechanism.
Reliability in Your Workshop
We fully understand just how costly downtime can be for a tyre repair workshop. That is why at azworkshop.eu we offer only tried-and-tested and carefully selected spare parts that can withstand daily, intensive use. This robust piston ensures smooth operation and resistance to high operating pressures.
Choose tried-and-tested technical solutions and ensure your machines enjoy a long, trouble-free service life!
