Piston 70mm for jaw clamp actuator (under the table) or arm pivot
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-TLOK-0004
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

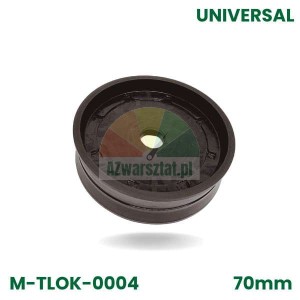

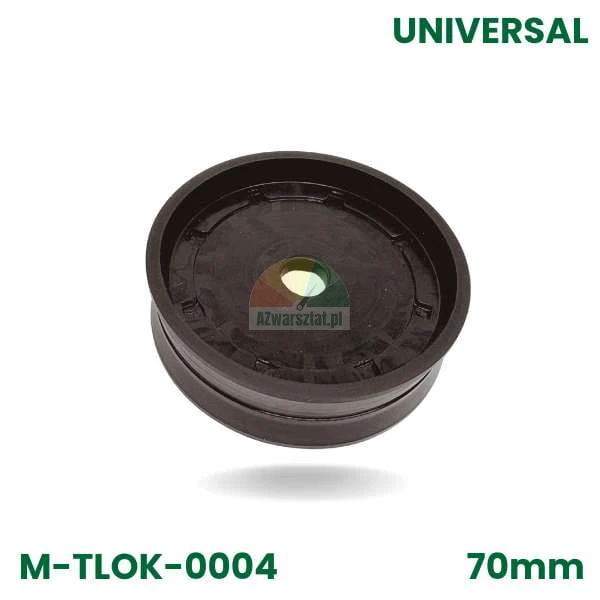

Piston 70 mm for clamping jaw / arm swing actuator – universal
A 70 mm diameter piston for the actuators used on tyre changers – both in the clamping jaw (under-table) and arm swing mechanisms. This is a universal spare part that fits many machine models from European and Asian manufacturers.
A perfect fit for cylinders with a standard piston diameter of 70 mm. Replacing the piston is a quick and economical way to restore the performance of the mechanism without having to replace the whole actuator.
Technical specifications:

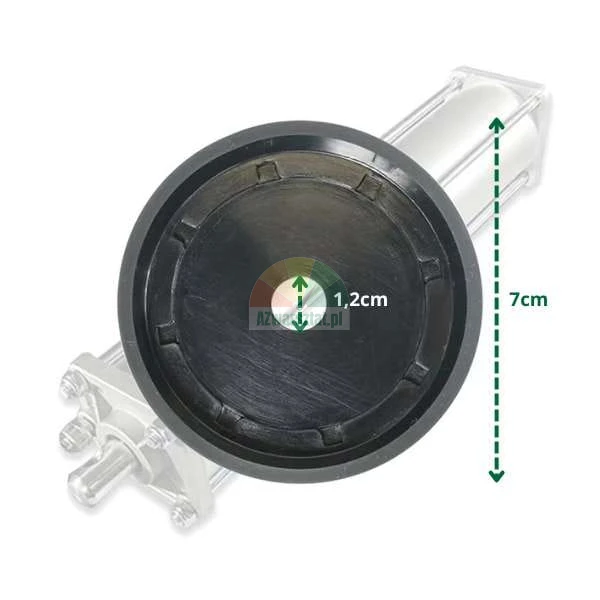

- Outer diameter: 70 mm
- Height (depth): 22 mm
- Central bore diameter: 12 mm
- Material: tough, pressure-resistant and wear-resistant plastic
- Seal kit: included – ensures tightness and long service life
- Product code: M-TLOK-0004
- Type: universal – fits many tyre changer models
Application:
The product is used in actuators mounted in:
- clamping jaw mechanisms (under-table)
- arm swing mechanisms
Made of high quality materials, the piston ensures reliable and precise operation even under conditions of intensive use. Thanks to the included seal kit, installation is quick and the tightness of the system is ensured.
Why is it worth it? The 70 mm piston is a proven solution for workshops that want to minimise service costs and keep their machines running. We offer fast delivery and expert technical advice.
Not sure if this piston will fit your machine? Contact us – our specialists will help you find the right part.
