186mm / 16mm mounting bracket cylinder piston
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-TLOK-0008
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

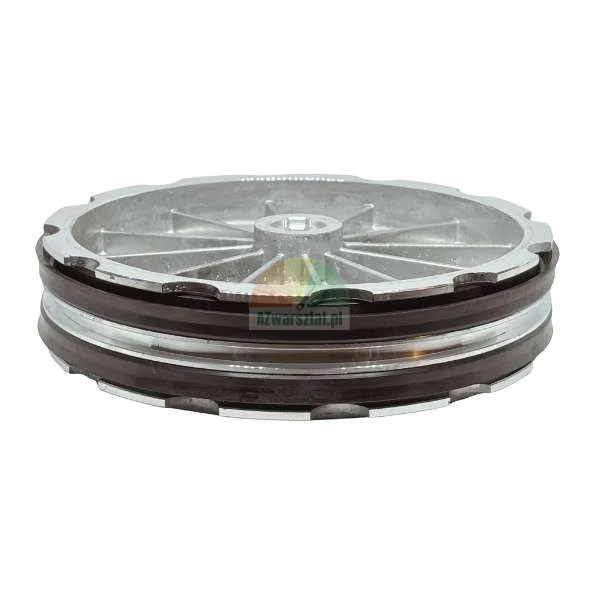

Tyre Changer Cylinder Piston 186 mm / 16 mm
The tyre changer piston is a key spare part used in tyre changers for passenger cars and light commercial vehicles. It is responsible for generating the force required to effectively separate the tyre bead from the wheel rim during demounting.
Replacing the cylinder piston is a quick way to restore the full functionality of your tyre changer — without the costly replacement of the entire cylinder!
Technical specifications
- Part type: bead breaker cylinder piston

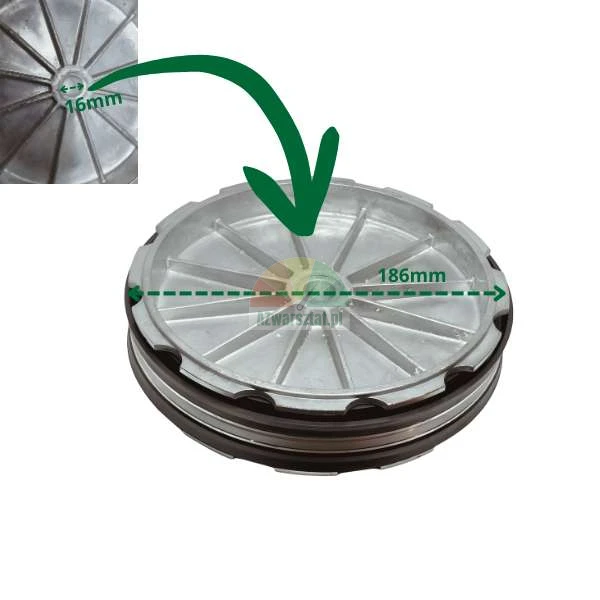

- Piston diameter: 186 mm
- Piston rod diameter: 16 mm
- Material: aluminium (according to industry standards)
- Condition: new, ready to use
Application and compatibility
- Designed for pneumatic cylinders with a cylinder diameter of 186 mm
- Fits REDATS tyre changers: M-110, M-200, M-220, M-220-3D
- Compatible with other pneumatic units from various manufacturers, provided the bead breaker cylinder has a cylinder diameter of 186 mm
Check the dimensions and type of cylinder on your machine before purchase — this will ensure full compatibility of the part with the machine.
Function and advantages
- Generates a linear movement under air pressure, allowing effective pressure of the bead breaker arm against the tyre
- Ensures efficient and safe separation of the tyre bead from the rim
- High-quality workmanship ensures long service life and reliability of the cylinder
Why choose this part?
By choosing this piston, you are investing in the reliability and efficiency of your tyre changer. It is ideal for workshops that value fast repairs and minimal downtime.
Key data summary:
- Name: Tyre changer cylinder piston 186 mm / 16 mm
- Dimensions: 186 mm (piston diameter), 16 mm (piston rod diameter)
- Application: Tyre changers (passenger cars, commercial vehicles)
- Function: to generate the force required to separate the tyre bead from the rim
Questions about compatibility? Contact our consultant — we will help you find the right part for your machine!
Product safety
Manufacturer
Jin Hoi International Trading Ltd
Office Tower 625 and 639 Nathan Rd
Rm1101-02.11 Hong Kong, China
Responsible person in the EU
Graf-Art Sławomir Kulbida
ul. Bolesława Chrobrego 38/5
59-700 Bolesławiec, Poland
Importer
LIVRE RAPIDEMENT SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ
Osiedle Mieszka I-go 4/46
26-340 Drzewica, Poland
Opinions
If you've added a review and it doesn't appear on the list, it may be pending moderation.
Leave feedback on the product
It pairs well
Piston 70mm with gasket set for jaw clamp actuator (under table) or arm swivel
Piston 75mm with gasket set for jaw clamp actuator (under table) or arm swivel
Piston 80mm with gasket set for jaw clamp actuator (under table) or arm swivel

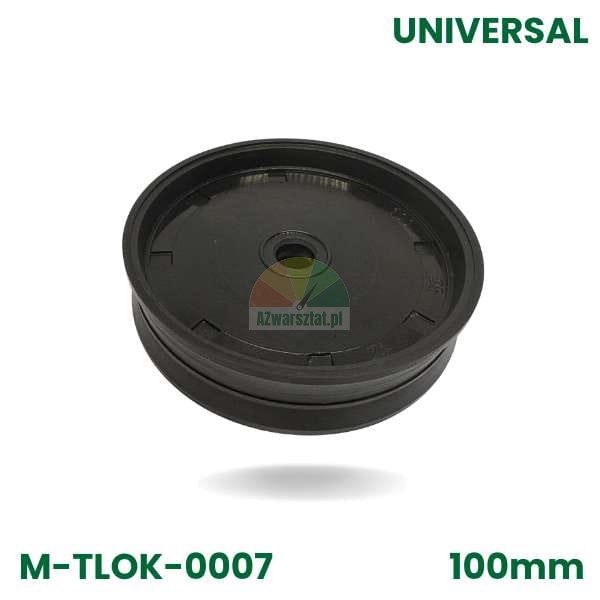

100 mm piston for the jaw clamping cylinder (under the table) or for arm deflection
