Piston 80mm with set of seals - for jaw clamp cylinder (under table) or arm swivel cylinder

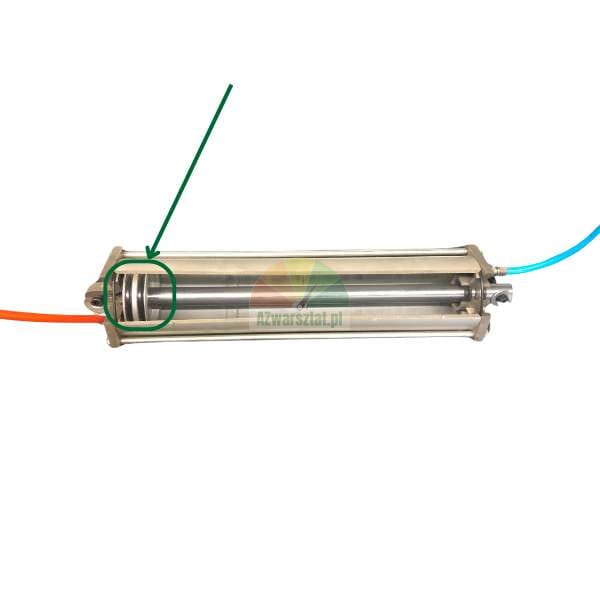

The 80mm pist on with seal set is a reliable solution for the reconditioning of hydraulic cylinders in wheel fitters. The kit fits both the jaw clamp actuator (under the table) and the arm deflection actuator, making it a versatile and practical choice for workshops and tyre services.

Ideal for quick actuator repairs without having to replace the entire component - saving time and costs!

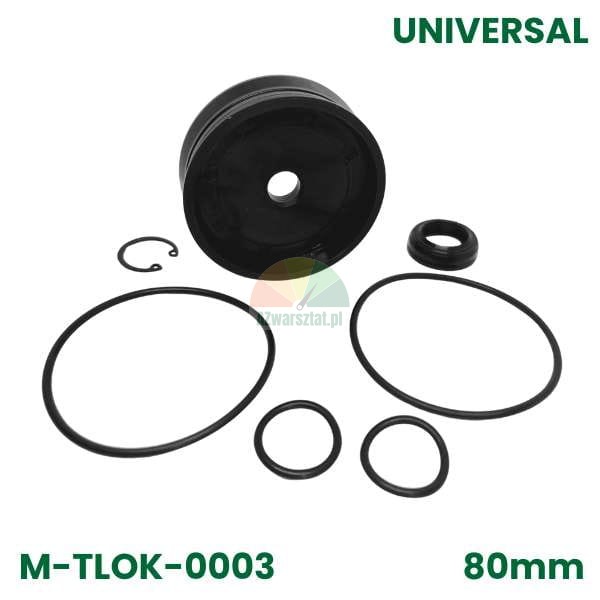

Kit contents:

1x piston with external diameter 80 mm
1x binder ring
1x piston seal
4x O-rings with different diameters
1x guide seal

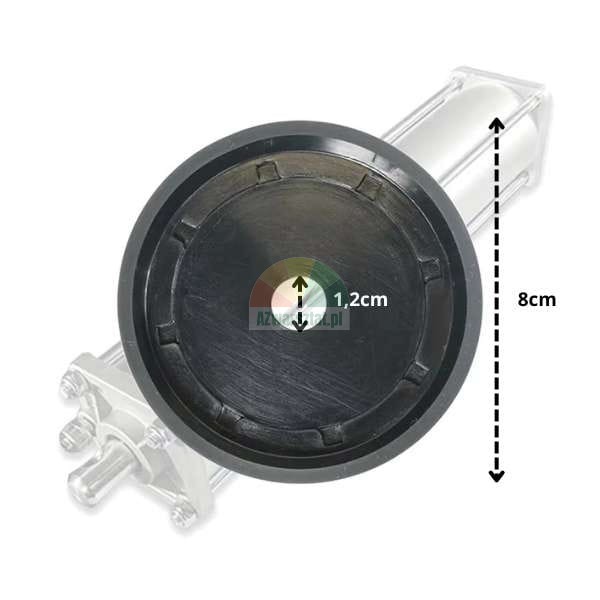

Dimensions:

Piston diameter: 80 mm
Central bore diameter: 12 mm

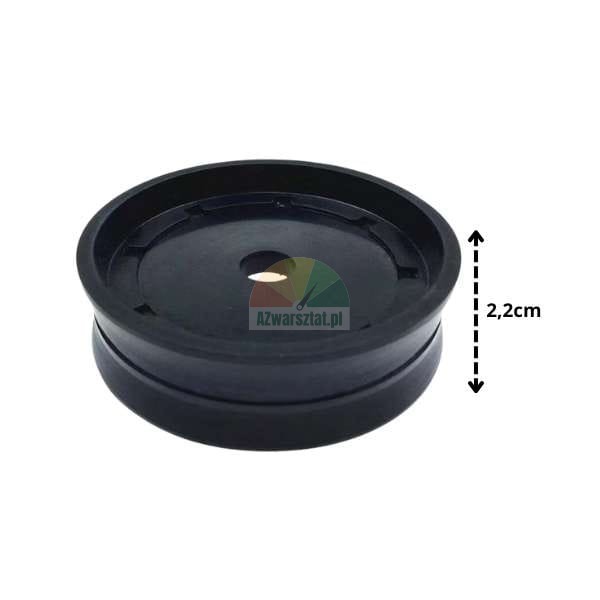

Piston height: 80 mm

Seals made of high quality materials resistant to high pressure, temperature and abrasion. They provide excellent sealing and protection against contamination, resulting in a longer service life for the actuator.

Application:

Product designed for wheel assemblers, in particular for:

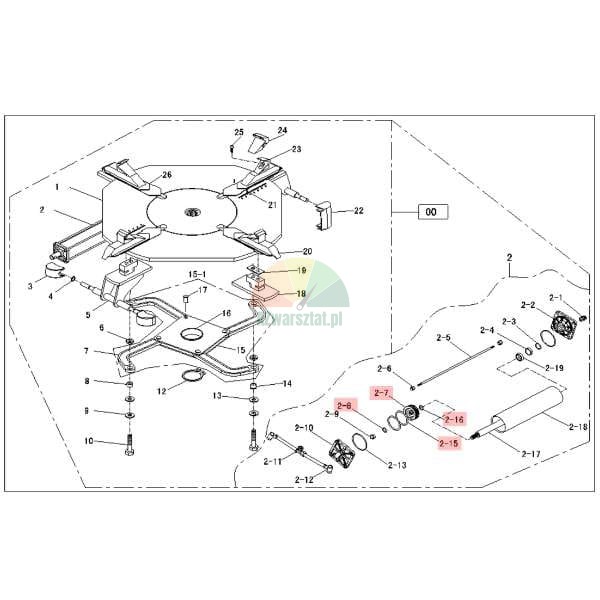

jaw clamp actuator (under the table)
Arm swing actuator

Fits many models of wheel assemblers - a universal part, but we recommend comparing the dimensions with the original piston before purchasing.

Application benefits:

High quality materials - wear resistance and long-lasting tightness
Easy installation - quick replacement without special tools
Savings - reconditioning instead of costly replacement of the entire cylinder
Versatility - compatibility with many models of assembly machines

Product code:

M-TLOK-0003

Choose a proven solution - the 80mm piston kit with seals is a guarantee of reliability, performance and savings in your workshop.
