100 mm piston for the jaw clamping cylinder (under the table) or for arm deflection
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: M-TLOK-0007
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.

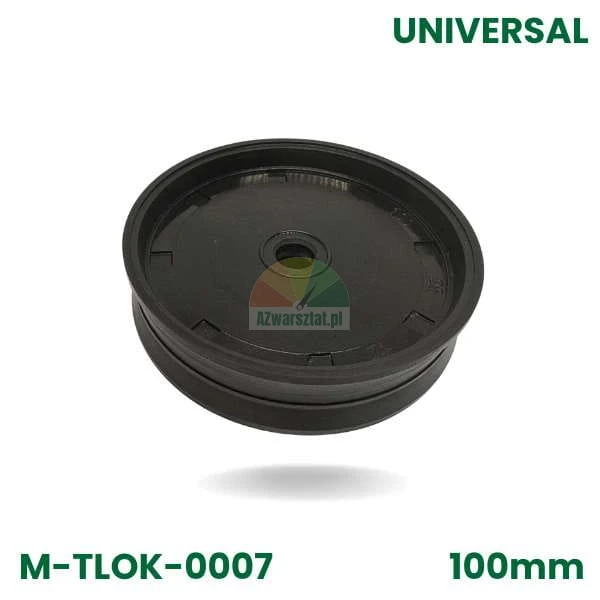

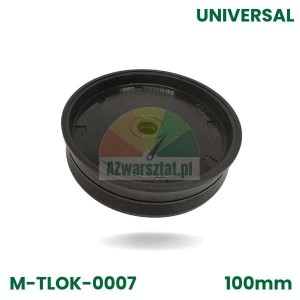

100 mm piston for the jaw clamping and arm swing cylinder
A high-quality pneumatic piston designed for professional tyre changers. It is an essential component of the pneumatic system, which works perfectly as a replacement part in jaw clamping cylinders (located under the workbench) and in cylinders responsible for column/arm deflection. Precise manufacture from durable plastic ensures excellent compatibility with seals and trouble-free operation of the machine under load.
Detailed technical specifications:
To ensure the part fits your machine perfectly, please refer to the dimensions below:

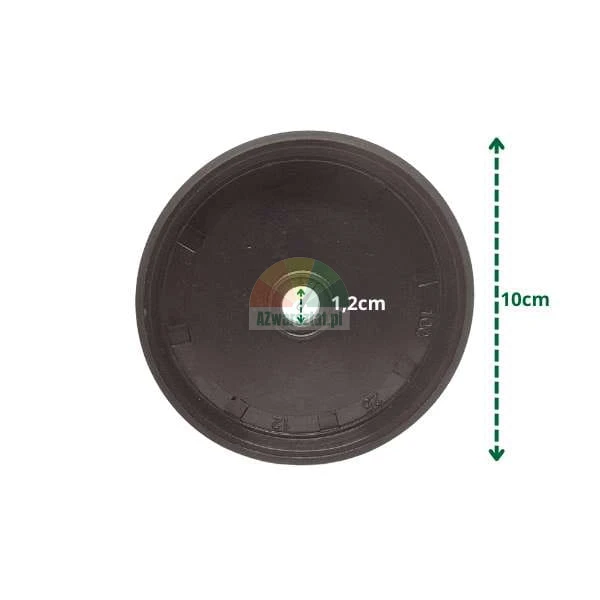

- Outer diameter (total): 100 mm
- Internal diameter (for seal): 90 mm
- Piston height: 25 mm
- Diameter of the central bore for the pin: 12 mm

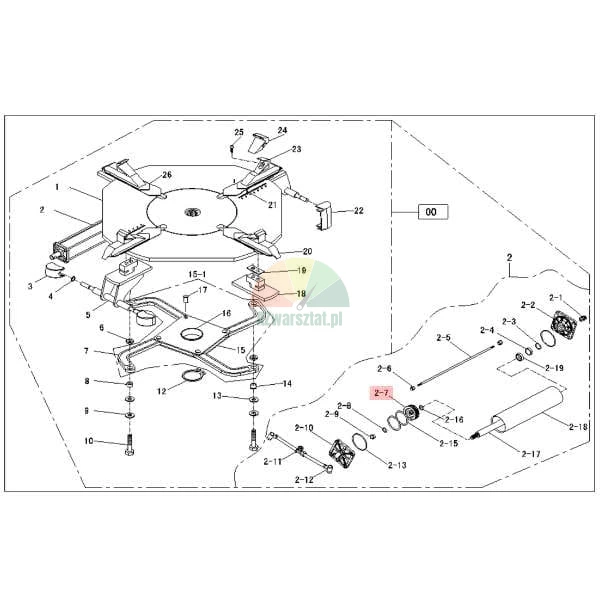

Service tip: The piston interacts with the inner surface of the cylinder (shown in the attached technical diagram). Wear on this component often manifests as a leak in the cylinder and a reduction in the clamping force exerted by the jaws on the wheel. Replacing it with a new piston from our range immediately restores the system to full working order.
Reliable parts from AZ Workshop
At the AZ Workshop online shop, we understand how important it is to maintain uninterrupted tyre service operations. Our spare parts for car lifts, wheel balancers and tyre changers are carefully selected for their durability and resistance to wear. By choosing our product, you are investing in a component that can easily withstand high air pressure and frequent operating cycles, typical of seasonal tyre changes.
