Piston 75mm with gasket set for jaw clamp actuator (under table) or arm swivel

Secure payment

30 days to return

Fast shipping

€27.52

Shipping costs are not included in the price.

Quantity

pc.

Shipping time: 24 hours

Ask about the product

Why us?

Only real product reviews.
Secure online payments.
Hassle-free returns within 14 days.
A reliable company - we have been on the market for many years.

75 mm piston with gasket set for clamping jaw or arm swing actuator

The 75 mm piston with gasket set is a high-quality repair kit for the reconditioning of cylinders used on tyre changers. It can be used on both clamping jaw (under-table) and arm swing cylinders. The kit ensures a tight, durable and reliable operation of the hydraulic or pneumatic system.

Ideal for actuator repair without replacing the entire component. Fits many tyre changer models available on the market.

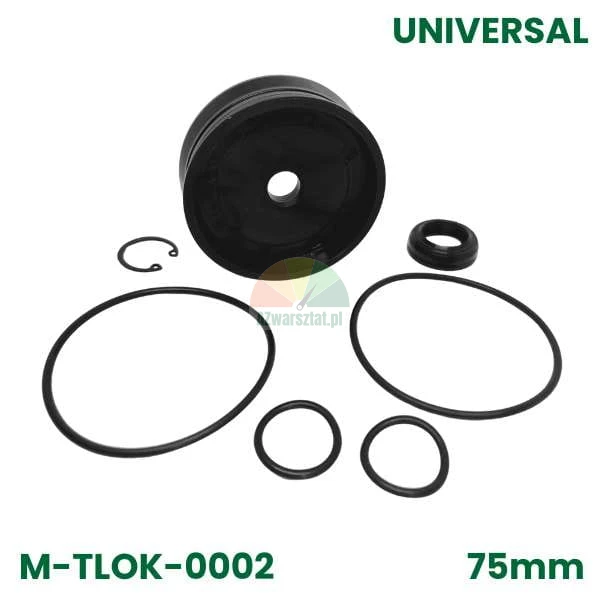

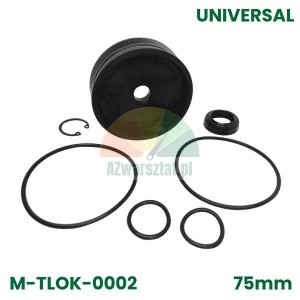

The kit includes:

1x 75 mm diameter piston
1x circlip (snap ring)
1x piston guide
4x O-ring seals of different diameters

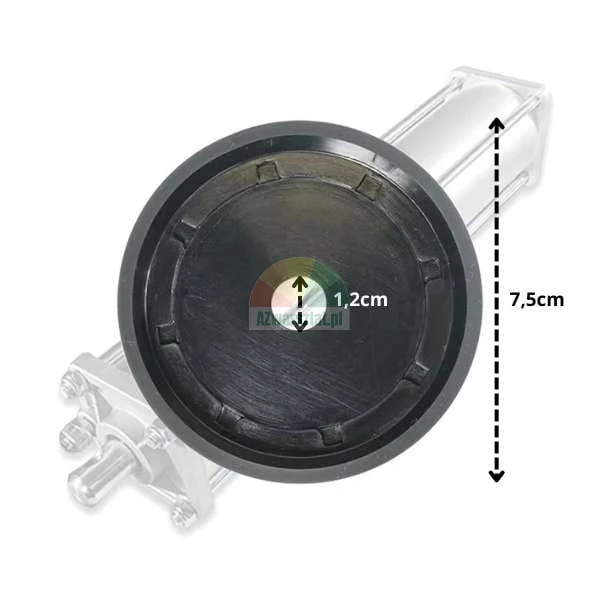

Piston dimensions:

Outer diameter: 75 mm
Central bore diameter: 12 mm

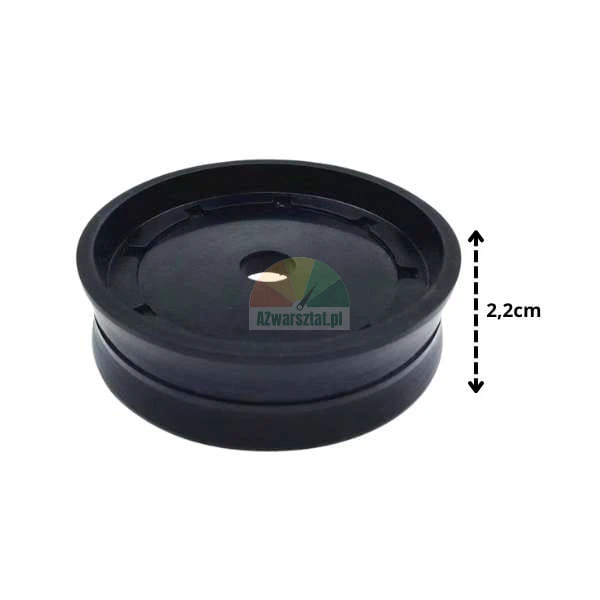

Piston height: 22 mm

All components are made of materials resistant to wear, high pressure, temperature and hydraulic oil. As a result, the set guarantees a long service life and minimises the risk of failure.

Application:

Universally applicable for cylinders mounted on tyre changers, wheel balancers and car lifts. Particularly recommended for actuators responsible for clamping jaw operation and arm swing.

Benefits:

Optimum leak tightness - ensures stable operating pressure and actuator performance
Easy installation - fast assembly without the need for special tools
High durability - resistant to abrasion, temperature and hydraulic oil
Savings - cylinder reconditioning instead of costly replacement of the whole component

Part number: M-TLOK-0002

Any doubts about compatibility? Contact us - our specialists will help you choose the right set for your machine.
