Piston 70mm with gasket set for jaw clamp actuator (under table) or arm swivel

Secure payment

30 days to return

Fast shipping

€27.52

Shipping costs are not included in the price.

Quantity

pc.

Shipping time: 24 hours

Ask about the product

Why us?

Only real product reviews.
Secure online payments.
Hassle-free returns within 14 days.
A reliable company - we have been on the market for many years.

70 mm Piston with Gasket Set for Clamping Jaw or Swing Arm Cylinder

High-quality 70 mm diameter piston with a complete set of gaskets for tyre changer cylinders. Designed for cylinders controlling the clamping jaw (under the table) or swing arm movement. Ideal for vulcanising workshops, tyre repair shops and companies reconditioning wheel service machines.

Universal application: fits many models of tyre changers available on the market.

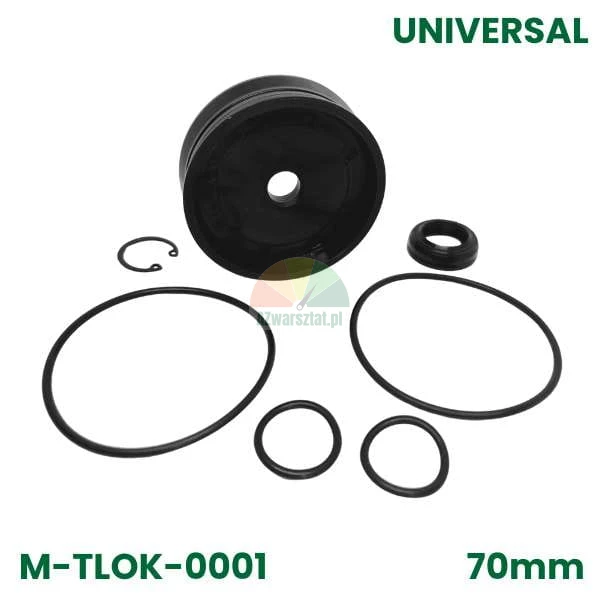

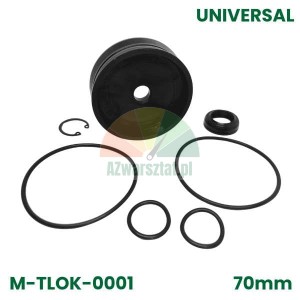

The set consists of:

1x piston with outer diameter 70 mm
1x retaining ring
1x piston seal
4x O-rings of different diameters
1x thrust ring

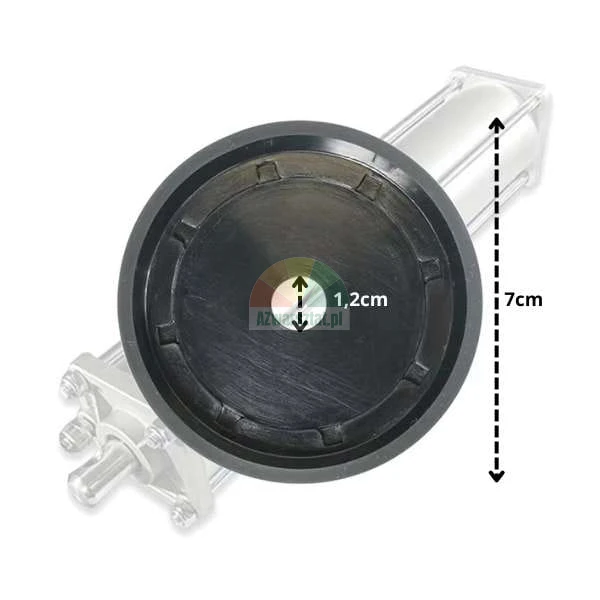

Technical specifications:

Outer diameter of piston: 70 mm
Central bore diameter: 12 mm

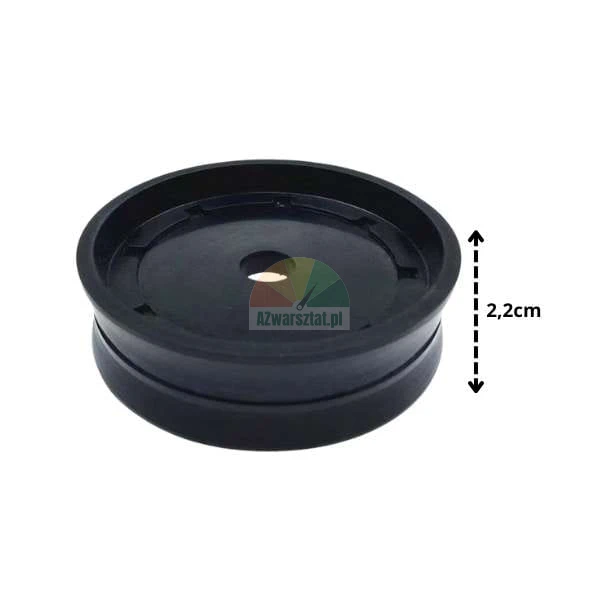

Height (depth): 22 mm

Product highlights:

Complete cylinder repair kit
High-quality materials – resistant to wear and corrosion
Optimal sealing of the hydraulic system
Long service life and reliability in daily use

Application:

The product is designed for the cylinders of tyre changers controlling the clamping jaw or swing arm movement. It is suitable for daily use in garages, tyre service centres and repair shops.

Product code: M-TLOK-0001 – check compatibility with your machine model before purchasing.

Manufacturer

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

+48534920100 slawek@graf-art.pl

Responsible person in the EU

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

534920100 slawek@graf-art.pl
