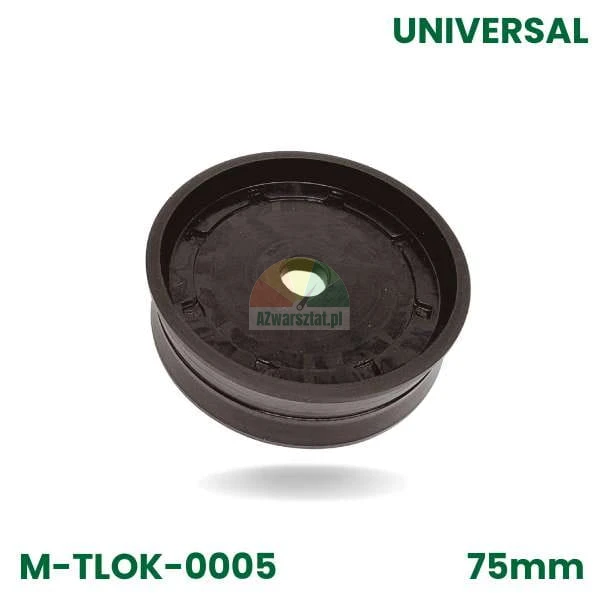

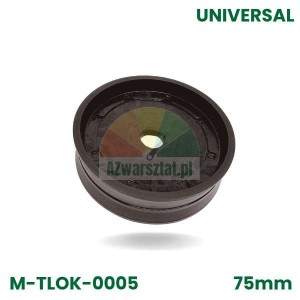

Piston 75mm for the jaw clamp actuator (under the table) or arm deflector

The 75mm diameter piston is a high quality spare part for the actuators used on wheel fitters and other workshop machines. It can be used in both the jaw clamp actuator (under the table) and the arm deflection actuator.

Universally applicable - fits many models of assembly machines from various manufacturers!

The product ensures reliable and precise operation in pneumatic systems where accuracy, tightness and durability are required. Thanks to the use of robust wear-resistant plastic, the piston guarantees a long service life even under intensive workshop conditions.

Technical specifications:

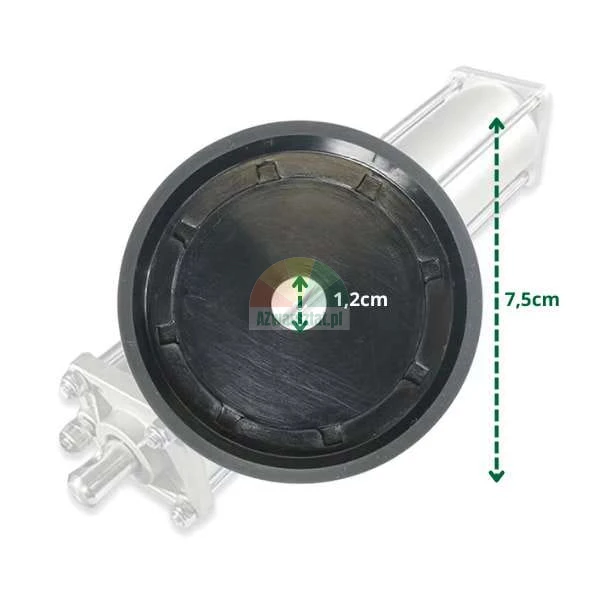

Outer diameter: 75 mm

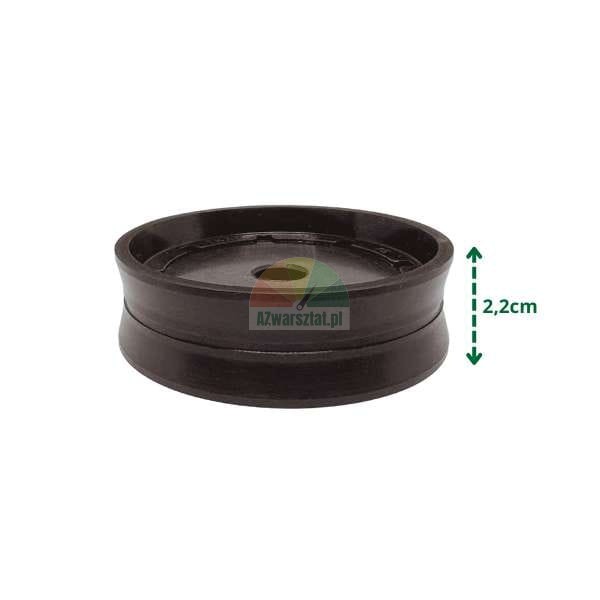

Piston height: 22 mm (2.2 cm)
Central bore diameter: 12 mm (1.2 cm)
Material: Durable, wear-resistant plastic
Product code: M-TLOK-0005

An ideal choice for cylinder reconditioning - ensures tightness and proper operation of the entire pneumatic system. Great for machines requiring precise clamping or deflection of components.

Application:

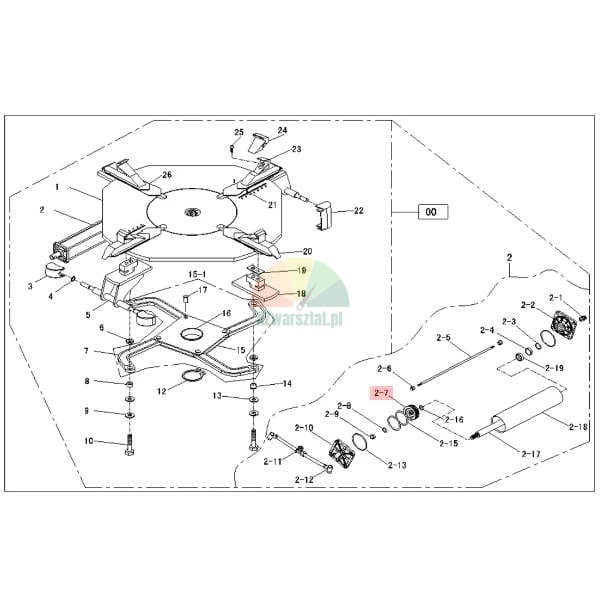

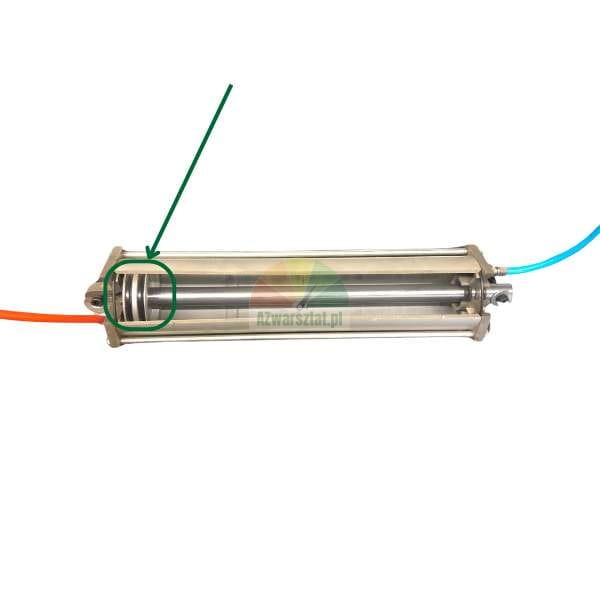

Jaw clamp actuators (under the table)
Mounting arm deflection cylinders
Tyre changers, jacks, other workshop machines
Machines of different brands - universal part

Main advantages:
- Precise operation thanks to perfectly matched seals
- Resistant to wear and operational conditions
- Easy installation and long service life
- Compatible with many machine models

Looking for tried-and-tested components for assembly machines, balancing machines or jacks? Check out our full range and choose the parts that will ensure your machines' long and trouble-free operation.
