ATH-Heinl replacement: aluminium air distributor M32, M52, M72, M72Z
High-quality replacement air manifold for ATH-Heinl tyre changers - compatible with M32, M52, M72 and M72Z models. This is a reliable solution for workshops that want to restore the performance of their machine quickly and economically.
Material: Robust aluminium ensures resistance to corrosion and mechanical damage, resulting in a long service life even under intensive use.
Compatibility: M32, M52, M72, M72Z - fully compatible with the original ATH-Heinl distributor.
Product features:
- Made from lightweight and durable aluminium
- Fitted with four brass valves with precision threads
- Standard pneumatic connections - quick and trouble-free installation
- Stable mounting base with screw holes
- Colour: silver with brass elements
- Manufacturer number: RVB0972 (depending on version)
Application:
The manifold controls the air flow in the pneumatic systems of tyre changers. It is essential for the correct operation of the assist arm and other machine functions. Ideal for tyre service workshops, tyre repair shops and service centres.
Why is it worth it? It is a fully-fledged replacement for the original - offering high build quality, full compatibility and an attractive price. Ready for immediate installation, with no modifications required.
Dimensions (based on preview photo):
- Overall length (with pins): approx. 145 mm
- Length of aluminium body: approx. 100 mm
- Width of mounting base: approx. 35 mm
- Distance between mounting holes: approx. 80 mm

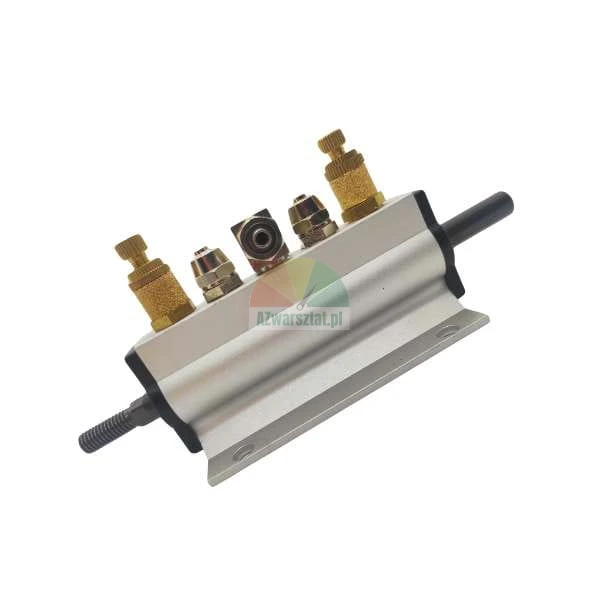

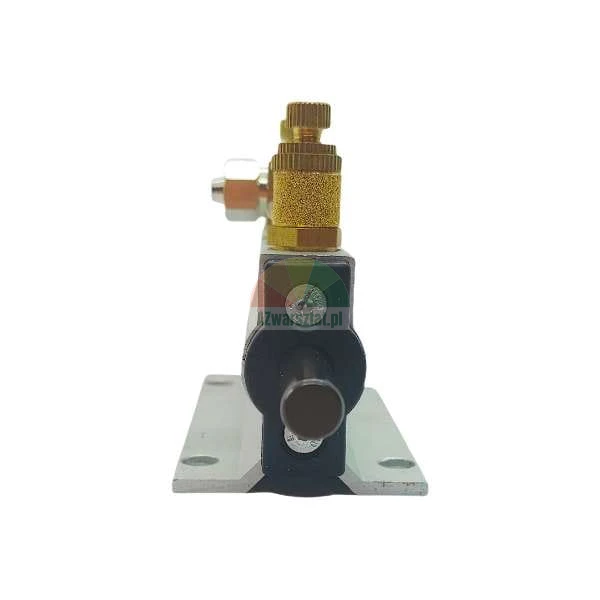

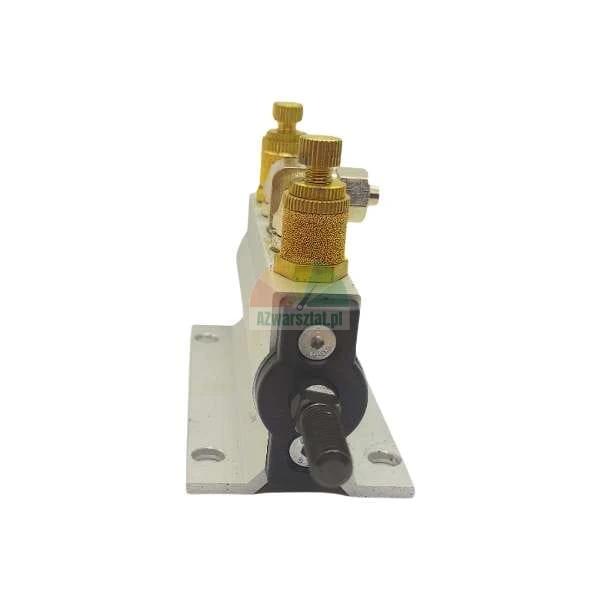

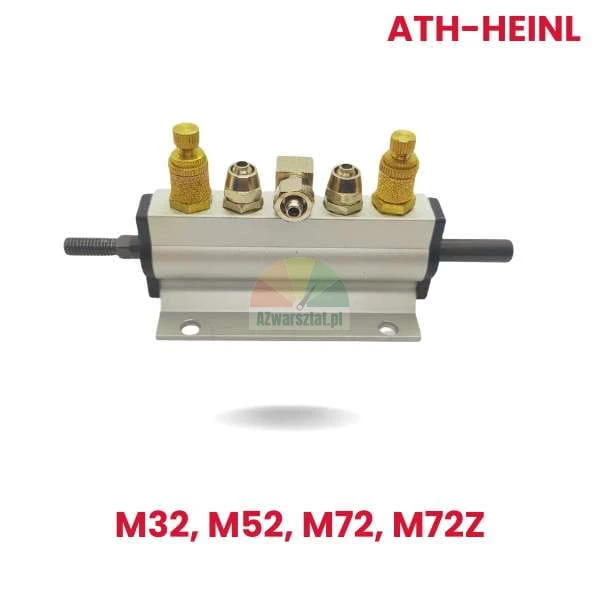

Product photo:
The picture shows an aluminium air manifold with four brass valves and a mounting base with holes. The pneumatic connections are visible and the compact design is approximately 145 mm long.
A replacement fully compatible with the original - an ideal choice for service technicians looking for a more economical but equally effective alternative.
