Replacement ATH-Heinl: ATH M32 1-speed rotary switch

The ATH M32 1- speed rotaryswitch is a high-quality replacement for ATH-Heinl brand wheel assemblers, in particular the ATH M32 model. The product is made of durable materials, ensuring reliable operation and long service life under intensive workshop use.

Perfect fit for ATH M32 machines - no modifications or adaptations required.

Technical specifications:

Rated voltage: 220-380V
Maximum power: up to 18 kW
Rated current: 40 A
Number of phases: 3 (three-phase)
Degree of protection: IP54 - dust and splash proof

Features and benefits:

Precise and smooth switching of one gear
Stable screw connections
High durability and resistance to workshop conditions
Compatible with ATH-Heinl assembly units, including ATH M32
Replacement product - economical alternative to the original
Meets safety and quality standards

Dimensions:

Body diameter: approx. 50 mm
Overall height (with axle): approx. 85 mm
Length of axle itself: approx. 20 mm
Width of mounting base: approx. 45 mm

Application:
The switch is used on wheel assemblers, particularly on ATH M32 models. It can also be used on other workshop machines that require a switch with similar technical characteristics.

Opt for a proven replacement - save money without compromising on quality!

Product photo:

Obrotowy przełącznik ATH M32

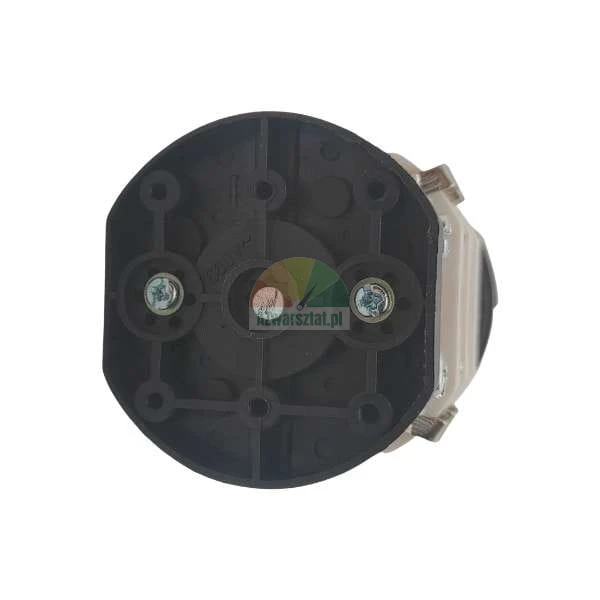

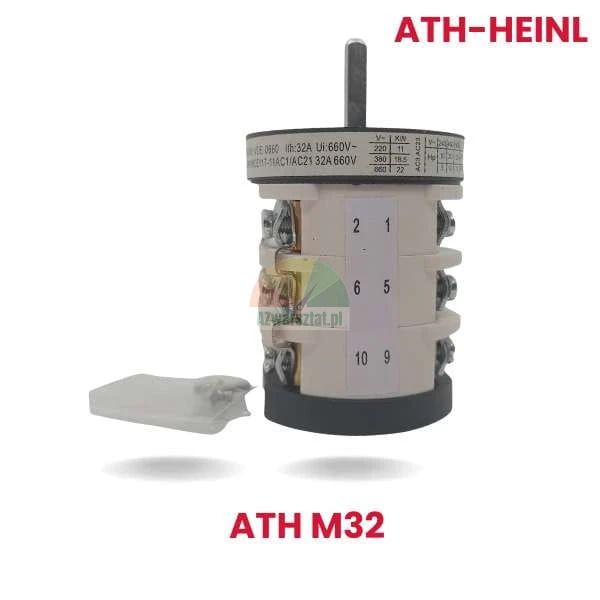

Pictured: ATH M32 1-speed rotary switch - visible dimensions: body diameter approx. 50 mm, overall height approx. 85 mm, axis length approx. 20 mm, mounting base width approx. 45 mm.
