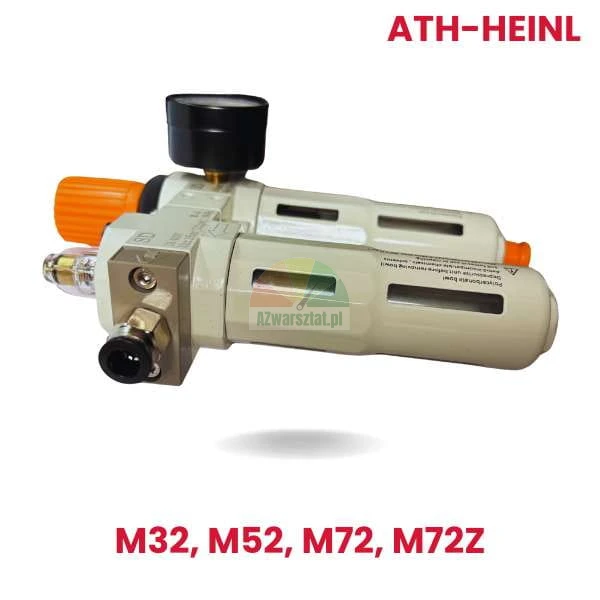

ATH-Heinl replacement: Complete compressed air service unit Type D - M32, M52, M72, M72Z

The Type D complete compressed air service unit is a high-quality replacement for original ATH-Heinl components, designed for wheel assemblers, wheel balancers and vehicle jacks. It ensures effective filtration, regulation and oiling of the compressed air, resulting in a longer service life of the pneumatic equipment.

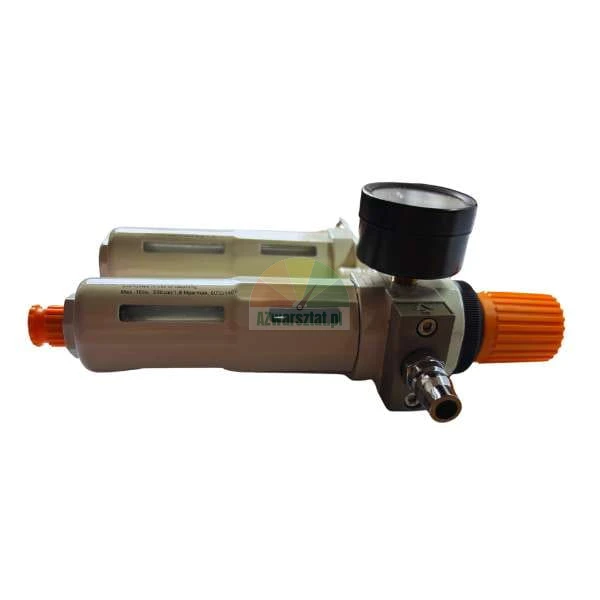

The kit includes a complete FRL unit (filter, regulator, oiler) with pressure gauge - ready for installation with no modifications required.

Key features and benefits:

Universal application: Compatible with ATH-Heinl models: M32, M52, M72, M72Z.
Pressure control: Integrated regulator with precision dial allows the working pressure to be adjusted to the needs of the unit.
Analogue pressure gauge: 0-220 psi / 0-16 bar range - easy reading of current pressure.
Filtration and oiling: Ensures cleanand properly oiled air to protect pneumatic components from wear.
Oil and filter level sight glass makes it easy to check the condition of the unit on an ongoing basis.
Condensate drain valve: Allows the tank to be quickly emptied of accumulated water.
Robust construction: Resistant to workshop conditions, guarantees long and trouble-free operation.
Easy installation: Standard 1/4" threads allow quick installation on most pneumatic systems.

Technical specifications:

Type: FRL - filter, reducer, oiler
Working pressure: up to 10 bar (145 psi)
Connection threads: 1/4"
Height: approx. 195 mm
Width: approx. 150 mm
Depth: approx. 85 mm (with knob and fittings)

Application:

Ideal for ATH-Heinl wheel assemblers, wheel balancers and car jacks and other pneumatic equipment requiring precise air filtration and adjustment. Indispensable for workshops that want to restore their machines to full working order without investing in expensive original parts.

Tip: Regular maintenance of the compressed air service unit significantly increases operational safety and extends the service life of pneumatic tools.

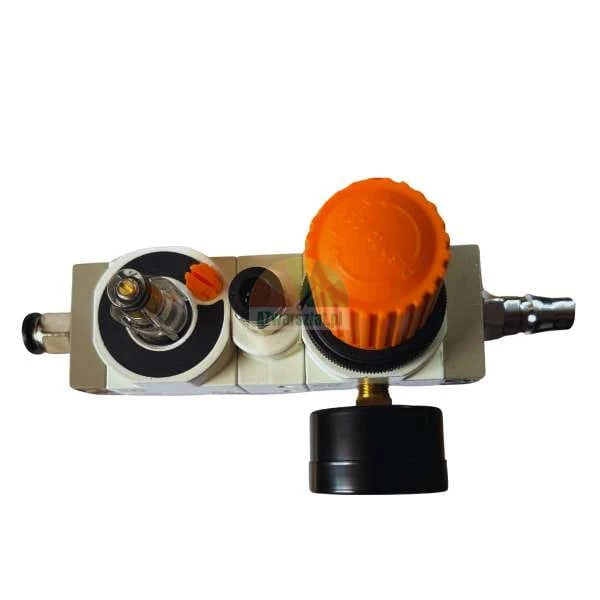

Product photo:

Jednostka serwisowa sprężonego powietrza Typ D

Dimensions shown in the photo: height approx. 195 mm, width approx. 150 mm, depth approx. 85 mm.

Note: Make sure your machine has a type D service unit before purchasing - compare the appearance and dimensions with the photo.
