ATH-Heinl replacement: Under-table air distributor M52, M72, M72Z

High-quality air distributor designed for ATH-Heinl wheel assembly machines, models M52, M72, M72Z. It is a replacement for the original part, mounted under the assembly table, and is responsible for the precise distribution of compressed air to the pneumatic cylinders.

The distributor ensures smooth and reliable operation of the deflector and other pneumatic components, which translates into trouble-free operation of the assembler in daily use.

Why choose this product?

Fully compatible with ATH-Heinl models: M52, M72, M72Z
Perfect fit to the original dimensions - guaranteed reliability
High-quality workmanship with aluminium and brass fittings
Resistant to pressure and mechanical damage
Easy installation without interfering with the machine structure

Technical specifications:

Type: air distributor (replacement)
Material: aluminium + brass connectors
Number of air outlets: 4 (2 bottom connectors, 2 side connectors)
Inner bore diameter: approx. 50 mm
Overall outer diameter: approx. 90 mm
Overall height: approx. 45 mm

The product is ideal for tyre services and garages that expect reliability and durability in the daily operation of their equipment.

Application:

The manifold directs compressed air to the appropriate cylinders, enabling the assembly table function to operate correctly. It is a key component of the pneumatic system that affects the efficiency and safety of the machine.

Fits models:

ATH-Heinl M52
ATH-Heinl M72
ATH-Heinl M72Z

Looking for a proven replacement at a good price? This distributor is a practical and economical solution for your workshop.

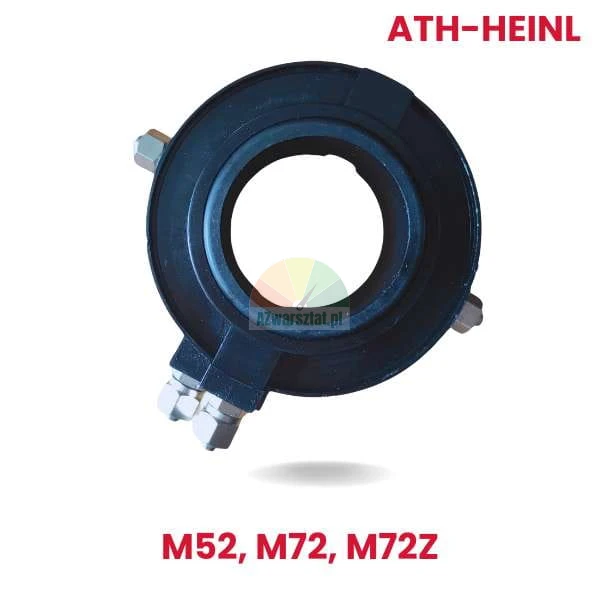

Product photo:

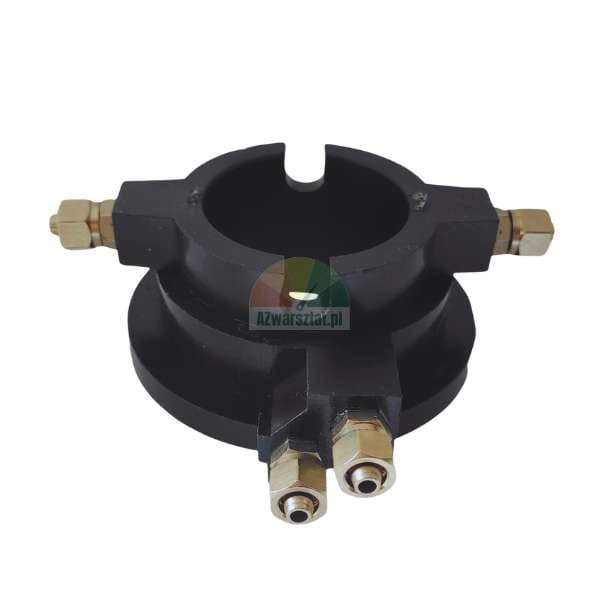

Rozdzielacz powietrza ATH-Heinl M52 M72 M72Z

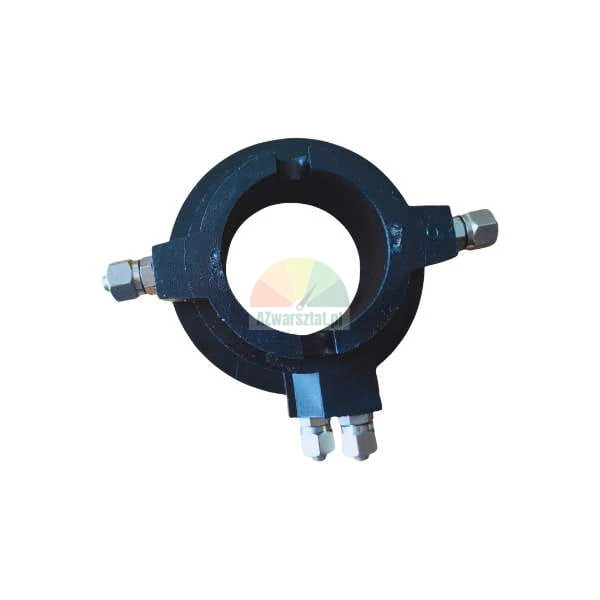

Pictured: air manifold with dimensions: outer diameter approx. 90 mm, inner bore diameter approx. 50 mm, overall height approx. 45 mm.

Order today and restore the full performance of your ATH-Heinl assembly unit!
