ATH-Heinl replacement: pedal valve block - complete, aluminium 460, 1460, 900, 1900, 980, 1980

Secure payment

30 days to return

Fast shipping

€58.07

Shipping costs are not included in the price.

Quantity

pc.

Shipping time: 24 hours

Ask about the product

Why us?

Only real product reviews.
Secure online payments.
Hassle-free returns within 14 days.
A reliable company - we have been on the market for many years.

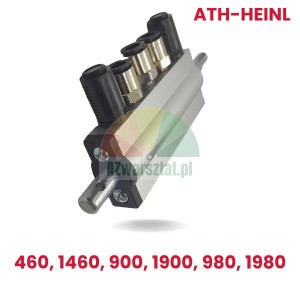

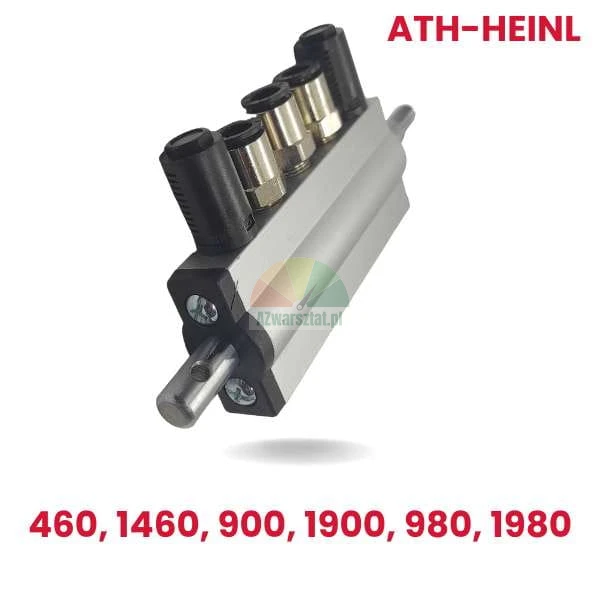

ATH-Heinl replacement: pedal valve block – complete, aluminium

We offer a complete pedal valve block made of high-quality aluminium, which is a fully compatible replacement for ATH-Heinl workshop machines. The product ensures precise air control in the pneumatic system, which translates into reliable and safe operation of equipment such as tyre changers, wheel balancers and vehicle lifts.

Compatible with ATH-Heinl models: 460, 1460, 900, 1900, 980, 1980 – ideal for use on tyre changers, wheel balancers and vehicle lifts.

Product highlights:

Complete set ready to install
High-quality aluminium – lightweight, corrosion-resistant and durable
Precision-machined for a perfect fit
4 pneumatic quick-release couplings for easy connection
Threaded shaft end (M8) on one side
Resistant to high pressure and varying operating conditions

Replacing the valve block is a fast and effective way to restore full performance and avoid costly workshop downtime.

Application and compatibility:

ATH-Heinl models: 460, 1460, 900, 1900, 980, 1980

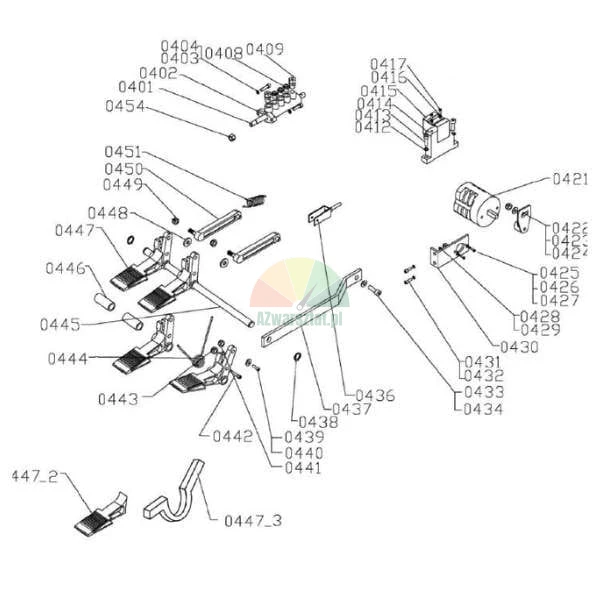

Assembly drawing numbers: 0401, 0402, 0408, 0409
For tyre changers, wheel balancers and vehicle lifts

Dimensions (based on illustrative photo):

Overall length (with shafts): approx. 125 mm
Length of aluminium body: approx. 80 mm
Body diameter: approx. 30 mm
Shaft diameter: approx. 10 mm
M8 thread on one end

ATH-Heinl pedal valve block - dimensions

Illustrative photo: View of the valve block with component dimensions

Please note: This product is not an original ATH-Heinl part, but a high-quality replacement that is fully compatible with the models listed.

Why choose our product?

Meets high quality standards
Economical and reliable solution for workshops
Expert advice and technical support
Fast shipping and competitive price

Choose a proven replacement for the pedal valve block and ensure long, trouble-free operation of your workshop machines.

Number of ratings: 0

Rate and review

Security

You can feel completely safe when shopping in our online store.

Check

Delivery

Fast delivery via DPD. Your package will arrive within 3 days.

Check

Payment

Among the various payment methods, choose the best option for yourself.

Check

Technical consulting

Ask our specialist. We'll help.

shop@azworkshop.eu

Free shipping

Free shipping for purchases of 50€ or more.

Do you need help?

We are here to make your choice easier and speed up the repair.

Module informational graphic — Want to know more? Check out our knowledge base.
**Go to the blog.**

Talk to our customer service team.
Monday to Friday from 9:00 AM to 3:00 PM.

📞 Call or send a message—we'll recommend the best solution:

+48 534 920 100

Call charges according to your operator's rates.

Frequently Asked Questions

What cables do I need for my two-post lift?

Check the rope termination. If there are any markings on it, the total rope length is very often indicated as well, e.g., L8920. This means the rope length is 8.92 m.

Additionally, to correctly select the rope, you need to provide the following technical parameters:

Rope diameter – measured in the middle section (e.g., 8 mm, 9 mm or 10 mm)
Thread – diameter (e.g., M16)
Thread – length – length of the threaded section (e.g., 14 cm)

The drawing below shows the parameters that must be provided when ordering the rope:
Ropes parameter

What is my machine's model?

Find the nameplate on the device – it usually contains key information, such as:
- Manufacturer
- Device model
- Year of manufacture
- Serial number
If you cannot find the nameplate and do not have the technical documentation, selecting parts based on the model may be difficult. In this situation, we recommend searching for parts by category, photos, and dimensions, which often allows you to precisely match the correct component.

Can I return or exchange the part if it doesn't fit?

Yes, of course.

If the ordered part doesn’t fit, you can return or exchange it within 30 days of the purchase date.

For the return to be accepted, the part must:

be unused and undamaged,
show no signs of installation,
be sent back in its original or appropriately secured packaging.

We care about your shopping experience, so the return process is quick and hassle-free. If you have any doubts, contact us – we’ll be happy to help you choose the right part or guide you through the return process.
