ATH-Heinl replacement: Complete compressed air service unit for M52, M32, M72, M72Z assemblers

High-quality replacement of the complete compressed air service unit for ATH-Heinl brand assembly machines. The product is fully compatible with models: M52, M32, M72, M72Z.

The unit is responsible for precise oil dosage to the compressed air and its filtration, which ensures reliable and trouble-free operation of the machines in workshop conditions.

Made of durable materials to high quality standards - a guarantee of long service life and resistance to intensive use.

Key features:

Precision pressure gauge - enables accurate control of operating parameters.
Pressure regulator with locking device - ensures stable settings.
Air filter and lubricator - integrated into one housing for space saving.
Complete mounting kit - includes bracket and fittings.
Easy installation and operation - quick replacement without the need for specialist tools.

Technical data:

Overall height: approx. 190 mm
Width (with pressure gauge): approx. 170 mm
Connection diameter: standard 1/4"
Working pressure: up to 10 bar

Ideal for garages that want to maintain the high performance of their assembly machines without incurring the cost of buying original parts.

Application:

Product designed for wheel assemblers - provides effective lubrication and air filtration, which protects the pneumatic cylinders and other system components from wear.

By choosing this replacement, you are investing in quality, reliability and economy.

Product photo:

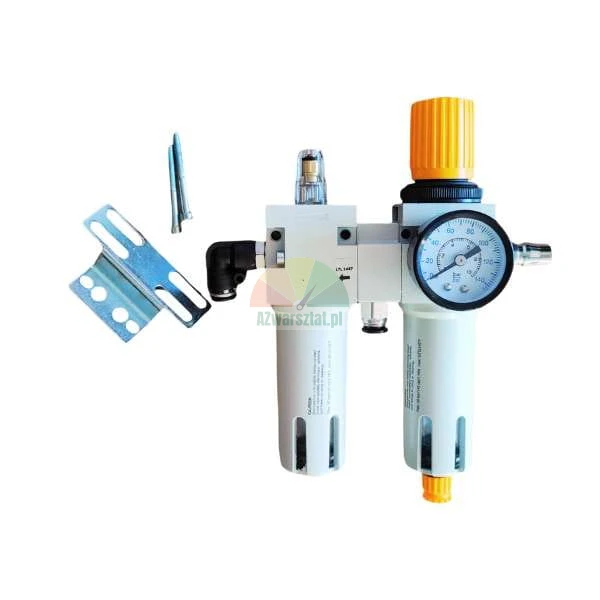

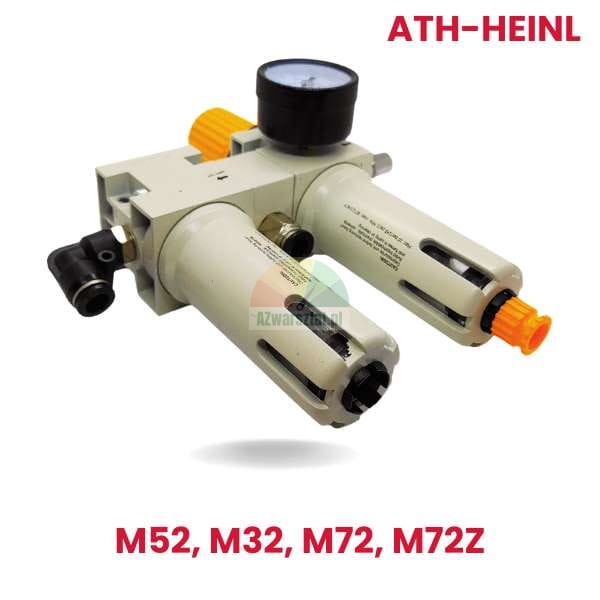

The photo shows a complete compressed air service unit with dimensions: height approx. 190 mm, width with pressure gauge approx. 170 mm. Visible are the pressure gauge, regulator, filter and lubricator in one housing and the mounting fittings.

Jednostka serwisowa sprężonego powietrza ATH-Heinl zamiennik
