ATH-Heinl replacement: Rotary switch - 2 gears M52, M72, M72Z
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: ath-35
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
ATH-Heinl replacement: Rotary switch - 2 speeds M52, M72, M72Z
High-quality replacement for the 2-speed rotary switch for tyre changers of the renowned ATH-Heinl brand. Compatible with models: M52, M72, M72Z. Allows convenient and precise change of the direction of rotation during tyre mounting and demounting.
Perfectly compatible with original ATH-Heinl equipment - no modifications required! The ideal solution for workshops looking for reliable spare parts for two-speed tyre changers.
Key features:
- Compatibility: M52, M72, M72Z
- 2 speeds: precise control of machine operation
- Robust design: resistant to overload and high temperatures
- Easy to fit: compatible with factory sockets - quick replacement without modification
- High build quality: durable materials for long service life
Technical specifications:
- Type: 2-speed rotary switch
- Standard: EN 60947-1
- Rated current: 32 A
- Voltage: 690 V
- Dimensions (approximate): overall length: approx. 10.5 cm, diameter: approx. 4.5 cm, stem length: approx. 2.5 cm
Application: The switch is ideal for professional workshops where ATH-Heinl tyre changers are used intensively - also for handling low-profile and UHP tyres.
Product photo:

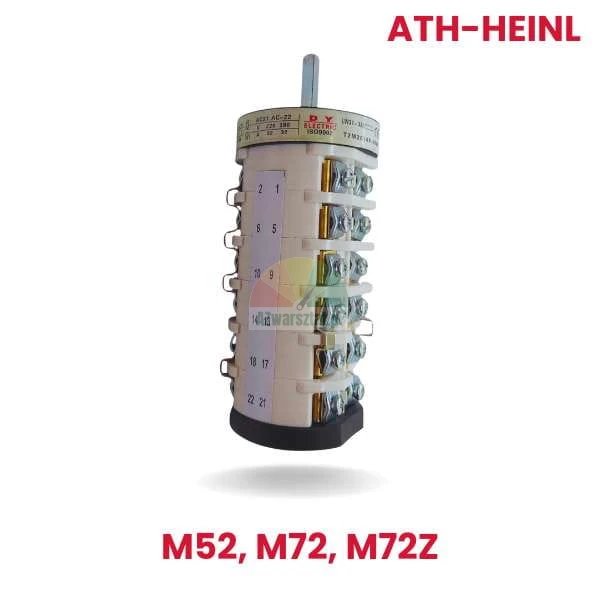

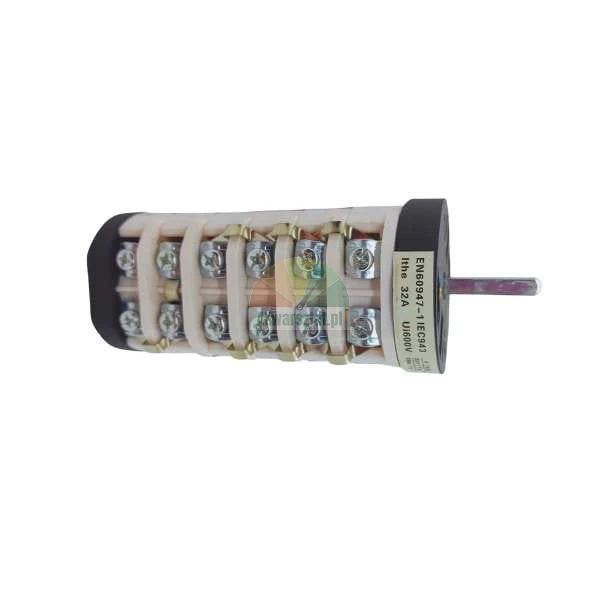

Pictured: 2-speed rotary switch - overall length approx. 10.5 cm, diameter approx. 4.5 cm, stem length approx. 2.5 cm.
Opt for tried-and-tested quality and reliability - choose our replacement rotary switch for ATH-Heinl and restore full functionality to your tyre changer!
