ATH-Heinl replacement: actuator for assembly locking arm (mushroom)

€32.42

Shipping costs are not included in the price.

Unavailable

Ask about the product

Why us?

Only real product reviews.
Secure online payments.
Hassle-free returns within 14 days.
A reliable company - we have been on the market for many years.

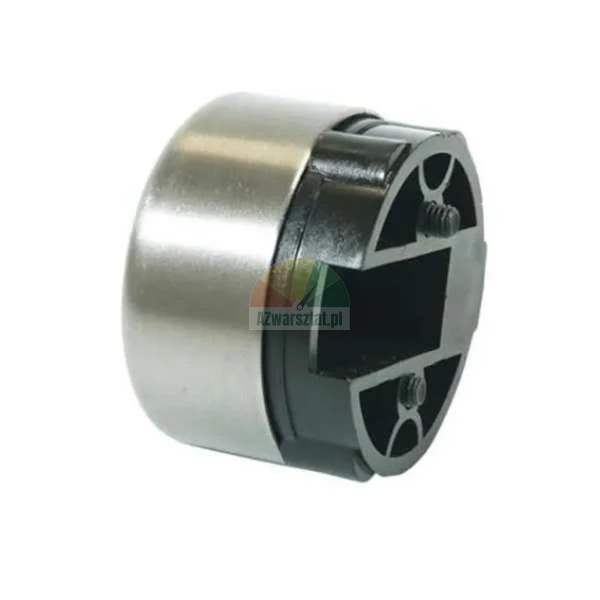

ATH-Heinl replacement: mounting tool locking arm actuator (mushroom)

High-quality replacement for the locking arm actuator designed for ATH-Heinl brand tyre changers. It is responsible for locking the arm in a fixed position, which is essential for safe and precise tyre fitting. The product ensures the stability of the unit and eliminates the risk of the arm moving during operation.

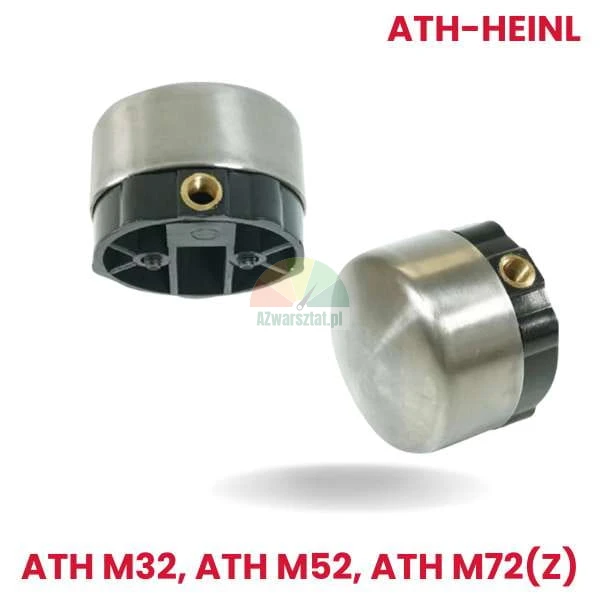

Compatible with ATH-Heinl tyre changer models:
ATH M32, ATH M52, ATH M72, ATH M72Z

Key features and benefits:

Precise workmanship - perfect match to original ATH components
Durable construction - metal housing with wear-resistant plastic
Easy installation - compatible with the factory mounting system
High-quality performance - ensures secure and durable arm locking
Cost-effective alternative - more affordable than the original, without compromising on quality

The ideal solution for garages and tyre service workshops that want to maintain the continuous operation of their tyre changers without incurring the high costs associated with original parts.

Technical specifications:

Type: mushroom
Compatibility: ATH-Heinl (models M32, M52, M72, M72Z)
Mounting hole: with brass threads

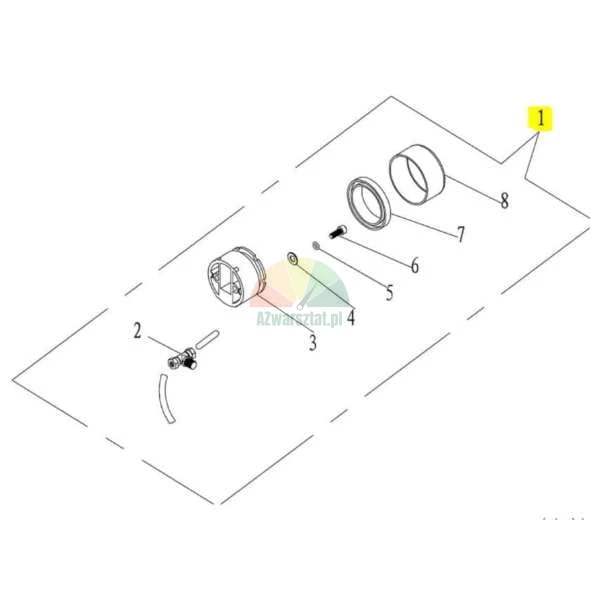

Position in the parts diagram:

The component marked as item 1 in the technical diagram - includes the actuator plug and fastening elements (items 2-8).

When you choose this replacement, you gain reliability, economy and a quick return to full operating performance - without having to invest in expensive original parts.
