ATH-Heinl replacement: Air distributor at pedal ATH 1460, ATH 1900, ATH 1980

Secure payment

30 days to return

Fast shipping

€32.67

Shipping costs are not included in the price.

Quantity

pc.

Shipping time: 24 hours

Ask about the product

Why us?

Only real product reviews.
Secure online payments.
Hassle-free returns within 14 days.
A reliable company - we have been on the market for many years.

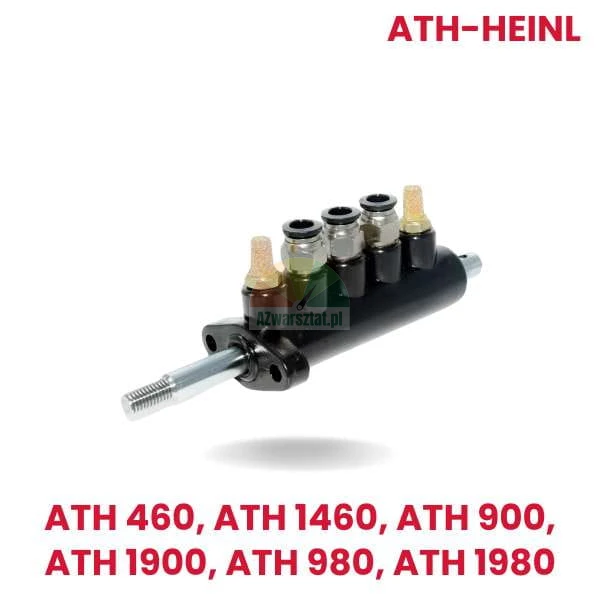

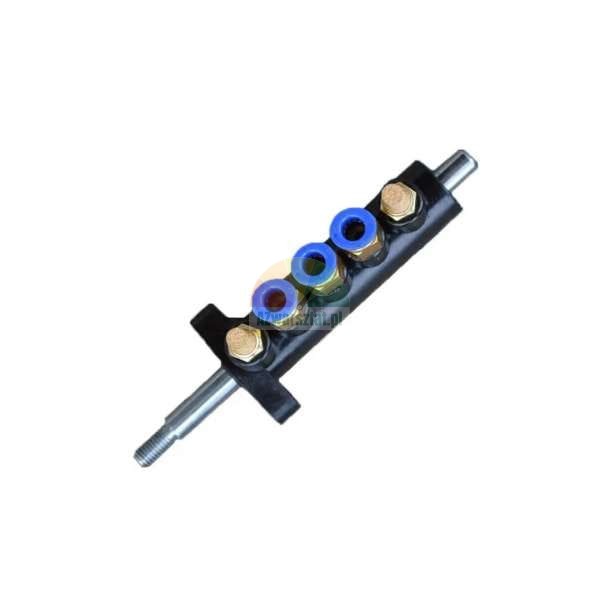

Replacement pedal air distributor for ATH-Heinl assembly machines (models 1460, 1900, 1980 and others).

High-quality replacement air distributor for ATH-Heinl assembly machines. The part is mounted at the control pedal and is responsible for the precise distribution of air to the individual sections of the machine, ensuring its correct operation.

Compatible with models: ATH 460, ATH 900, ATH 980, ATH 1460, ATH 1900, ATH 1980

Key features and benefits:

Robust construction - metal body and brass fittings guarantee durability
4 air outlets with quick-release couplings - allows several sections to be connected at the same time
Threaded ends - quick and easy to fit without the need for modification
Perfect fit - fully compatible with original ATH-Heinl systems
Efficient operation - operating pressure up to 10 bar and temperature range from -20°C to +60°C

Technical specifications:

Overall length: approx. 145 mm
Length of the threaded part of the stem: approx. 30 mm
Number of air outlets: 4
Type of couplings: pneumatic quick-release couplings (suitable for standard hoses)
Working pressure: up to 10 bar
Temperature range: -20°C to +60°C

Application: Ideal for professional garages and vulcanisation services. Indispensable in the event of failure of the original manifold - allows to quickly restore full efficiency of the assembler and minimise downtime.

Why is it worth it? 100% replacement for original ATH-Heinl systems. Guarantees reliable operation, easy installation and long service life - saving you time and money.

By choosing our replacement parts, you are investing in proven solutions that meet the highest quality standards. Check out our range and restore full functionality to your workshop equipment!
