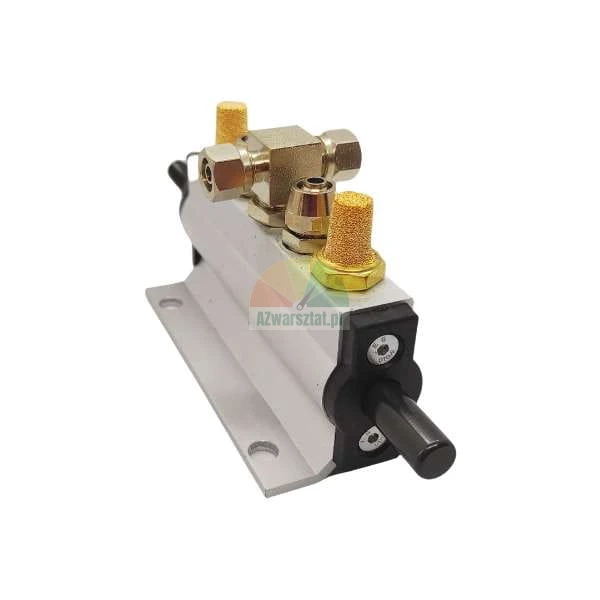

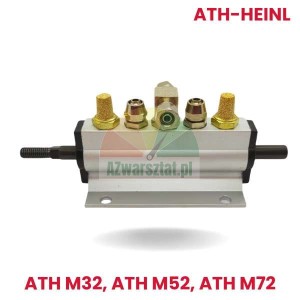

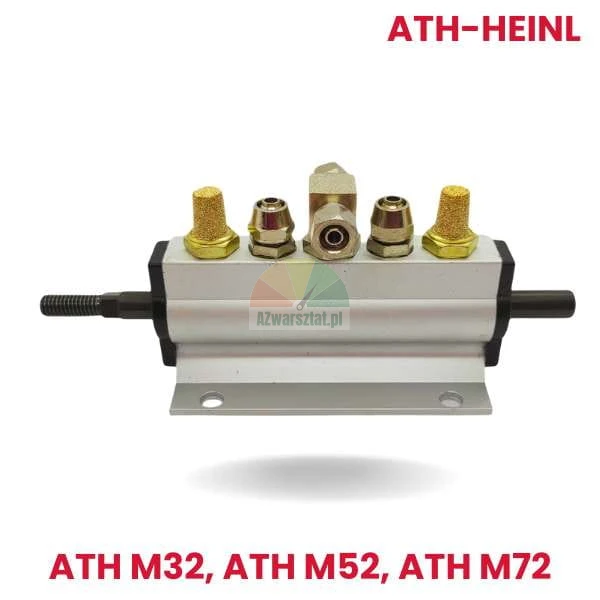

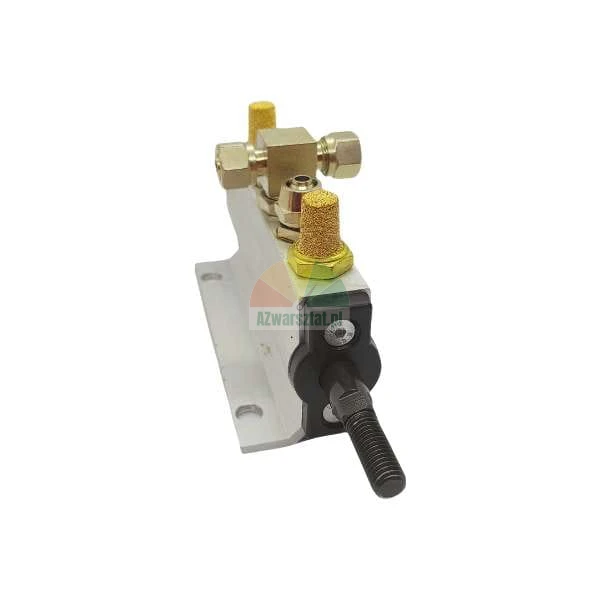

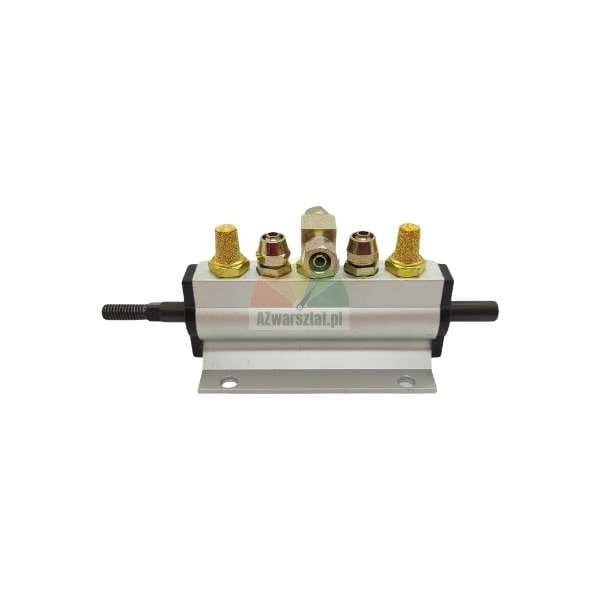

ATH-Heinl replacement: Pedal air distributor ATH M32, ATH M52, ATH M72

High-quality replacement air manifold for installation at the pedals on ATH-Heinl wheel assemblers, models: ATH M32, ATH M52, ATH M72. The product has been designed for perfect fit and reliable operation, matching the original dimensions and technical parameters of the factory part.

Ideal for workshops and service centres - quick and easy replacement without the need for modifications. Guarantees smooth operation of the assembler without downtime.

Application:

Mounted at the pedals of the ATH M32, M52, M72 assembly machines.
Responsible for the distribution of the control air
Full-value replacement for the original ATH-Heinl part

Main product features:

Compatibility: ATH-Heinl M32, M52, M72
Functionality: Efficient air distribution in the pedal system
Workmanship: Durable materials resistant to workshop conditions
Fitting: Hassle-free installation with no modifications required

Technical specifications:

Material: aluminium + brass connectors
Threads: Standard pneumatic connections

Thanks to the use of high-quality materials, the manifold ensures a long service life and resistance to intensive use in workshop conditions.

Why choose this product?

Precisely matched to the original ATH-Heinl models
Trouble-free operation and durability
Competitive price and fast availability
Technical support and professional customer service

Order today and restore the full performance of your assembly machine. Our shop is your guarantee of quality, fast delivery and expert advice.

Do you have any questions? Contact us - we will help you find the right part for your machine!
