ATH-Heinl replacement: deflector rubber ATH M32, ATH M52, ATH M72

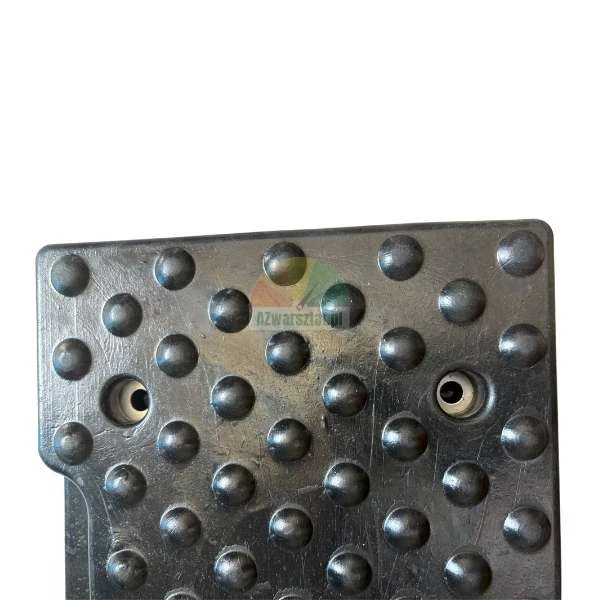

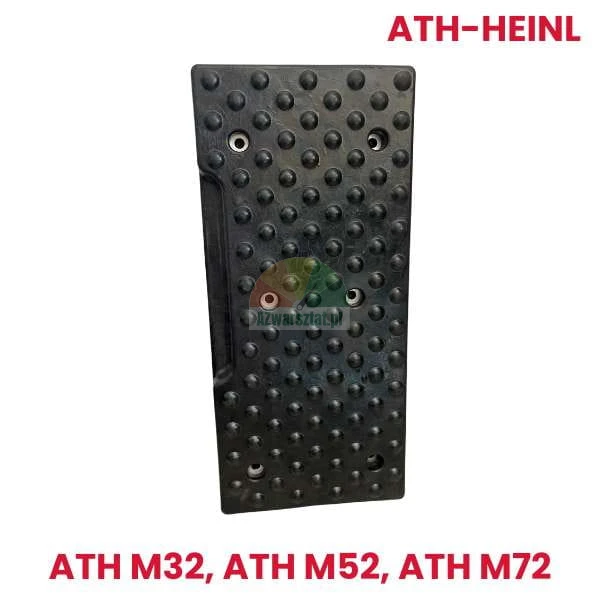

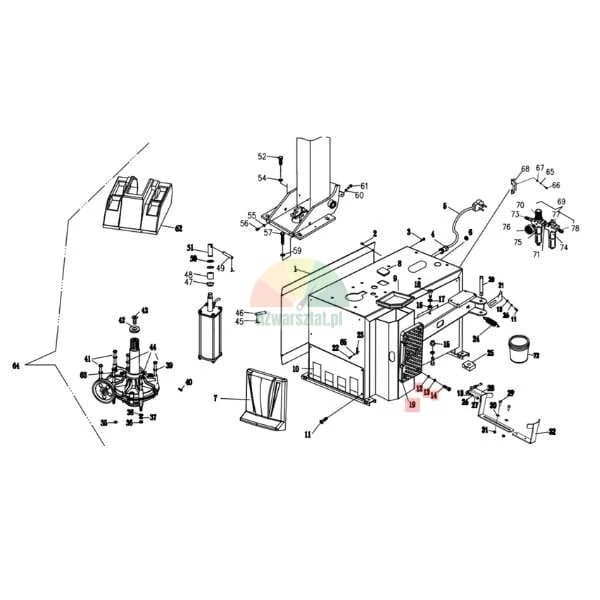

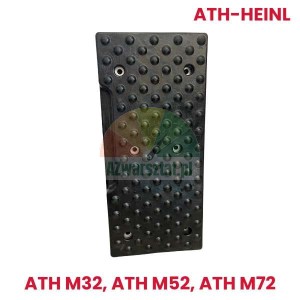

High-quality rebounder rubber for assembly machines of the renowned ATH-Heinl brand. Compatible with models: ATH M32, ATH M52, ATH M72 and ATH M72Z. It is a reliable replacement for the original part (item no. 19 in the diagram), which ensures full functionality of the device and operational safety.

Why is it worth it?
The rebound rubber effectively protects the rims and tyres from mechanical damage during operation of the fitter. Thanks to the anti-slip tabs, it ensures better grip and stability of the wheel during mounting.

Technical specifications:

Material: high-quality abrasion-resistant rubber
Dimensions: 250 mm x 130 mm
Thickness: approx. 25 mm
Mounting hole spacing: in accordance with the original
Surface texture: anti-slip tabs

Application:

Element mounted on the side wall of the fitting machine. Used as a protective cover for rims and tyres during removal and fitting. Indispensable in the daily work of tyre services and garages.

Compatible:

ATH M32
ATH M52
ATH M72
ATH M72Z

Benefits of purchase:

Precision fit to original models
Easy and quick installation
High durability and resistance to wear

Product available off -the-shelf - dispatched within 24 hours!

Why choose our shop?

We offer a wide range of spare parts for workshop machines - fitters, balancers and jacks. We guarantee professional advice, fast dispatch and proven product quality.
