ATH-Heinl replacement: Gasket for reflector actuator 460, 1460, 900, 1900, 980, 1980, M32, M52, M72, M72Z
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: ath-66
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
ATH-Heinl replacement: Bead breaker cylinder seal for tyre changers – models 460, 1460, 900, 1900, 980, 1980, M32, M52, M72, M72Z
The seal for the bead breaker cylinder is an essential component for the correct operation of tyre changers. It ensures the tightness of the hydraulic system, protecting the cylinder against leaks and pressure loss.
This product is a high-quality replacement for original ATH-Heinl parts, made of oil-resistant technical rubber rated for high pressure. Ideally suited to the following models:
- ATH 460
- ATH 1460
- ATH 900
- ATH 1900
- ATH 980
- ATH 1980
- ATH M32
- ATH M52
- ATH M72
- ATH M72Z
Technical specifications:
- Outer diameter: 89 mm
- Inner diameter: 75 mm
- Thickness: 6.8 mm
- Material: abrasion- and oil-resistant technical rubber
- Colour: black
Why choose this part? The seal ensures long service life, tightness and safe operation of the cylinder. It is a cost-effective solution for workshops that want to restore performance without replacing the entire cylinder.
Application:
This product is designed for bead breaker cylinders in ATH-Heinl tyre changers and wheel balancers. It is well suited to both professional service centres and smaller workshops.
Advantages:
- Precise fit to ATH-Heinl models
- High resistance to pressure and temperature
- Easy to fit without the need for special tools
- Available from stock – shipped within 24 hours
Product photo:

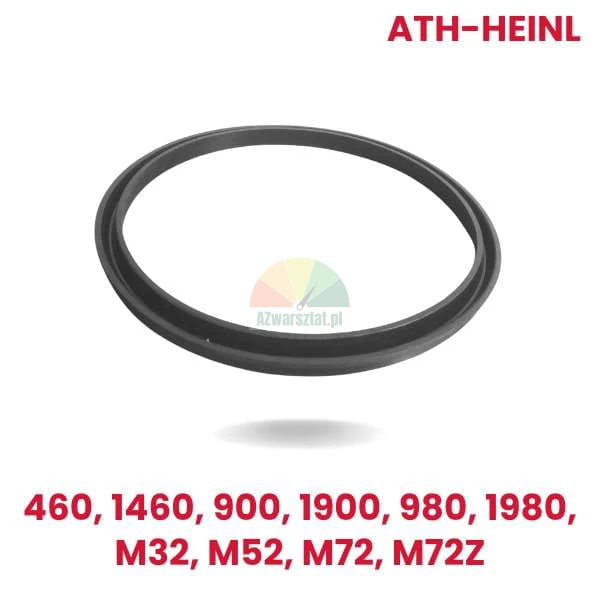

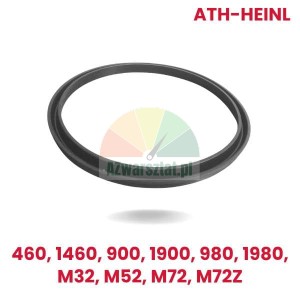

Pictured: bead breaker cylinder seal – dimensions: outer diameter 89 mm, inner diameter 75 mm, thickness 6.8 mm.
