ATH-Heinl replacement: repair kit for M32, M52, M72, M72Z bead breaker cylinder

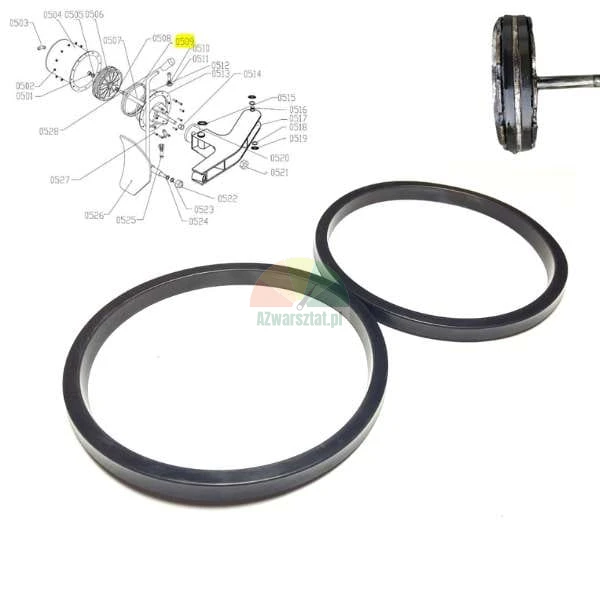

Professional repair kit for the bead breaker cylinder of ATH-Heinl tyre changers. Compatible with M32, M52, M72, M72Z models, it is a high-quality replacement for the original kit with part number 0509.

The kit contains a set of seals and components required for the reconditioning of the bead breaker cylinder - a key component of the tyre changer. It allows full functionality of the device to be restored without replacing the entire cylinder, which significantly reduces operating costs.

Application and compatibility:

ATH-Heinl M32 tyre changer
ATH-Heinl M52 tyre changer
ATH-Heinl M72 tyre changer
ATH-Heinl M72Z tyre changer

All components are made of durable materials that are resistant to wear, oil and high pressure. This ensures a long service life and reliability in daily workshop operation.

Benefits of the kit:

Versatility - fits four popular ATH-Heinl tyre changer models
Complete - includes all necessary seals and components
High quality - precise fit and resistance to intensive use
Cost-effective - more economical alternative to original parts
Easy to install - quick repair without the need for special tools

The ideal solution for workshops and tyre service centres that want to quickly and effectively restore the performance of their tyre changers, minimising downtime and costs.

Product image:

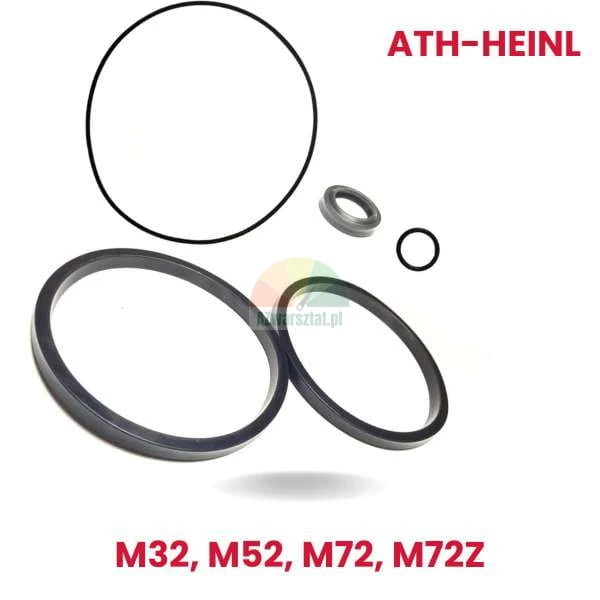

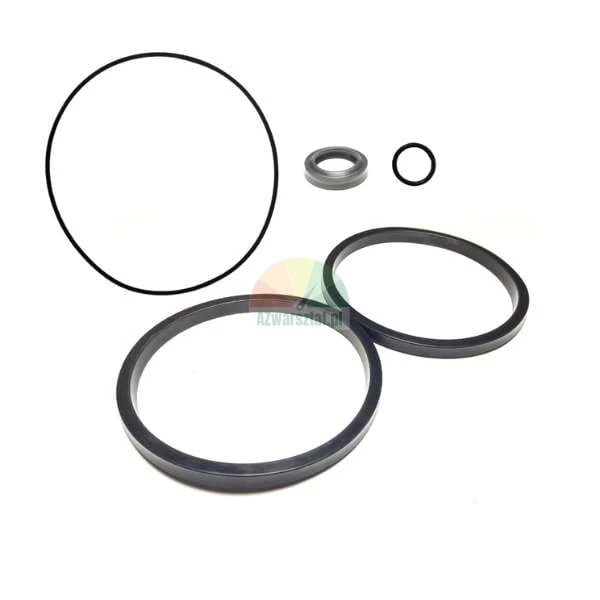

ATH-Heinl bead breaker cylinder repair kit
