Replacement ATH: Clamping/tilting cylinder cover with piston rod bore

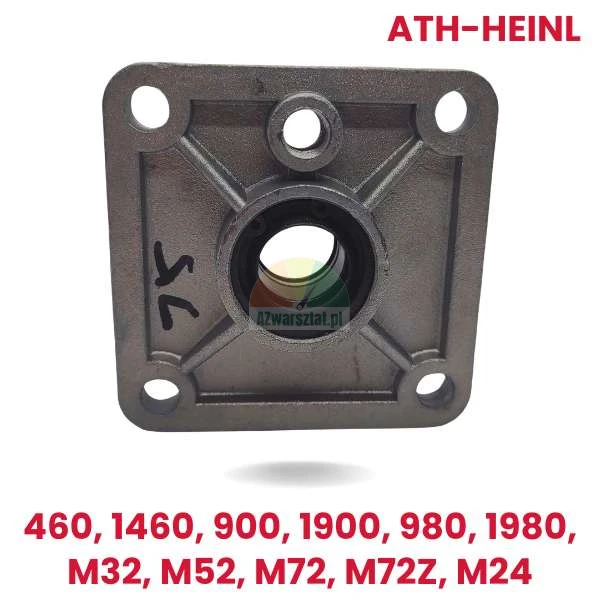

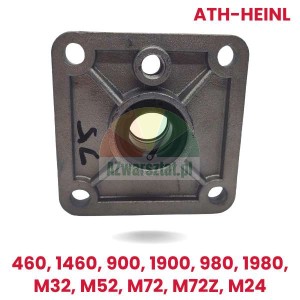

Thehigh-quality clamp ing/hingecylinder cover with piston rod hole is a robust and durable protective element for assembly machines from the renowned ATH-Heinl brand. The product is designed to be fully compatible with popular models:

ATH 460
ATH 1460
ATH 900
ATH 1900
ATH 980
ATH 1980
ATH M32
ATH M52
ATH M72
ATH M72Z
ATH M24

Made from highly wear-resistant materials, the cover provides long service life and effective protection of the actuator against mechanical damage, dust and dirt. Ideal for use on tyre changers, balancers and car jacks.

Product highlights:

Precision manufacturing - accurate castings and careful surface finish
Central piston rod bore - ensures proper actuator operation
4 mounting holes - quick and easy installation in place of the original part
Perfect fit to ATH factory dimensions
Compatible with many models - widely used in workshops

This replacement is an excellent alternative to the original ATH-Heinl part, offering comparable quality at a much more attractive price. With it, you can quickly restore full functionality to your machine without incurring high costs.

Dimensions (based on photo):

Outside dimension (square): approx. 100 mm x 100 mm
Centre hole diameter (for piston rod): approx. 22 mm
Mounting hole spacing (centre to centre): approx. 80 mm

Note: Before purchasing, we recommend comparing the dimensions with your part to confirm compatibility.

Product photo:

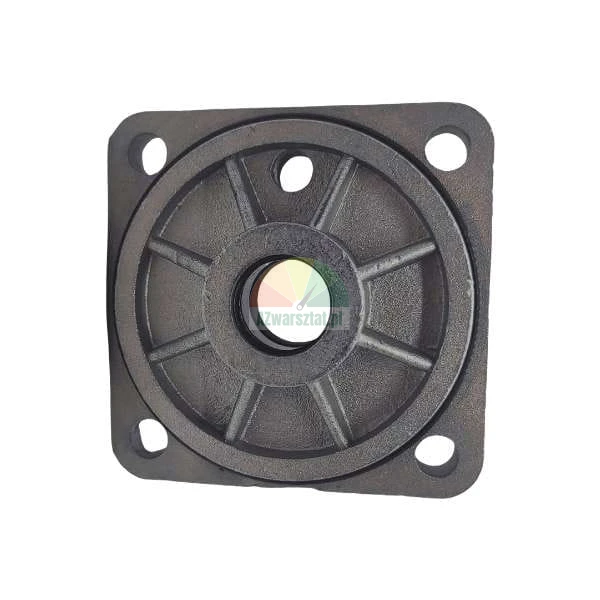

Pictured is a clamping/swivel cylinder cover with a hole for the piston rod. Four mounting holes and a central hole with a diameter of approximately 22 mm can be seen. The outer dimension of the cover is approx. 100 mm x 100 mm.

Osłona cylindra zaciskowego ATH - zdjęcie produktu

By choosing our replacement, you are assured of quality, durability and compatibility - all at a competitive price and with fast delivery. This is the ideal solution for professional garages and car service workshops.
