ATH replacement: Pressure triangle for assembly aid arm AL320, A34
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Product code: ath-15
Share the product card
Ask about the product
The personal data controller is Graf-Art Sławomir Kulbida. We process it to respond to the inquiry. More information about the processing of personal data can be found in the privacy policy.
ATH replacement: Pressure triangle for mounting aid arm AL320, A34
High-quality pressure triangle for the support arm of the ATH AL320 and ATH A34 tyre changers. A reliable replacement for the original part, it provides stabilisation and secure tyre pressing during mounting and demounting, increasing operator comfort and precision.
The pressure triangle is responsible for the correct operation of the auxiliary arm - its stability translates directly into safety and efficiency in the workshop.
Key product features:
- Compatibility: ATH AL320, ATH A34
- Material: tough plastic, resistant to wear and mechanical damage
- Precise workmanship: ensures durability, stability and perfect fit
- Easy fitting: fits without modification
- Dimensions: as per original - see product image
Why is it worth it?
- Economical alternative to ATH original parts
- Durability and reliability in daily workshop operation
- Hassle-free replacement - quick installation and full functionality
Application:
Product designed for tyre changers with auxiliary arm:
- ATH AL320
- ATH A34
With this replacement, your tyre changer will regain its full functionality - without having to invest in expensive original parts.
Availability: Immediately available - dispatched within 24 hours!

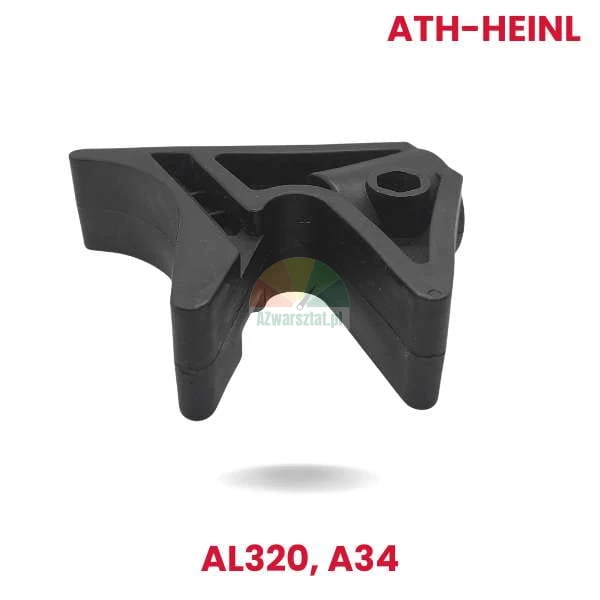

Product image:
The image shows a pressure triangle with dimensions in line with the original - a perfect fit for the auxiliary arm of the ATH AL320 and A34 tyre changers.
