Replacement ATH-Heinl: Repair kit for the striker cylinder of the 460, 1460, 900, 1900, 980, 1980 assembly machines

Secure payment

30 days to return

Fast shipping

€30.32

Shipping costs are not included in the price.

Quantity

pc.

Shipping time: 24 hours

Ask about the product

Why us?

Only real product reviews.
Secure online payments.
Hassle-free returns within 14 days.
A reliable company - we have been on the market for many years.

Replacement ATH-Heinl: Repair kit for the striker cylinder of the 460, 1460, 900, 1900, 980, 1980 assembly machines

High-quality repair kit for the rocker cylinder, dedicated to assembly machines of the renowned ATH-Heinl brand. It is the ideal choice for workshops which value reliability, durability and precision of their equipment.

The set includes a set of gaskets and O-rings, which effectively restore the tightness and efficiency of the rebound actuator. Thanks to the use of tough elastomers and NBR rubber, the components are resistant to abrasion, oil, grease and high temperatures.

Product advantages:

Precise fit - the replacement is ideally suited to ATH-Heinl rebounder actuators.
Resistant to damage and chemical agents - guaranteed long service life.
Easy installation - quick replacement minimises workshop downtime.
Trouble-free operation - effectively prevents leakage and actuator failure.

Compatibility:

ATH-Heinl 460
ATH-Heinl 1460
ATH-Heinl 900
ATH-Heinl 1900
ATH-Heinl 980
ATH-Heinl 1980

Zestaw naprawczy siłownika zbijaka ATH-Heinl

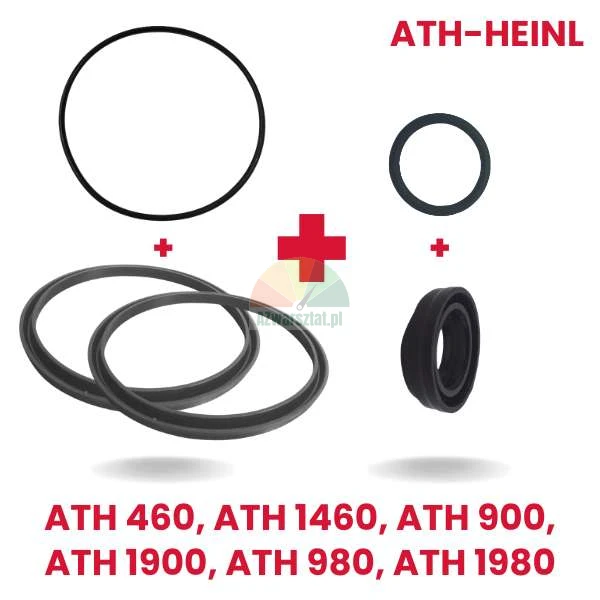

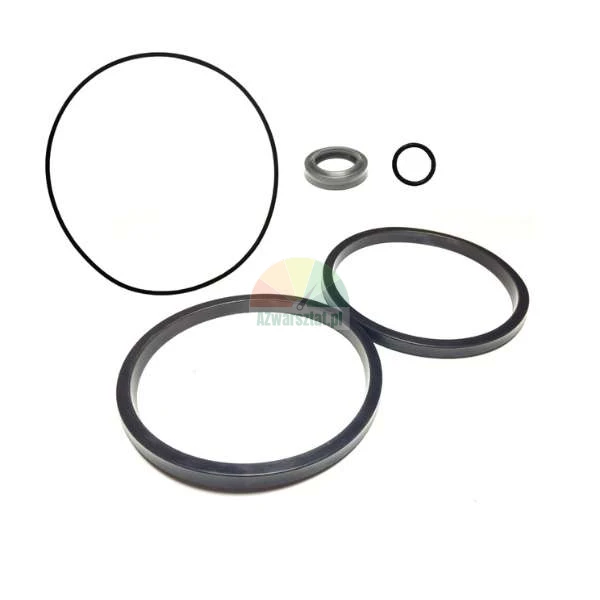

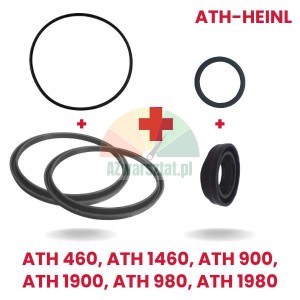

The set includes:

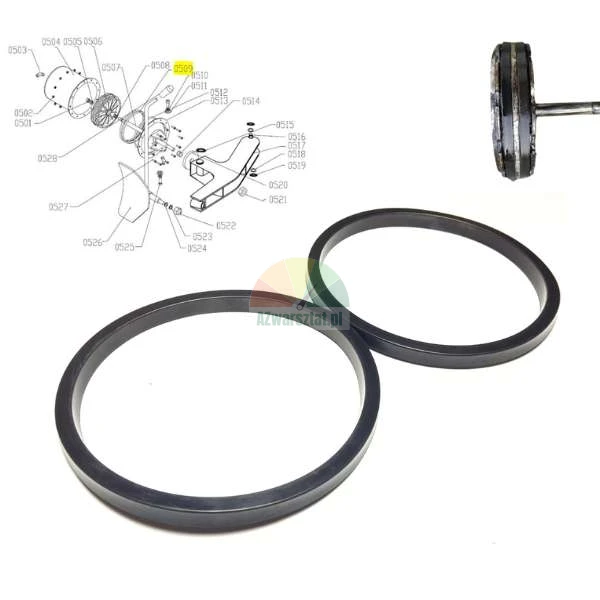

186x12x9 gasket - durable elastomer, provides excellent sealing and protection of the piston from contamination.

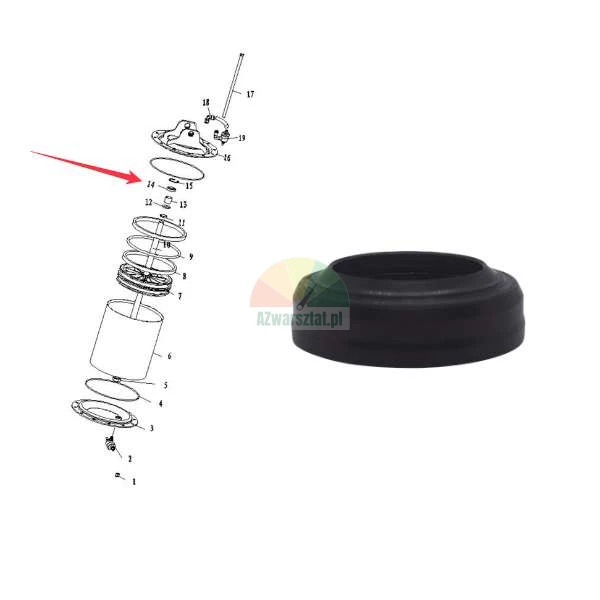

Piston rod V-gasket - precise fit, abrasion and mechanical damage resistance.

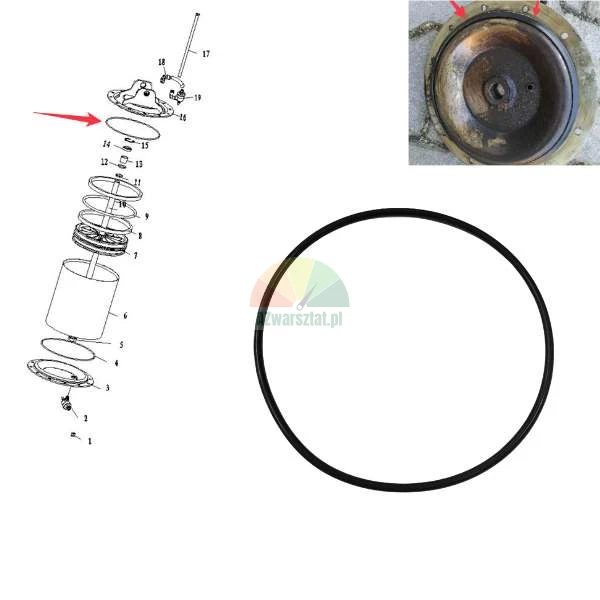

O-ring gasket 190mm x 5mm - NBR rubber, resistant to oils and high temperatures, guarantees cylinder tightness.

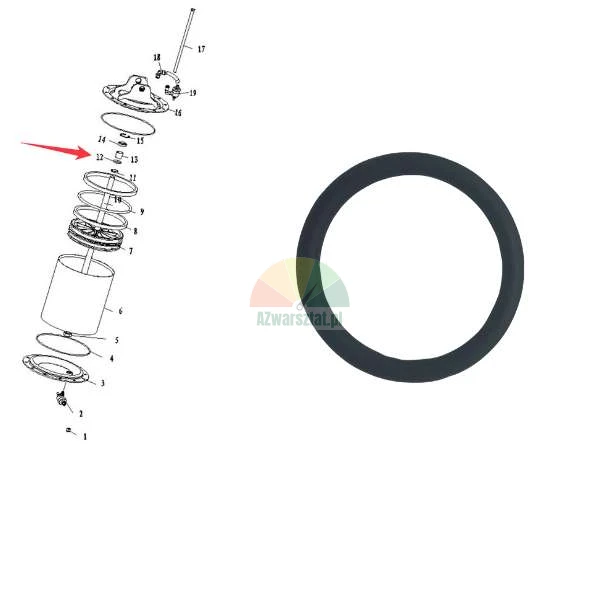

Pneumatic cylinder O-ring - ensures tightness and proper operation of the rebound cylinder.

When you choose this repair kit, you are investing in the reliability and long-term performance of your assembler. It's a solution to avoid costly breakdowns and downtime.

Do you have questions about compatibility or installation? Our expert team is here to help and offer technical advice!

Opt for proven replacements - choose quality that pays off!

Manufacturer

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

+48534920100 slawek@graf-art.pl

Importer

LIVRE RAPIDEMENT SPÓŁKA Z OGRANICZONĄ ODPOWIEDZIALNOŚCIĄ

Osiedle Mieszka I-go 4/46

26-340 Drzewica, Poland

+48 781 455 169 info@1688poland.com
