Replacement steel mounting foot ATH 1460, ATH 1900, ATH 1980, M52, M72

Secure payment

30 days to return

Fast shipping

€32.67

Shipping costs are not included in the price.

Quantity

pc.

Shipping time: 24 hours

Ask about the product

Why us?

Only real product reviews.
Secure online payments.
Hassle-free returns within 14 days.
A reliable company - we have been on the market for many years.

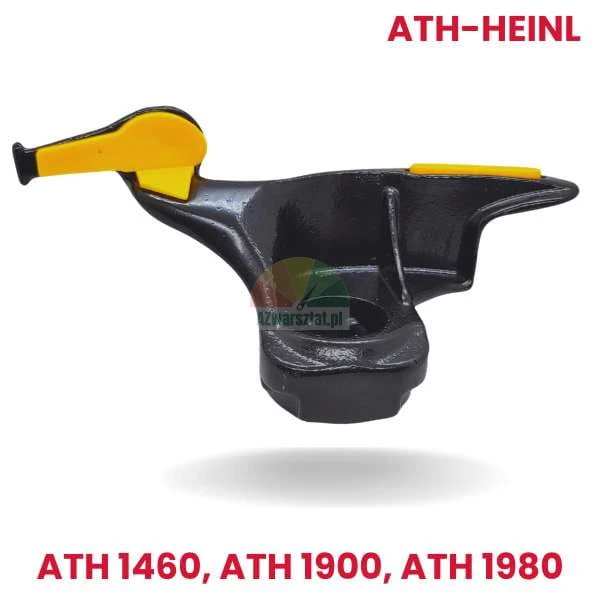

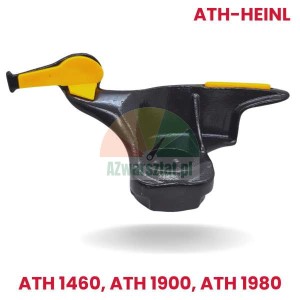

Steel mounting shoe for ATH-Heinl assembly units - replacement

High-quality steel mounting feet for ATH-Heinl assembly units. It is a solid replacement for the original mounting foot, ensuring durability, stability and precision during operation. Made of robust steel, it guarantees a long service life and resistance to mechanical damage and corrosion.

Main advantages:

Stability: Robust construction ensures the machine is securely seated, which translates into precision and safe working.
Durability: Made of high quality steel, resistant to wear and damage.
Ease of installation: Simple installation and quick replacement allow for a smooth fit to the machine.
Perfect fit: Compatible with a wide range of ATH-Heinl assembly machine models.

Compatible with:

ATH 460
ATH 1460
ATH 900
ATH 1900
ATH 980
ATH 1980
ATH M32
ATH M52
ATH M72

Dimensions:

Width: approx. 150 mm
Length: approx. 210 mm
Mounting hole diameter: approx. 28 mm

Thanks to its precision workmanship and high-quality materials, the mounting shoe ensures reliability and a long service life, making it an excellent choice for vulcanisation workshops and car repair shops.

Manufacturer

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

+48534920100 slawek@graf-art.pl

Responsible person in the EU

Graf-Art Sławomir Kulbida

ul. Bolesława Chrobrego 38/5

59-700 Bolesławiec, Poland

534920100 slawek@graf-art.pl
